Parts List for JVM-836

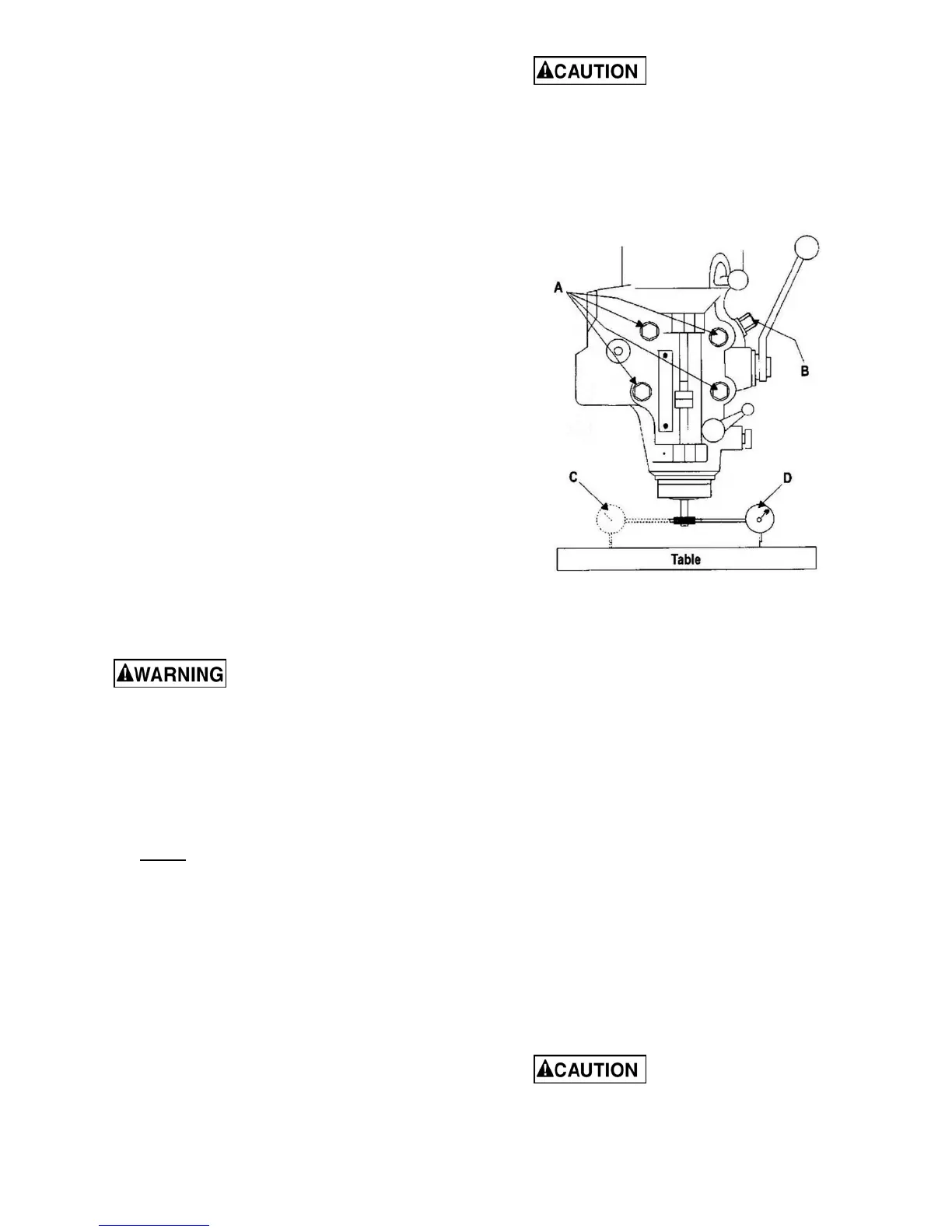

Head Assembly
Note: Some index numbers in this parts list havetwo part numbers. If your milling machine has
the serial number 0040050 and higher, use the part numbers ending with a 'T'. If your milling
machine has the serial number xxx0049 and lower,use the part numberwithout the letter "T".
Index Part
No. No.
Description
Size
Qty.
1 JVM836-01 Castle Nut -.. M12 1
2 JVM836-02 Lock Nut 1
3 TS-1523041 Hex Socket Cap Screw M6x12 3
4. JVM836-04 Cover 1
5 JVM836-05 Taper Sleeve 1
6 JVM836-06 Spring 1
7 JVM836-07 Transmission Sleeve 1
8 -.JVM836-08 Worm Gear 1
JVM836-08T Worm Gear -.. -.. 1
9 JVM836-09 Spring Washer M4 3
10 JVM836-10 Cross Round Head Screw M4x16 3
14 JVM836-14 Shaft 1
JVM836-14T Shaft 1
15 JVM836-15-.. Key 5x5x20 .................. 1
16 JVM836-16 Cross Flat Head Screw M5x6 1
17 JVM836-17 Whitney Key 1
18 JVM836-18 Volume Spring"'"'''''''''''''''''''''''''''''''''''''''''''' 1
. JVM836-18T Volume Spring 1
19 JVM836-19 Spring BrackeL 1
21 TS-1524011 Set Screw M8x8 1
22 TS-1514021 Hex Socket Cap Screw M6x15 4
2~ JVM836-23 Transmission Sleeve 1
24 TS-1524011 Set Screw M8x8 1
25 JVM836-25 Round Pin 1
26 JVM836-26 Handle Base 1
JVM836-26T Handle Base 1
JVM836-26TA New HandleAssembly (Include:#26,30,31) 1
27 JVM836-27 Steel Ball 06 1
28 JVM836-28 Spring 1
29 TS-1524011 Set Screw M8x8 1
30 JVM836-30 Rocket Rod 1
JVM836-30T Rocket Rod . 1
31 JVM836-31 Knob 1
JVM836-31T Knob . 1
32 JVM836-32 FlatWasher M8 1
33 JVM836-33 Spring Washer M8 1
34 JVM836-34 Hex Socket Cap Screw M8x16 1
35 JVM836-35 Worm 1
JVM836-35T Worm 1
36 JVM836-36 Whitney Key 4x4x16 1
37 JVM836-37 Worm Shaft 1
38 JVM836-38 Full DogPointSetScrew M5x6 1
39. TS-1522011 Set Screw M5x6 1
40 JVM836-40 Bushing 1
12
