Jet JWBS-15-3 - JWBS-15 Guide Bar Bracket Assembly - Exploded View; JWBS-15 Guide Bar Bracket Assembly - Parts List

39

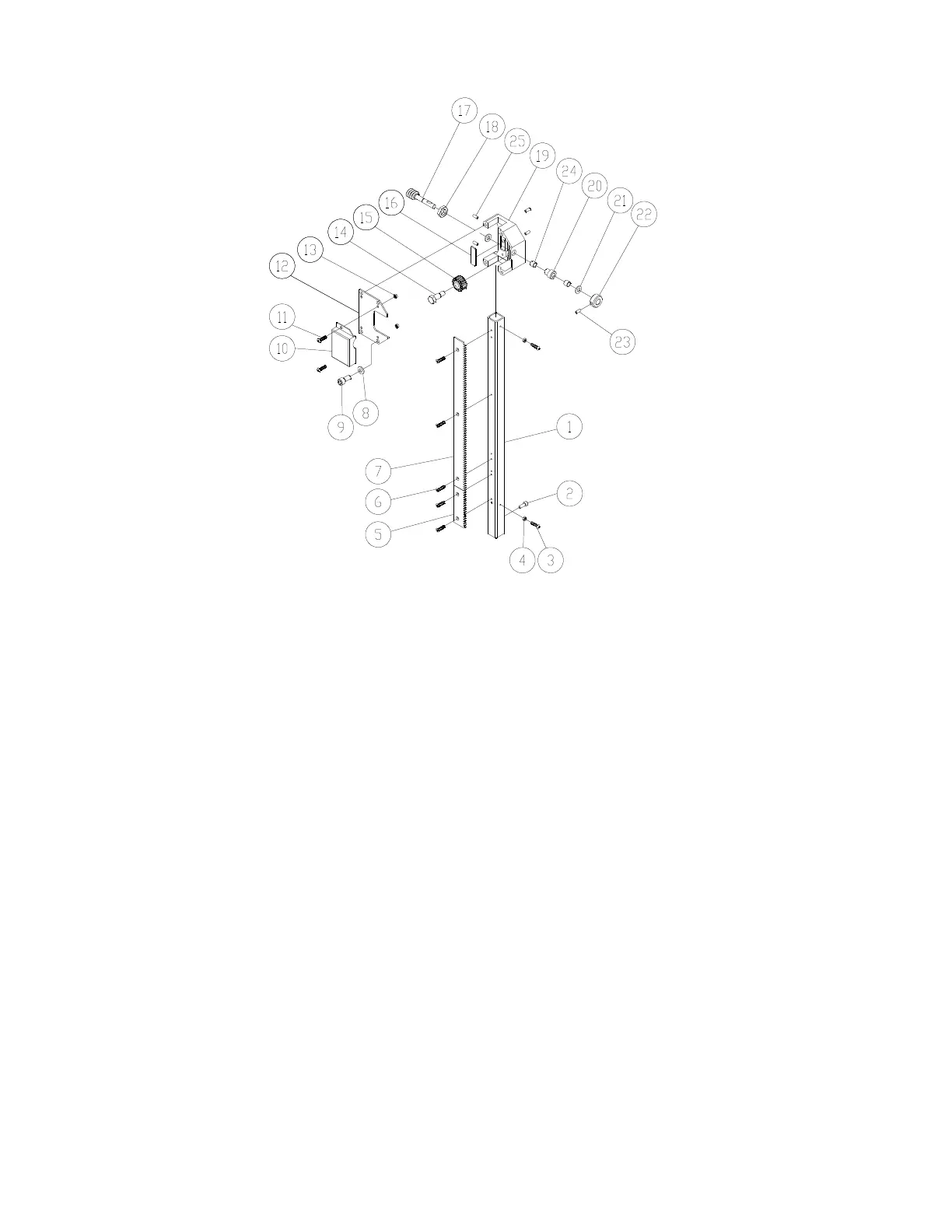

13.4.1 JWBS-15 Guide Bar Bracket Assembly – Exploded View
13.4.2 JWBS-15 Guide Bar Bracket Assembly – Parts List
Index No Part No Description Size Qty
.................. JWBS15-1120 ........... Guide Bar Bracket Assembly (#1 thru 25) ............... ........................................
1 ................ JWBS15-1120-401 .... Guide Bar................................................................. ...................................... 1
2 ................ TS-1503021 .............. Socket Head Cap Screw ......................................... M6x10 ........................... 2
3 ................ TS-1532032 .............. Pan Head Screw ...................................................... M4x10 ........................... 2
4 ................ TS-1540021 .............. Nut ........................................................................... M4 ................................. 2
5 ................ PM1500-091-08 ........ Guide Bar Rack (Short) ........................................... ...................................... 1
6 ................ TS-2284081 .............. Phillips Flat Head Machine Screw ........................... M4x8 ............................. 5
7 ................ PM1500-091-20 ........ Guide Bar Rack (Long) ............................................ ...................................... 1
8 ................ TS-2361081 .............. Spring Washer ......................................................... M8 ................................. 4
9 ................ TS-1504031 .............. Socket Head Cap Screw ......................................... M8x16 ........................... 4
10 .............. PM1500-091-04 ........ Cover ....................................................................... ...................................... 1
11 .............. TS-1534041 .............. Pan Head Screw ...................................................... M5x10 ........................... 2
12 .............. PM1500-091-09 ........ Cover ....................................................................... ...................................... 1
13 .............. TS-1540031 .............. Hex Nut .................................................................... M5 ................................. 2
14 .............. PM1500-091-10 ........ Fixed Pin .................................................................. ...................................... 1
15 .............. PM1500-091-11 ........ Gear ......................................................................... ...................................... 1
16 .............. PM1500-091-12 ........ Fixed Plate ............................................................... ...................................... 1
17 .............. PM1500-091-13 ........ Worm Shaft .............................................................. ...................................... 1
18 .............. JWBS15-1120-418 .... Nut ........................................................................... ...................................... 1
19 .............. PM1500-091-15 ........ Guide Bracket .......................................................... ...................................... 1
20 .............. PM1500-091-18 ........ Bushing .................................................................... ...................................... 1
21 .............. PM1500-091-25 ........ Fiber Washer ........................................................... ...................................... 2
22 .............. PM1500-091-19 ........ Collar ....................................................................... ...................................... 1
23 .............. TS-1522011 .............. Set Screw ................................................................ M5x5 ............................. 2
24 .............. JWBS15-1120-424 .... Bushing Bearing ...................................................... DU 10x12 ...................... 2
25 .............. JWBS15-1120-425 .... Plastic Nylon Set Screw........................................... M7x10 ........................... 4
