63

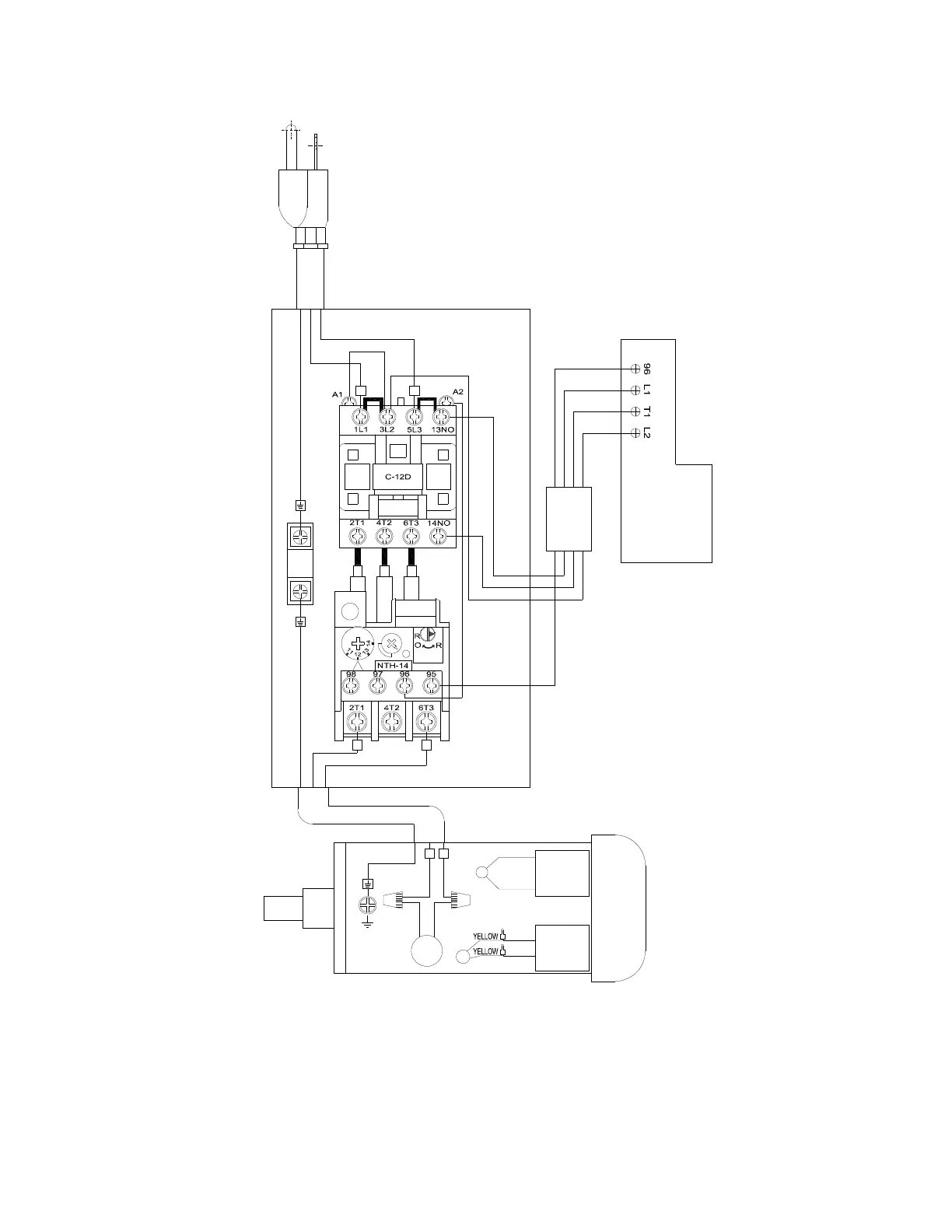

14.2 Connections for 3HP (models 714650, 714750, 714800)
CONTROL PANEL
RUN
CAPACITOR
60uF
300VAC
START
CAPACITOR
300MFD
250VAC
POWER CORD
6-15P
1~ 230V
230V
WHITE
BLACK
GROUND
U V
SR
VU
Set at 12A
MAGNETIC
SWITCH
ASSEMBLY
RED
YELLOW
BLACK
RED
BLACK
BLACK
WHITE
GREEN
WHITE
BLACK
GREEN GREEN
WHITE
BLACK
BLACK
BLACK
WHITE
YELLOW
RED
BLACK
RED
RED
RED
