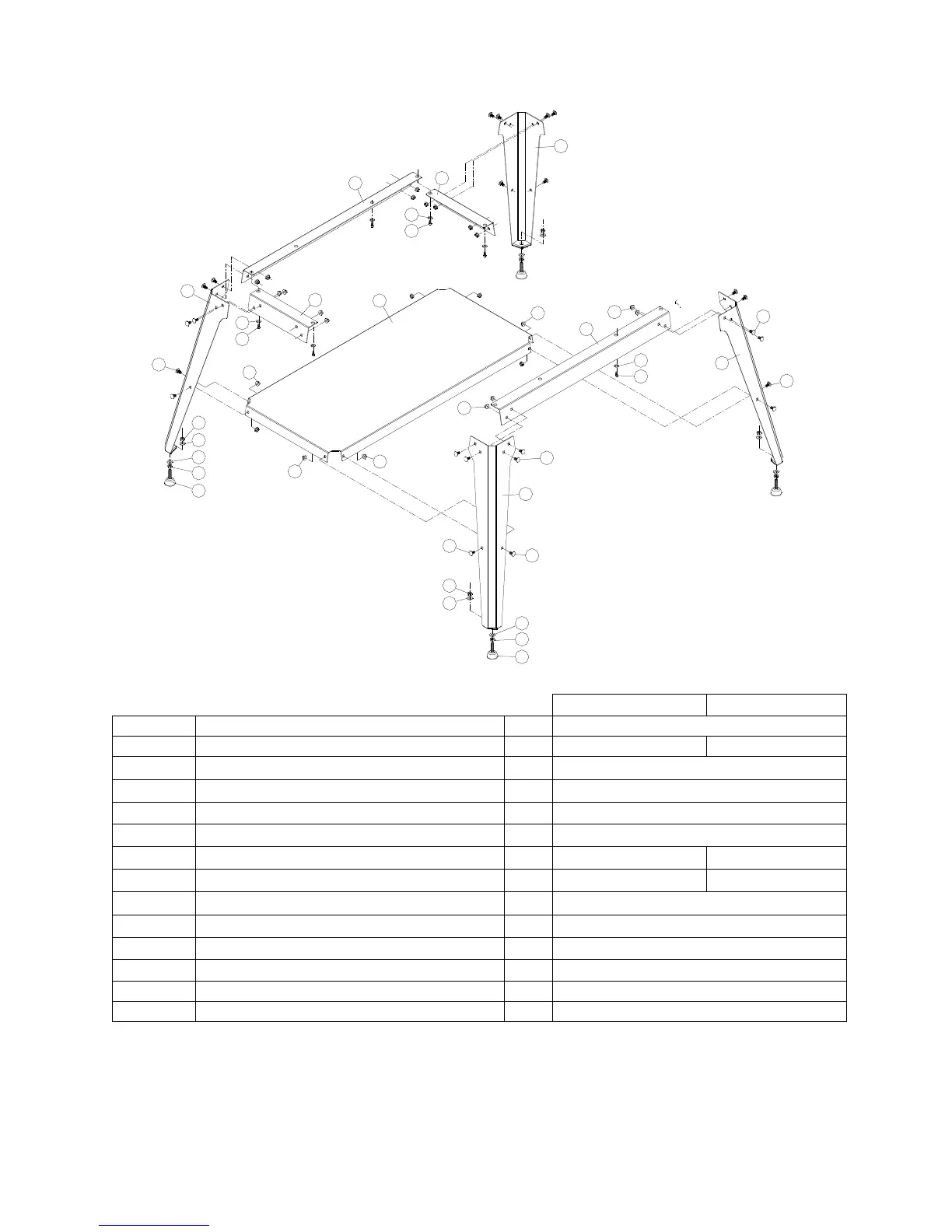

Open Stand Assembly for JWDS-2244/-2550 – Exploded View and Parts List
JWDS-2244 JWDS-2550
Index No. Description Qty. Part No.
Open Stand Assembly 1 723540OS 723550OS
1 Leg 4 JWDS1632-301
2 Short Rail, 11-3/4”L 2 JWDS2244-302
3 Flat Washer 8.3 x 18 x 1.5T mm 6 TS-1550061
4 Socket Head Cap Screw M8-1.25P x 16L 6 TS-1504031
5 Long Rail 2 JWDS2244-305 JWDS2550-305
6 Shelf 1 JWDS2244-306 JWDS2550-306
7 Flanged Lock Nut M8-1.25P 24 JWDS1632-307
8 Carriage Bolt M8-1.25P x 16L 24 JWDS1632-308
9 Hex Nut M10-1.5P 8 TS-1540071
10 Flat Washer 10x20x2.0T mm 8 TS-1550071
11 Leveling Foot 4 JWDS1632-311
Hardware Package (includes #7-11) JWDS2244-HP
Replacement Parts
To order parts or reach our service department, call 1-800-274-6848 Monday through Friday, 8:00 a.m. to 5:00
p.m. CST. Having the Model Number and Serial Number of your machine available when you call will allow us to
serve you quickly and accurately. Non-proprietary parts, such as fasteners, can be found at local hardware stores,
or may be ordered from JET. Some parts are shown for reference only, and may not be available individually.
