Make all machine adjustments or maintenance with the
machine unplugged from the power source.
3.3 Remaining hazards
When using the machine according to regulations some
remaining hazards may still exist.
The rotating workpiece can cause injury.
Workpieces that are inhomogeneous or weak can explode
when being processed due to centrifugal force.
Only process selected woods without defects.
Unbalanced workpieces can be hazardous.
Injuries can occur when feeding tooling, if tool supports are
not correctly adjusted or if turning tools are blunt.
Risk of kickback. The tooling is caught by the rotating
workpiece and thrown back to the operator.
Thrown workpieces and workpiece parts can lead to injury.
Dust and noise can be health hazards. Be sure to wear
personal protection gear such as safety goggles and dust
mask. Use a suitable dust collection system. Work in a well-
ventilated area.
The use of incorrect mains supply or a damaged power cord
can lead to injuries caused by electricity.
4. Machine specifications
4.1 Machine description

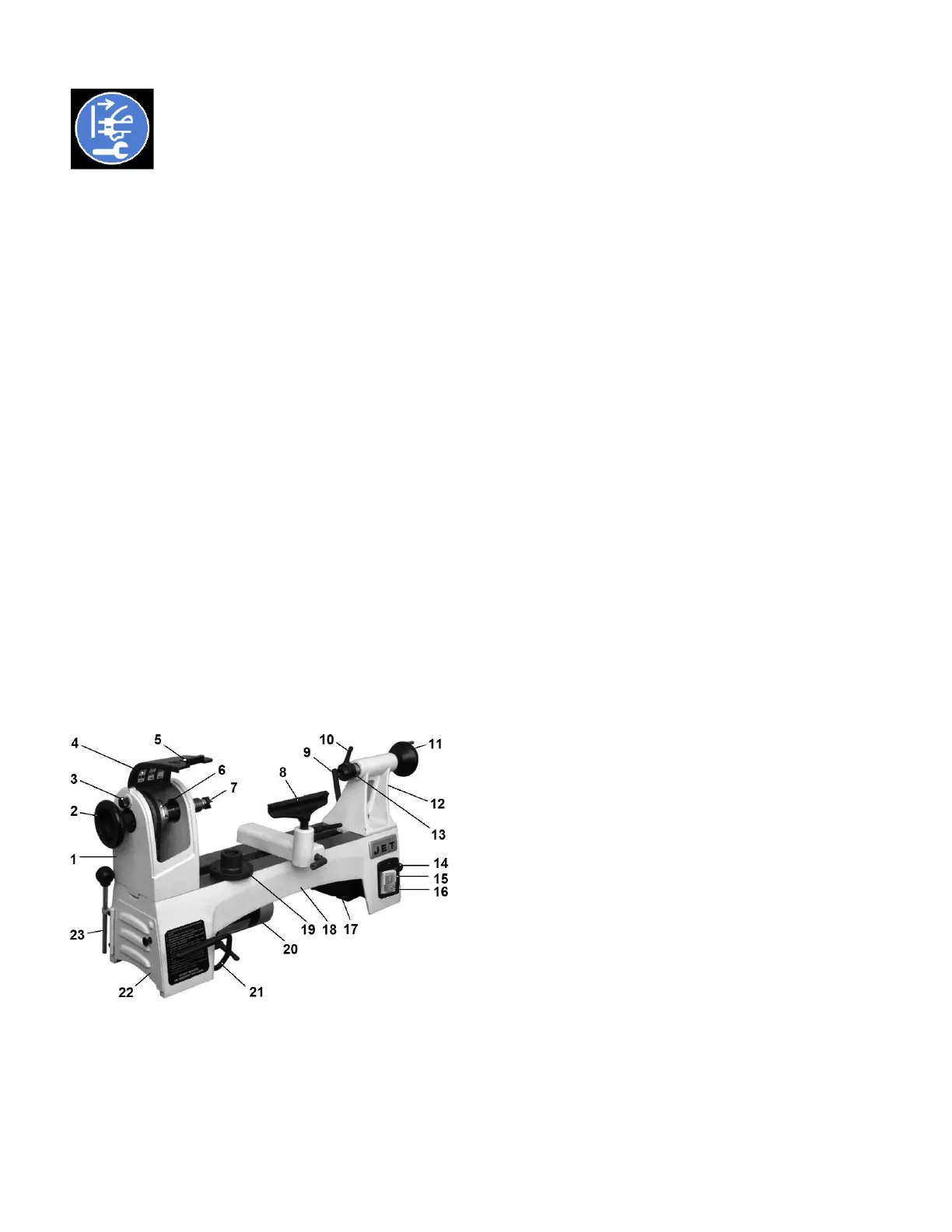

Fig 1 (JWL-1015VS shown)
1 Headstock
2 Spindle handwheel
3 Index pin
4..Speed chart
5..Upper pulley cover
6 Spindle pulley
7 Spur centre
8 Tool rest
9 Tailstock locking handle
10 Quill locking handle
11 Tailstock handwheel
12..Tailstock
13 Live centre
14 Variable speed control knob (JWL-1015VS only)
15 LED light display (JWL-1015VS only)
16 On/Off switch
17..Controller assembly
18 Bed
19 Face plate
20 Motor
21 Belt tension handle
22 Lower pulley cover
23 Knockout rod
4.2 Technical data
Swing over bed 254mm
Swing over tool rest base 186mm
Centre distance 385mm
Spindle nose M33x3,5 DIN 800
Headstock spindle taper MT 2
Spindle indexing 24x15°
Spindle hole diameter 9,5mm
Tailstock spindle taper MT 2
Tailstock hole diameter 9,5mm
Tailstock ram travel 50mm
Centre above workbench 297mm
Bed width 127mm
Overall (LxWxH) 885x300x370mm
Mains 1~230V, PE, 50Hz
Motor power 0.37kW (0.5 HP)
Reference current 2.5 A
Extension cord (H07RN-F): 3x1.5mm²
Installation fuse protection 10A
Isolation class I
JWL-1015:
Number of spindle speeds 6
400, 700, 1000, 1500, 2200, 3300 rpm
Net weight 35 kg
JWL-1015VS:
Number of mechanical speeds 3
Spindle speed range L 200 - 1050 rpm
Spindle speed range M 300 - 1750 rpm
Spindle speed range H 600 - 3600 rpm
Net weight 33 kg
4.3 Noise emission
Acoustic pressure level
(EN ISO 11202):
Idling LpA 67,4 dB(A)
In operation LpA 76,5 dB(A)
To Next Page
