WARNING
Read and understand the entire contents of this manual before attempting assembly or
operation!
Failure to comply may cause serious injury!
Contents of the Shipping Container
1 Planer
1 Chip Deflector
1 Accessory Package:
1 Handle Assembly
1 Knife Setting Gauge
4 8mm x 50 Hex Socket Cap Screws
1 6mm x 16 Hex Socket Cap Screw
1 6mm Lock Washer
1 Owner’s Manual
1 Warranty Card
Tools Included for Assembly and
Adjustment
1 8/10mm Box Wrench
1 Cross Point/Flat Blade Combination
Screwdriver
1 4mm Hex Wrench
1 5mm Hex Wrench
1 6mm Hex Wrench
Optional Accessories Available:
708500: Dust Hood with 4” Hose Adapter
708523: Stand
708813: Double Edged Knives
Assembly
1. Remove any packing material from in and
around the planer.

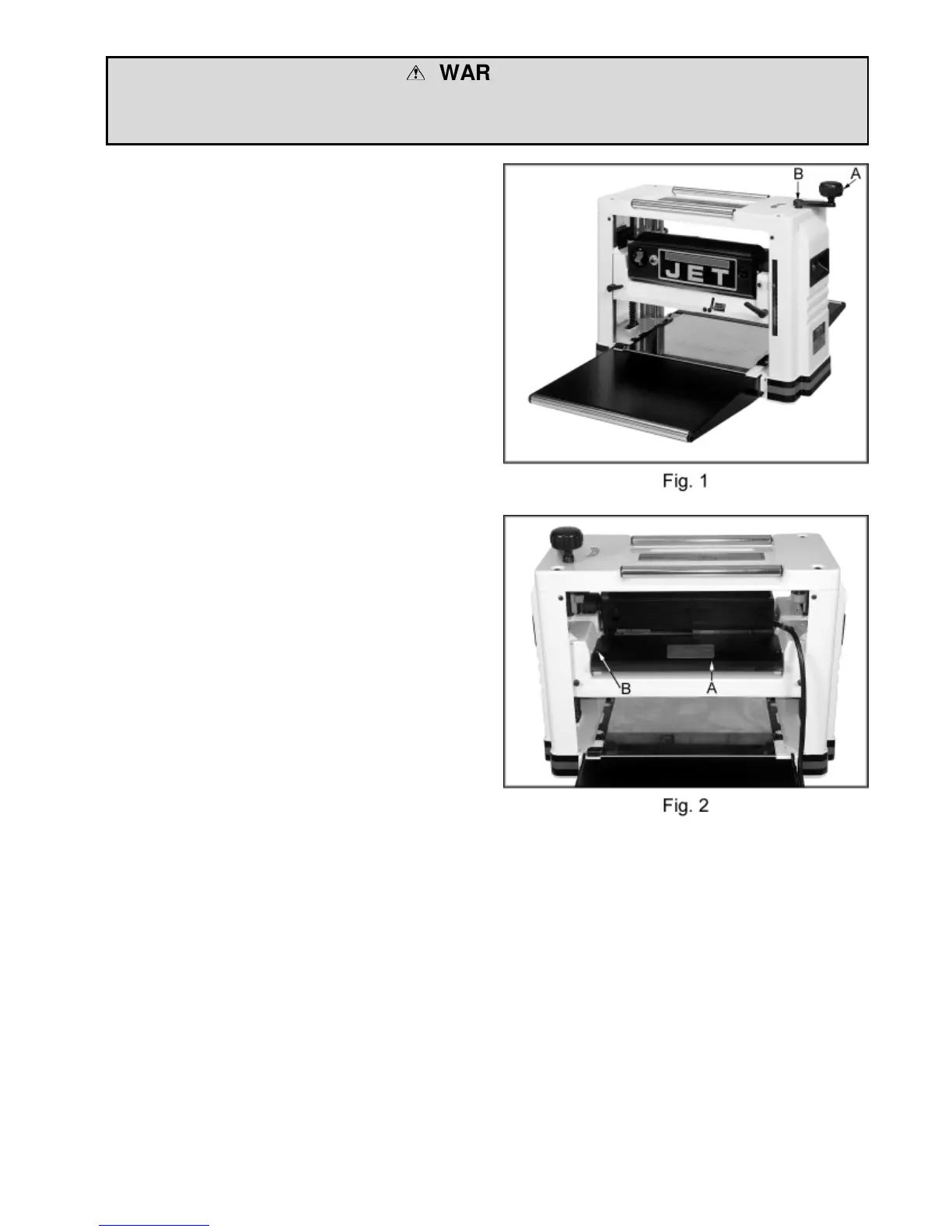

2. Attach the handle assembly (A, Fig. 1) to
the planer with one 6mm x 16 hex socket
cap screw (B, Fig. 1) and one 6mm lock
washer.
3. Lower the head assembly by using the
handwheel assembly.
4. Insert the chip deflector (A, Fig. 2) into
position and fasten to the upper frame
assembly with two M5 x 30mm screws (B,
Fig. 2) and two M5 lock washers.
5. Tighten both screws firmly with a hex
wrench.
