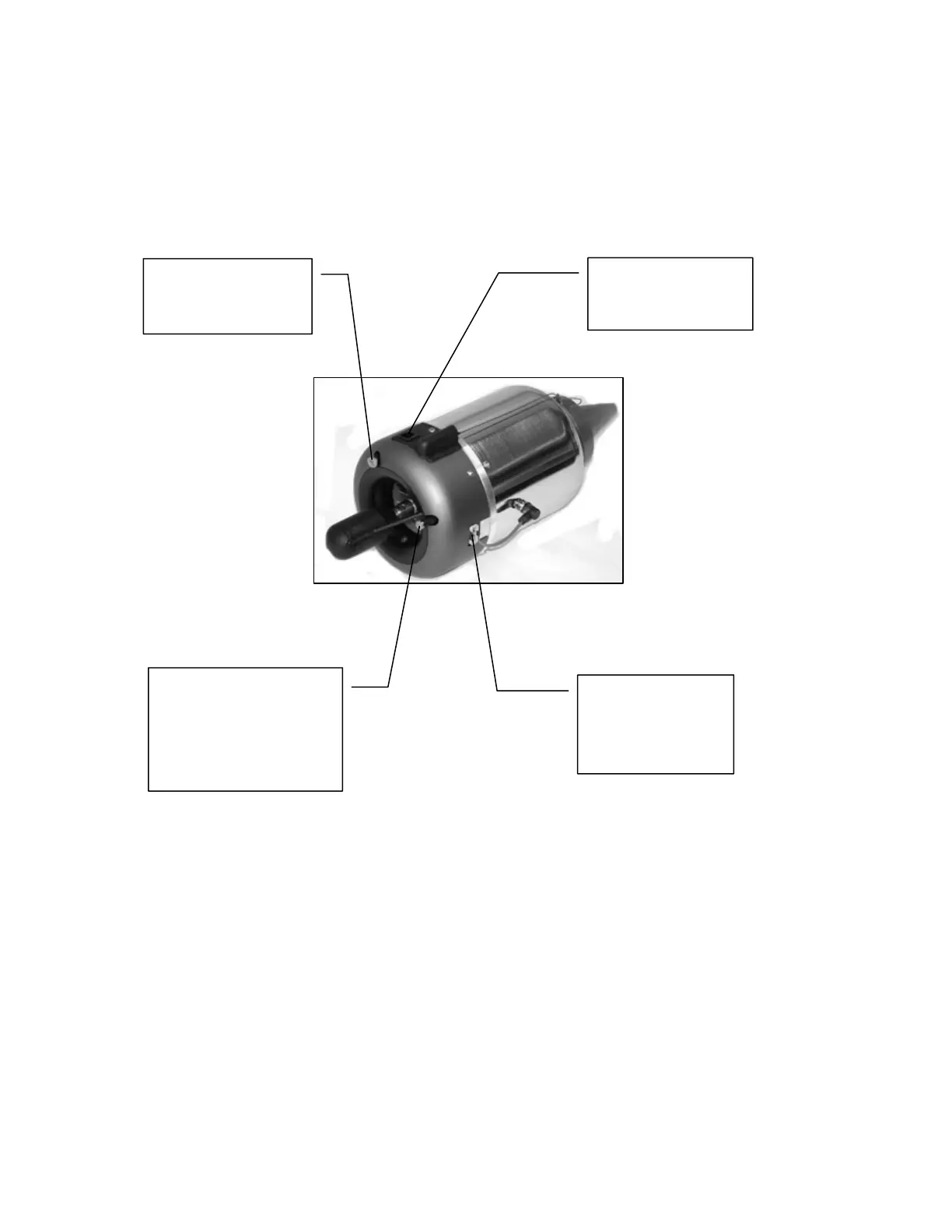

Connections at the Turbine
From ECU
(Glow-plug /
Starter device)
3-lead cable
Starting Gas
Connector,
(Propane/ Butane)
3mm tubing from the
starting gas tank
From ECU,
EGT & RPM
sensor cable
Fuel Connector,
4mm tubing from
the fuel pump
