Jetco Torque Tools ED SERIES - Operation of Power Wrenches; Power Wrench Features; RS232 Kit Components; USB Kit Components

POWER WRENCHES
4
3
2
RS232 KIT
1
USB KIT
Fig. 6
DB9 Serial Port
for data transfer
included with
"-P" Models
Fig. 7
1
5
2
4
3
Fig. 8
6 www.itorque.comJetco Torque Tools

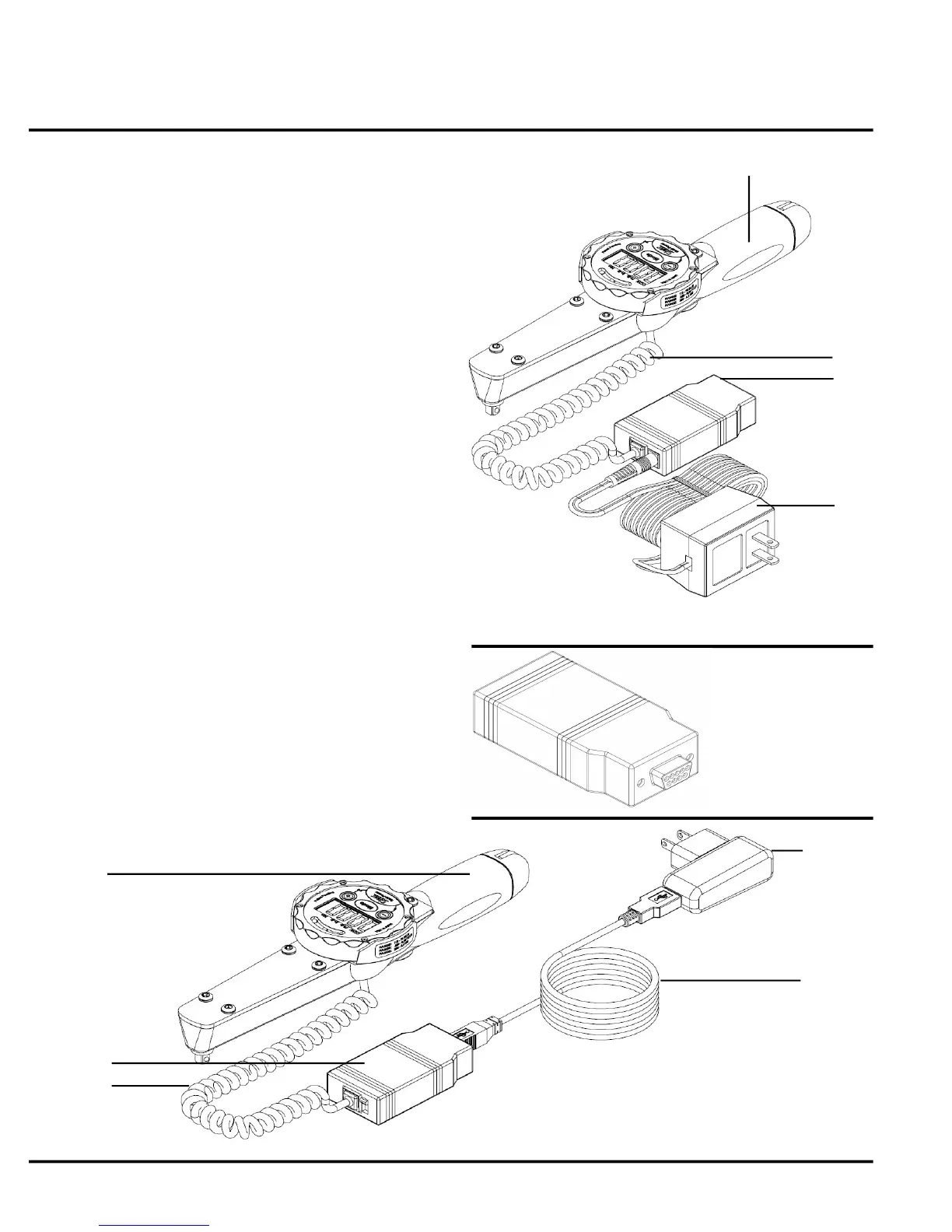

See Figure 6 & 7
■ The following components are included with every
power wrench equipped with the RS232 kit
(-P Models):
1. 110 Volt Transformer
2. RS232/Power Adapter (DB9 Serial Port)
3. Data cable (standard 6 wire RJ11 cable)
4. Rechargeable AAA Batteries
■ Power wrenches (-P and -USB Models) are able
to:
1. Charge batteries while using the wrench
2. Use the wrench on external power (no
batteries)
3. Send torque information to a printer,
computer, or data logger.
4. Control the wrench remotely with a serial
"open source" command.
See Figure 8
■ The following components are included with every
power wrench equipped with the USB kit
(-USB Models):
1. 110V / 5V Transformer
2. USB Cable
3. Data cable (standard 6 wire RJ11 cable)
4. USB Adapter
5. Rechargeable AAA Batteries
OPERATION OF POWER WRENCHES
