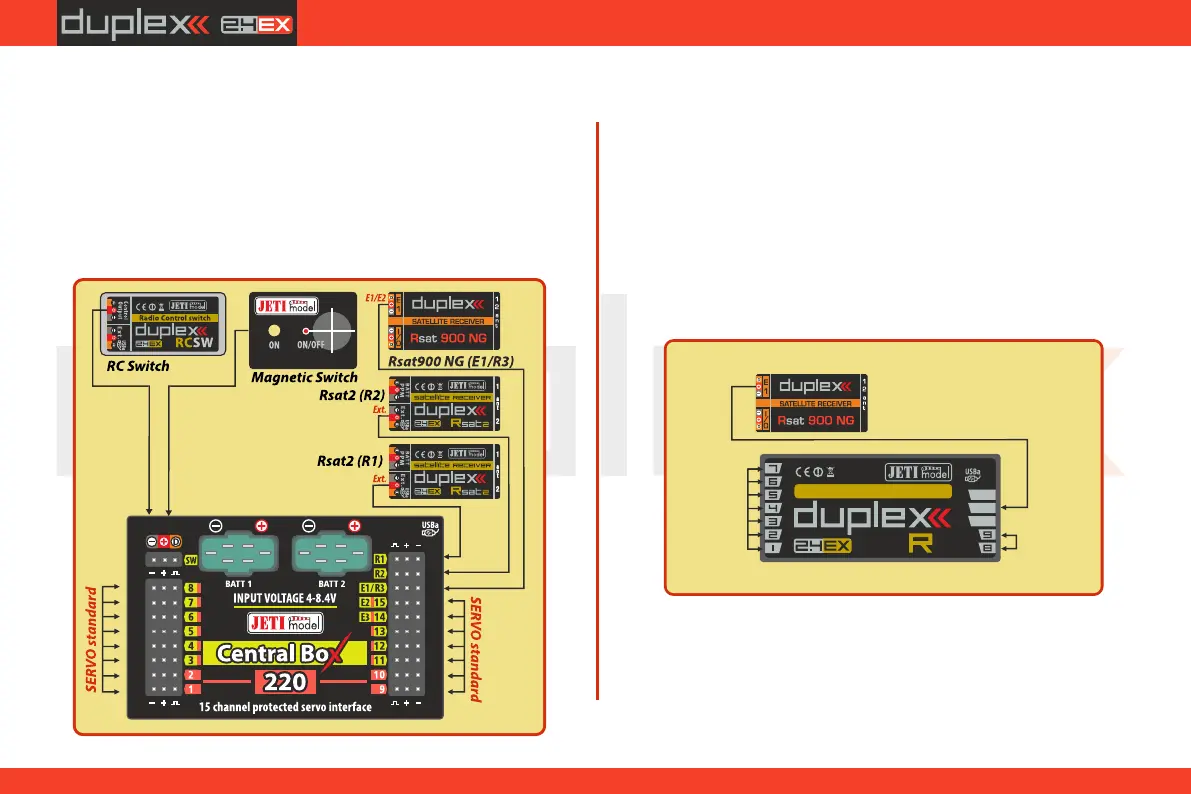

Recommended connection for Rsat900 NG as a backup receiver
with a Central Box
• Always connect the RSat2 or R3/RSW as the primary receiver in the
“RX1” slot of the Central Box.
• The RSat900 NG is connected to the " Rx2 " slot of the Central Box
• Both receivers are set to EX Bus output.
Connecting the RSat 900 NG directly to a Primary receiver :
• The RSat900 receiver is plugged into the “Sat1” slot of the primary
receiver.
• The RSat900 NG receiver is set to PPM output and the primary
receivers “Sat1” slot is set to PPM input.
SERVO
PPM
SERVO
9 channel receiver
SAT
9
Ext.
BATT
A2
A1
27
