Page 12 of 24

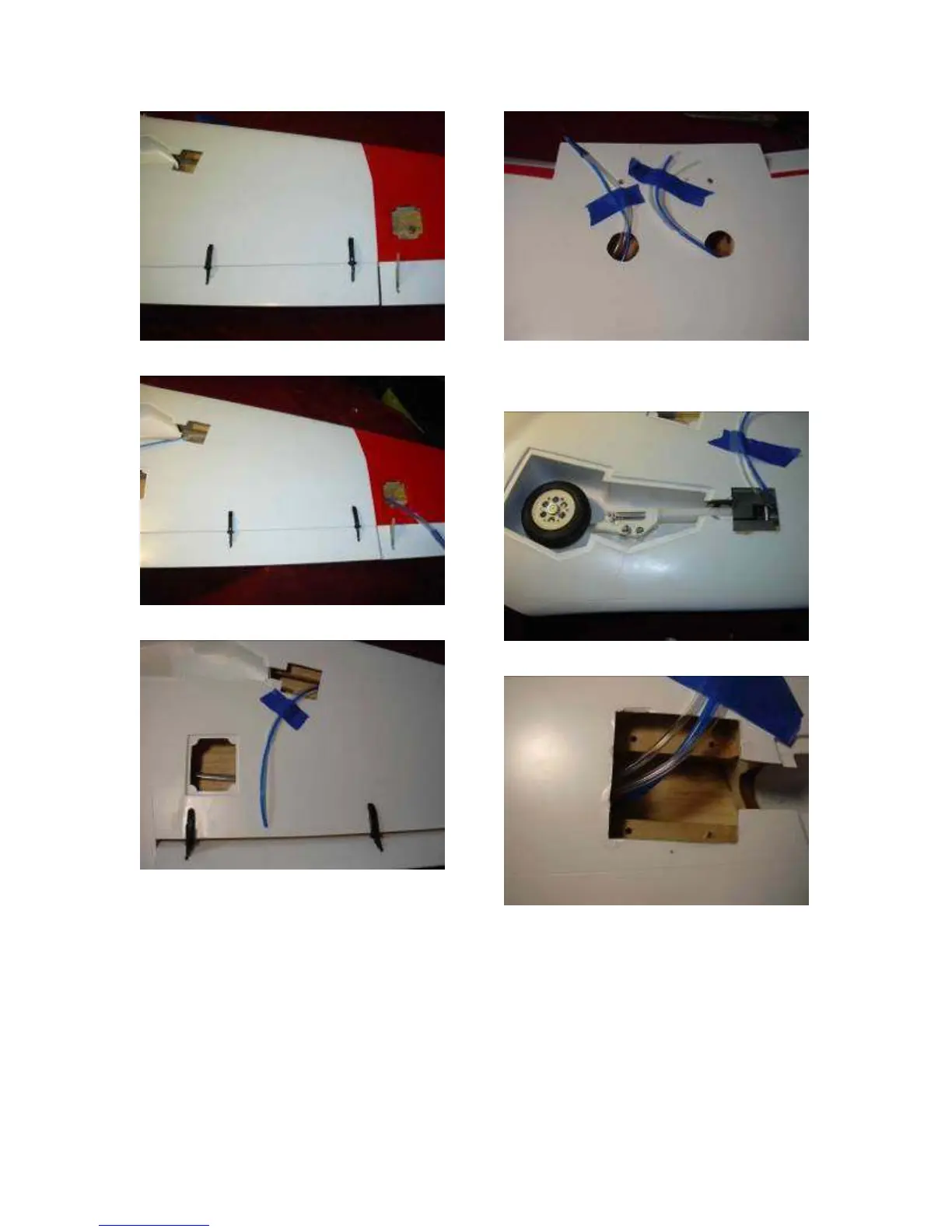

37 Use the string to pull the air lines through
and out the aileron servo bays.
38 leave about a foot of excess tubing at the
gear mount area and tape it down securely.
39 Dangle the wheel collar back into the wing
from the aileron servo bay to the holes you
made in the center section and pull the
airlines through and tape them to the top of
the wing.
40 Insert the main gear into the mount. Slide
the cylinder in first, then the retract can go in,
straight down. Align the gear carefully so as
not to hit the gear wells.
41 Mark the gear mounts holes and drill them
for the provided screws.
42 Attach the three air lines to the gear and
slide the gear into place. Be very sure not to
kink the lines and not trap them under the
retracts.
