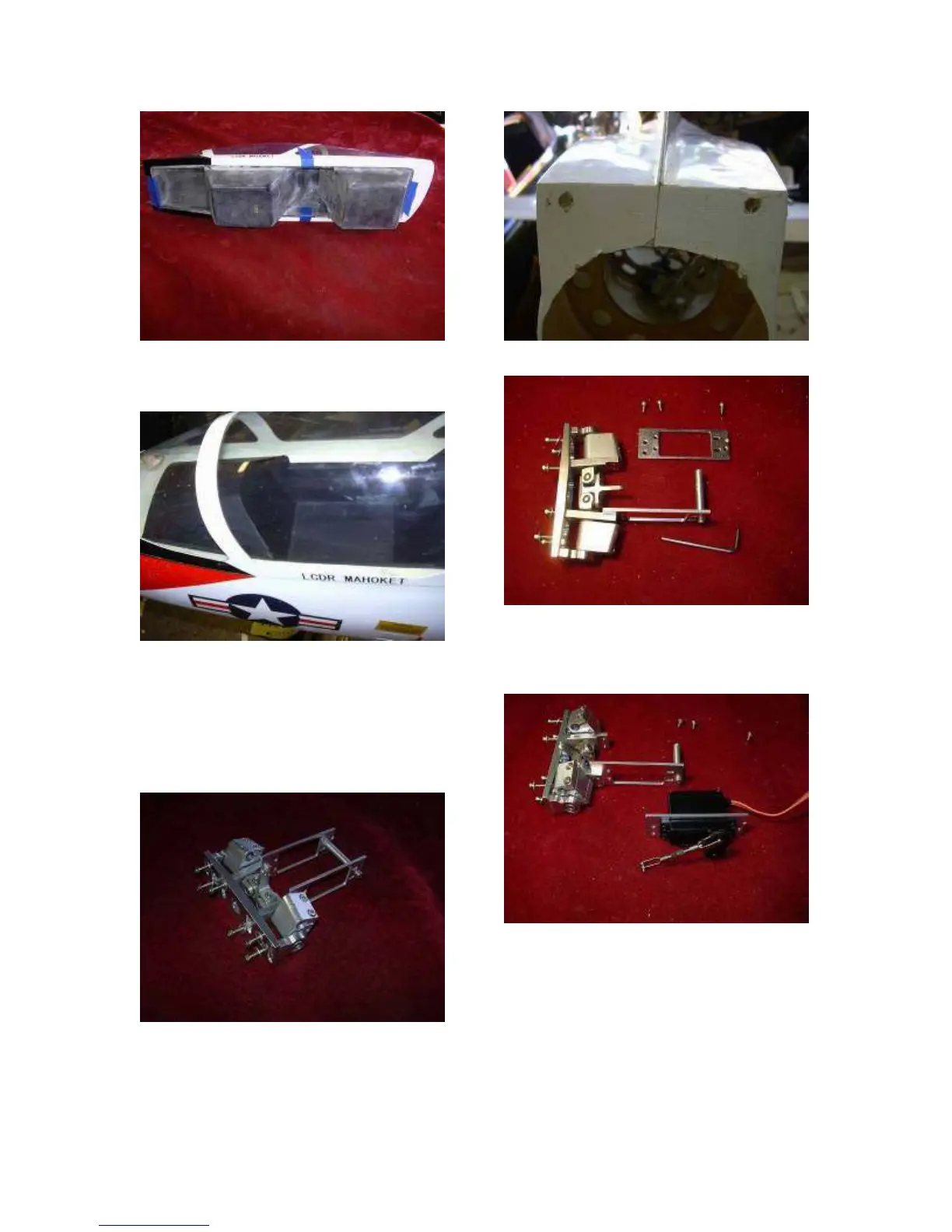

69. There are alternative ways you could
install the cockpit tub, but this technique
solves a handful of problems and looks neat
and clean. Try it.
STAB MECHANISM
70 Reach in through the tail and remove the
six bolts holding the stab mechanism in place.
Remove the mechanism and put the bolts
back into it for safekeeping.
70A. If you drill a couple of holes in the rear of
the fuse, it will make access to the upper stab
mechanism bolts much easier. The holes will
be covered by a molded fiberglass part.
71 Remove the three allen bolts holding the
left side frame of the stab mechanism.
72 Install a servo on the frame using the
provided screws. Do not use servo
grommets. Install the linkage on the servo
horn. A metal horn is suggested for this
application.
73 Reinstall the left side frame with the servo
and connect the linkage. Check for centering
and throw. Tighten all bolts, not just the ones
you removed, and use loctite to keep them
secure. Do not use loctite on any plastic
servo horns; the loctite can deteriorate the
plastic.
