JetLegend T-45 Goshawk
Page 13 of 24

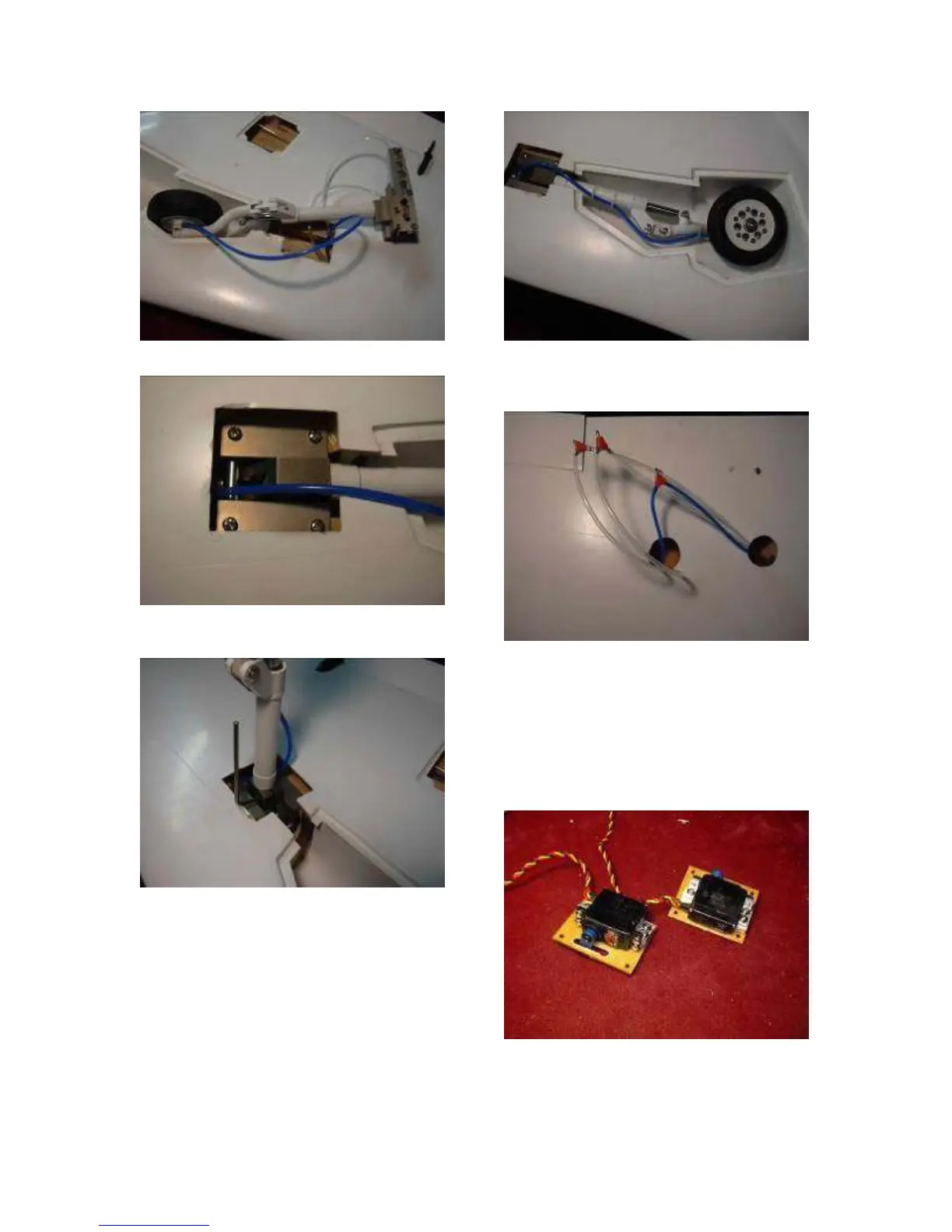

43 Screw the gear down with the provided
screws.
44 Loosen the trunnion bolt, and align the
wheel and strut to face for and aft properly,
and re-tighten the bolt.
45 Secure the brake air line to the strut using
tiewraps, be sure not to squeeze the line, and
be sure there is enough slack so the line
does not get pulled as the strut compresses.
46 Cut off the excess air line at the wing
center section. Leave about six inches of
slack. Tie the three sets of lines together with
y-connectors.
AILERON AND FLAP SERVOS
47 Depending on what servos you use, you
will need to make up different mounts for
them. These miniservos use a combination of
the provided aluminum mounts and plywood
blocks.
48 Place the aileron servo covers and your
aileron servos in place and mark the
openings for the servo horns.
