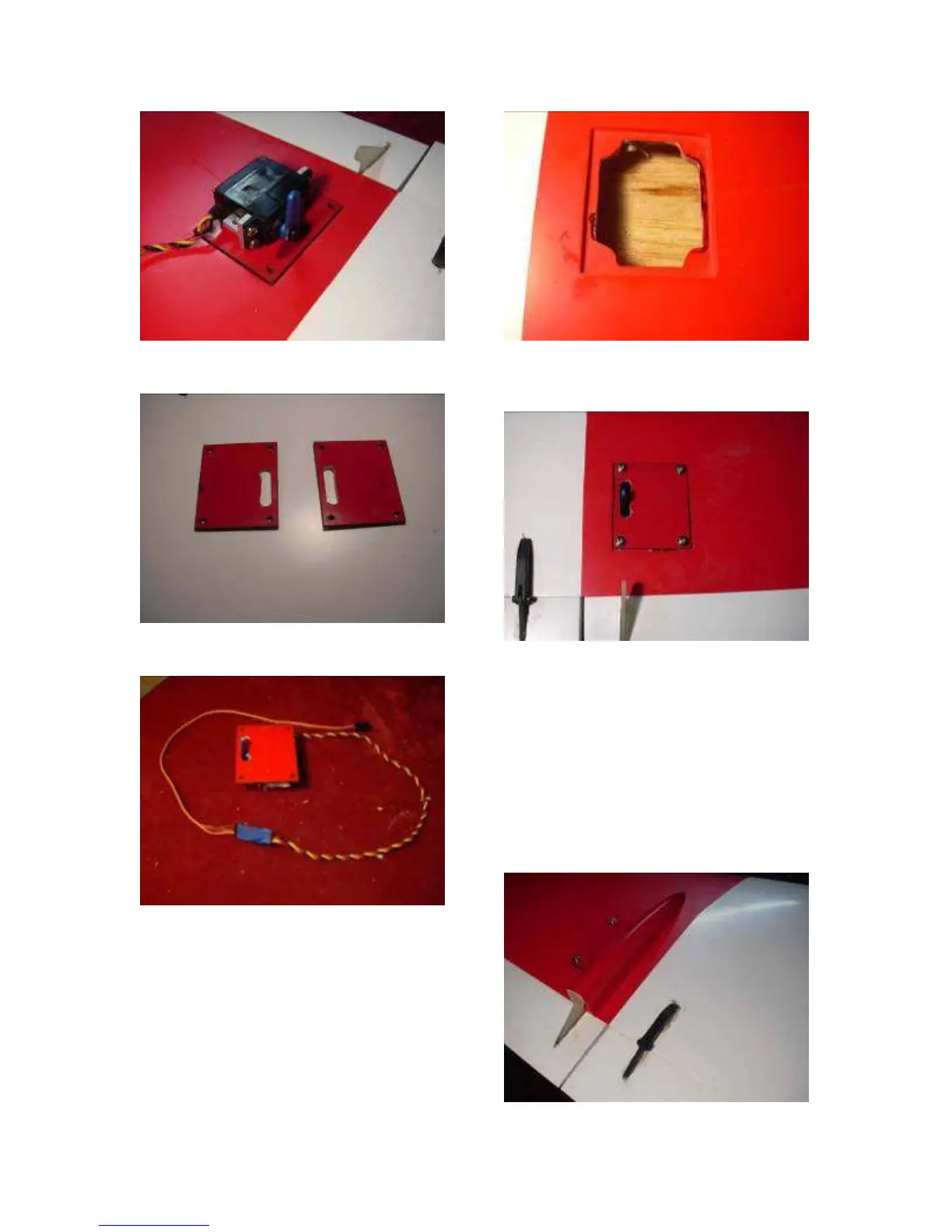

49 stack the two covers together, colored
side to colored side, and drill and cut the
servo horn openings.
50 Mount the servos to the covers and add
an extension to reach the wing center section,
tape the connectors for security.
51 Remove appropriate material from the
servo well if required for clearance, be sure to
leave enough at the corners for the servo
cover mounting screws.
52 Use your wheel collar and string to bring
the aileron servo lead through the wing and
out the center section holes and secure the
servo cover with four screws.
53 Install the provided aileron linkages. Be
sure to use the provided circlips, or,
alternatively, heat shrink tubing, for security
on the clevises. Install the red fairings using
only silicone glue, in case you need to
remove them for service. The two flap servos
follow exactly the same installation
procedures, except extensions are not
needed for them, they can be standard sized
servos, and they get the white colored
fairings. You may need to reduce the height
of the horns on the flaps to get the fairings
over them.
