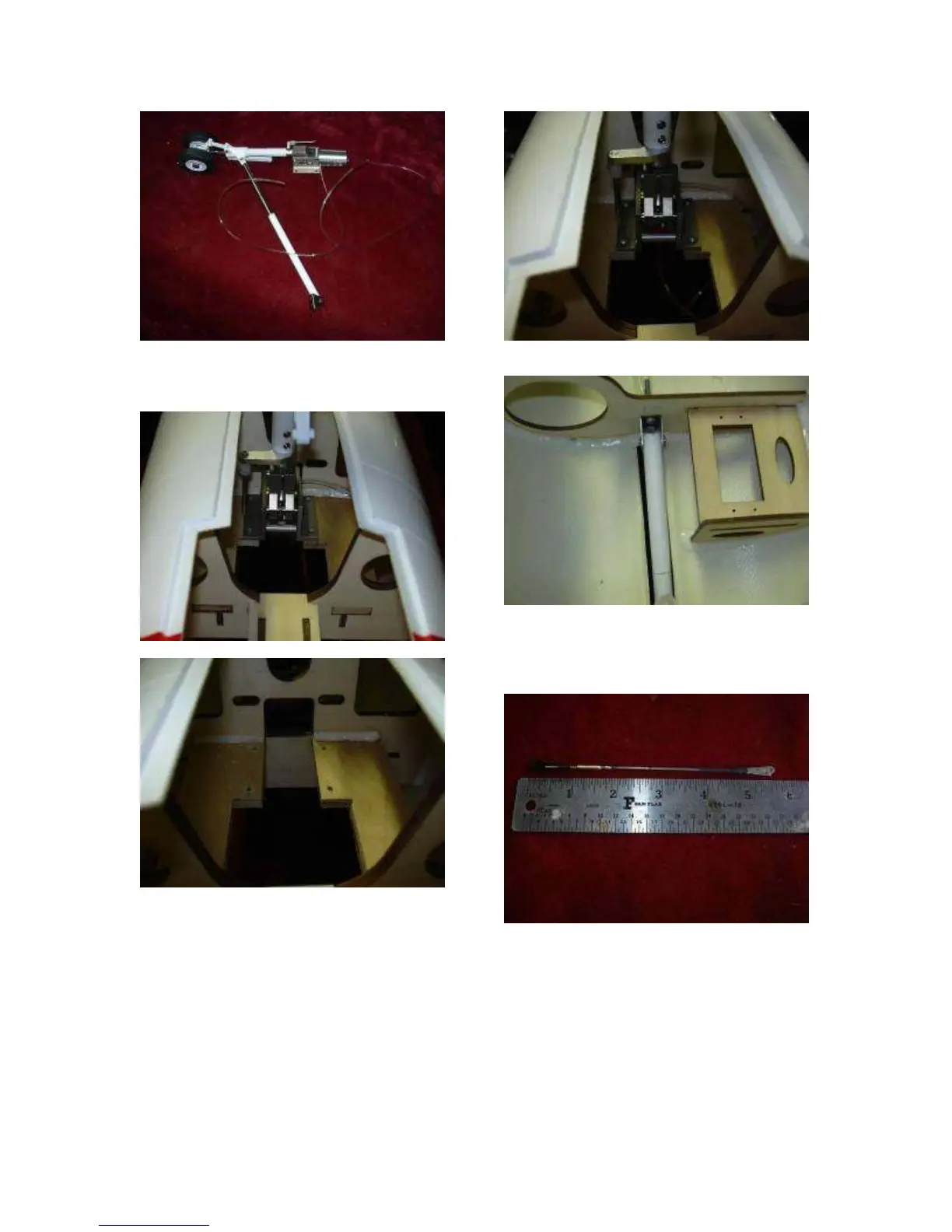

3 Invert the fuselage and place the nosegear
onto its mounts. check the location and
alignment carefully and mark for four
mounting screws.
4 Drill four holes for the mounting screws.
5 Install the nosegear using the four supplied
screws. Be sure to slide the rear stabilizing
strut inside the fuselage before screwing
down the landing gear.
6 Bolt the rear stabilizing strut for the
nosegear to the bulkhead as shown.
7 Make up a nosegear steering rod as shown.
The adjustable end goes towards the servo.
A piece of heat shrink tubing keeps the clevis
from getting hung up on the edges of the
guide hole in the former.
8 Install a standard-sized metal geared servo
for nosegear steering and link it to the
nosegear.
