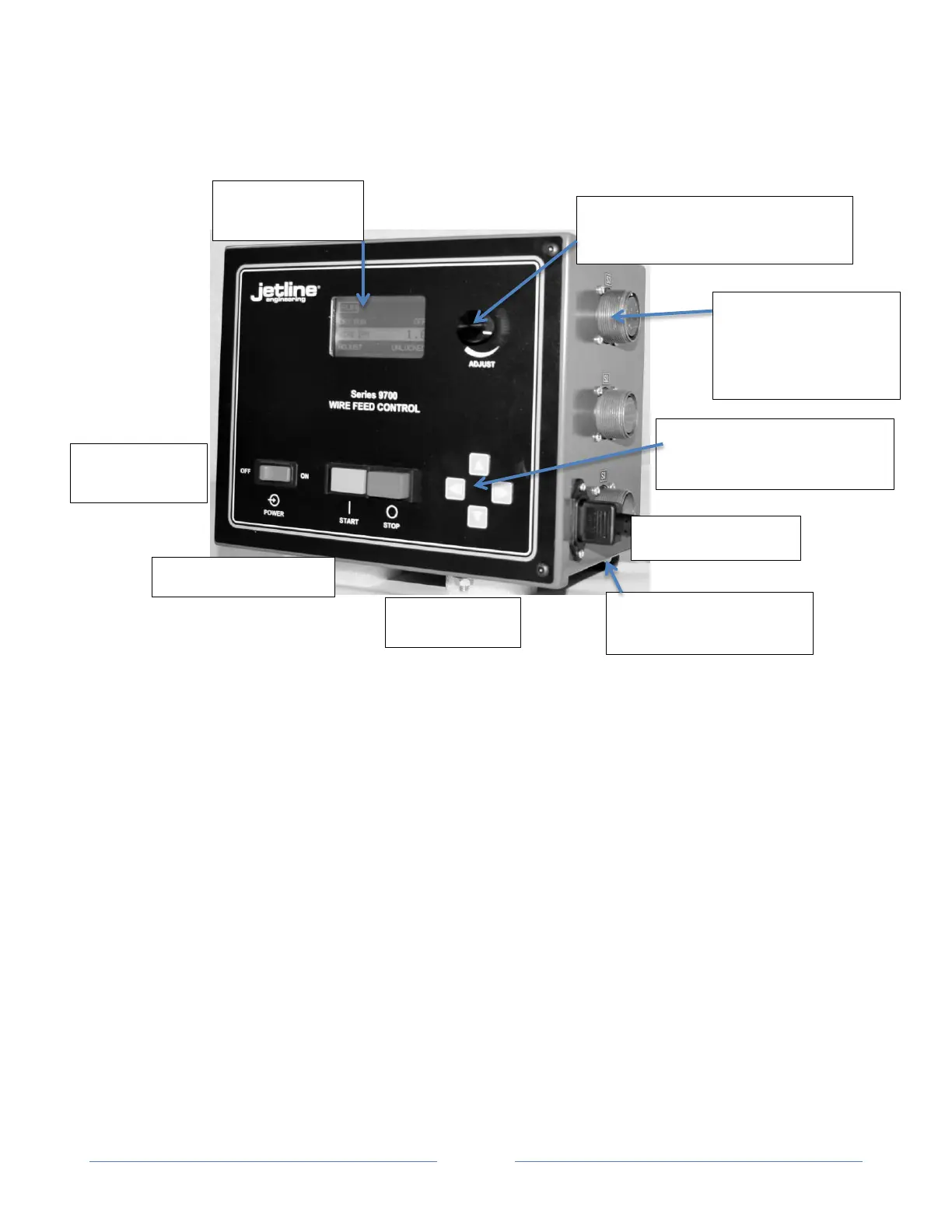

Figure 2: 9700W Front Panel Showing Operator Interface and functions of dials, switches
Section III Operation Mode 9700W
This mode is used by the operator to feed weld wire.
To set the conditions for operation, the operator can scroll through the various screens and make the
appropriate changes using the up/down and left/right arrows on the face of the control.
When changing a numeric value each click of the dial will increase or decrease the value by one. If
the up button is pressed then each click of the dial increases or decreases the value by 10. Pressing
the up button again allows the dial to change values by 100 per click. Using the down button will
move the values back to 10 and pressing down again will move the values back to 1.
Operator Mode consists of two main sections- Run, and Program. Both sections are linked together
to form one list.
Some entries in the program section also have sub menus. The four sub menus are –Aux1, Aux2,
Aux3 and Pulsed. Use the right arrow to enter them and then you navigate as you would before.
Use the left arrow to return to the Operator mode main section.
3 Remote
Receptacles S3 top,
S2 middle, S1 at
bottom
Knob, Dial adjust for screen- CW
more and CCW less
4 touch arrows/buttons for
screen navigation
