Since the 9700W is fitted with an IEC 60320-1 C14 power receptacle you will need to get a power
cord with an IEC 60320-1 C13 connector rated for 250VAC to use with 220/230VAC.
B. Output Connections
All output connections to and from the 9700W control use Amphenol connectors. There are three
Amphenol connectors, the lower one is marked S1, the center one is S2 and the upper one is S3.
Interconnection of the 9700W control with associated equipment is shown on the following pages.

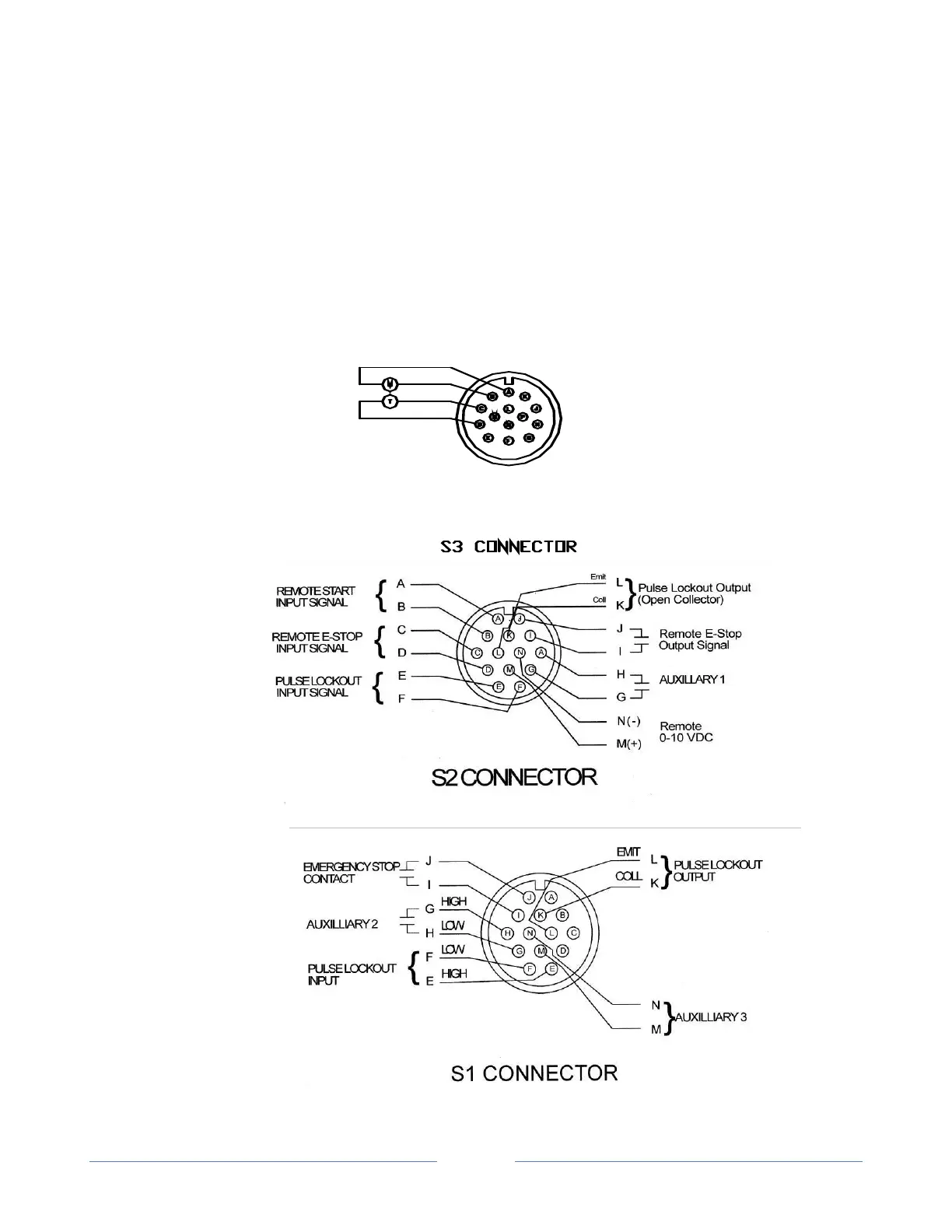

Figure 5: Amphenol Connectors-Pin locations and designations
