Jetline 9700W - 9700 W Enclosure Parts

Page 25

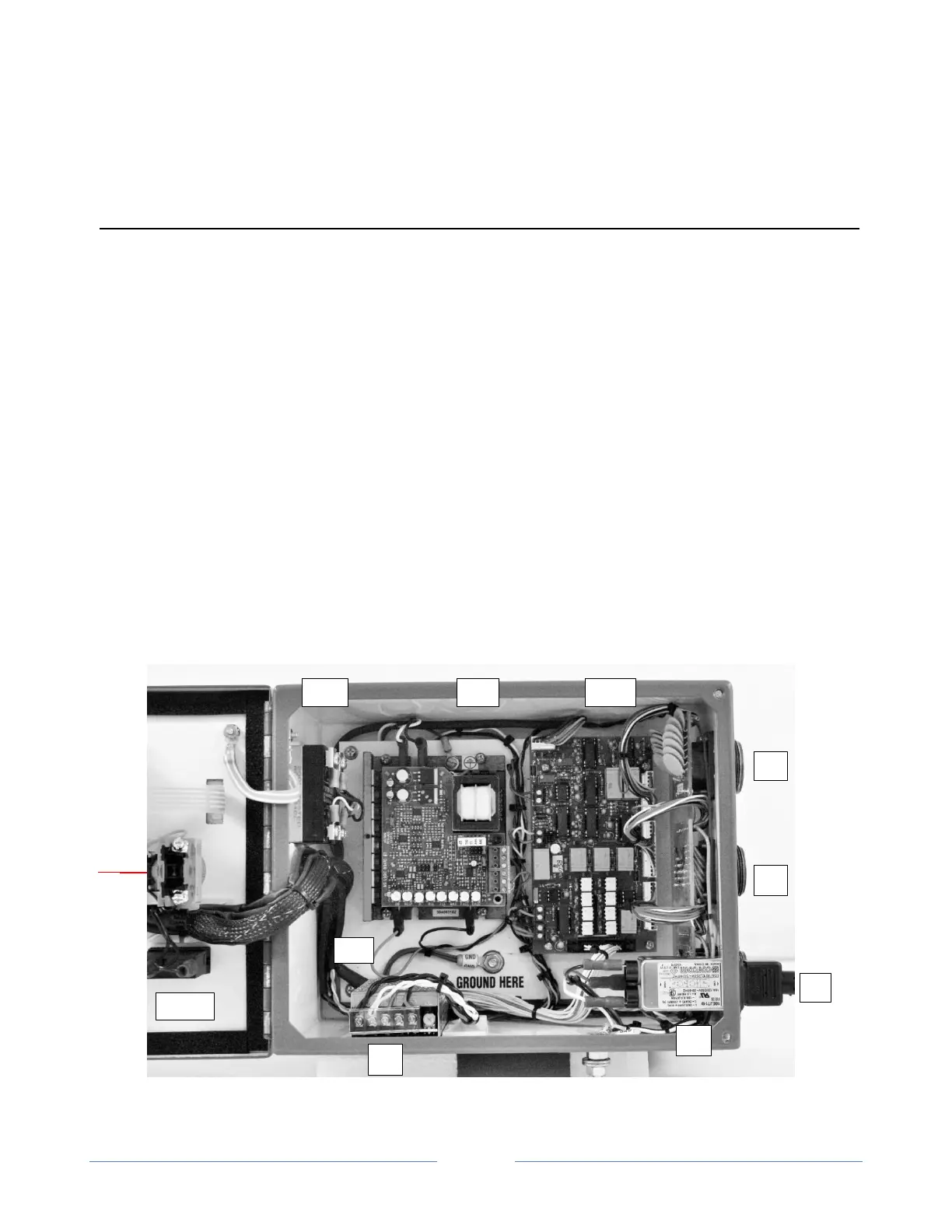

9700W Enclosure
Recommended
Item Part Level Level
No. No. Description Qty I II
1 9700-1 Complete, assembled control Enclosure ..................1
2 9700W-105 Cabinet Sheet metal only .........................................1
4 9700-CAB-S1 Cable Assembly Remote S1.....................................1
5 9700-CAB-S2 Cable Assembly Remote S2.....................................1
6 9700-CAB-S3 Cable Assembly Remote S3.....................................1
7 C-1318-006-BL Power Cord 6 foot Right Angle 76803 ....................1
8 AS-25-5 Power Supply RS-25-5 ............................................1
9 81F4550 RFI Filter 240D10 ....................................................1
10 9700-110 Sub-Panel .................................................................1
11 240D10 Solid State Relay SSR1 ............................................1 1
12 9700-11 Isolation Board 9600-11R ........................................1 1
13 KBMG-212D Motor Drive Module ................................................1 1
14 9700-CAB-MWH Wire Harness - Main (Not illustrated) .....................1
15 9700-CAB-SWH Wire Harness - Signal (Not illustrated) ...................1
16 9700-CAB-AWH Wire Harness - Analog (Not illustrated) ..................1
11
13
12
Door
9
8
7
6
10
5
