Jetson BOLT Guide

22

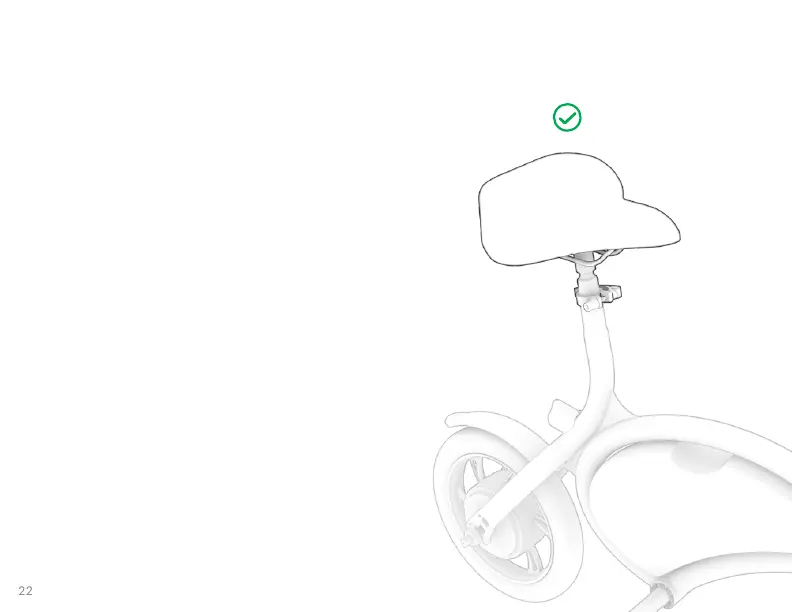

4. IF NECESSARY, RETIGHTEN THE CLAMP BY TURNING
THE KNOB CLOCKWISE. CLOSE THE LATCH ON THE
SEAT CLAMP TO LOCK THE SEAT IN PLACE.
NOTE: IF YOU CANNOT OPEN OR CLOSE THE LATCH,
THE KNOB MAY BE TOO TIGHT. LOOSEN THE KNOB
½ ROTATION AT A TIME UNTIL THE LATCH CAN BE
UTILIZED.
5. CHECK THAT THE SEAT IS SECURE. USE YOUR HAND TO
PUT DOWNWARD PRESSURE ON THE SEAT. IF THE SEAT
POST SLIPS FURTHER DOWN INTO THE TUBE, BRING
THE SEAT BACK TO POSITION AND TIGHTEN THE CLAMP
BY TURNING THE KNOB CLOCKWISE.
IMPORTANT: NEVER RAISE THE SEAT SUCH THAT THE
“MINIMUM INSERTION” MARK ENGRAVED ON THE SEAT
POST IS VISIBLE ABOVE THE SEAT CLAMP.

Jetson BOLT Specifications

General

Motor Power	350W
Charging Time	4-5 hours
Foldable	Yes
Motor	350W
Max Rider Weight	120 kg
Brake	Disc Brake
Tires	8.5 inches
Max Load	120 kg
Brake Type	Disc Brake
Top Speed	25 km/h
Weight	14 kg
