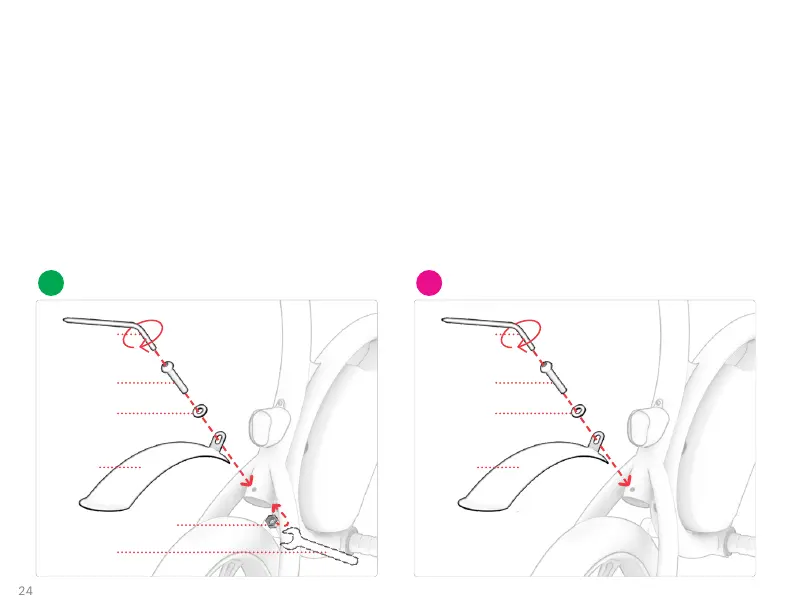

2. HOLD THE REAR FENDER OVER THE REAR WHEEL SO THAT:
· THE PREDRILLED HOLE AT THE FRONT OF THE FENDER IS ALIGNED WITH THE HOLE IN THE FRAME FROM WHICH YOU
REMOVED THE BOLT.
· THE FENDER IS OVER THE REAR OF THE WHEEL, CURVED DOWNWARDS.
3. USE THE HARDWARE YOU REMOVED IN STEP 1 TO SECURE THE FENDER IN PLACE: SLIDE THE WASHER ONTO THE BOLT,
INSERT THE BOLT THROUGH THE HOLE OF THE FENDER AND THEN INTO THE HOLE IN THE FRAME. IF YOU HAVE A NUT,
HOLD THE NUT STEADY ON THE OTHER SIDE OF THE FRAME TO RECEIVE THE BOLT YOU TIGHTEN INTO IT.
WASHER WASHER
BOLT BOLT
REAR
FENDER
REAR
FENDER
NUT
B
A
5MM
ALLEN KEY
4MM
ALLEN KEY
10MM
WRENCH
