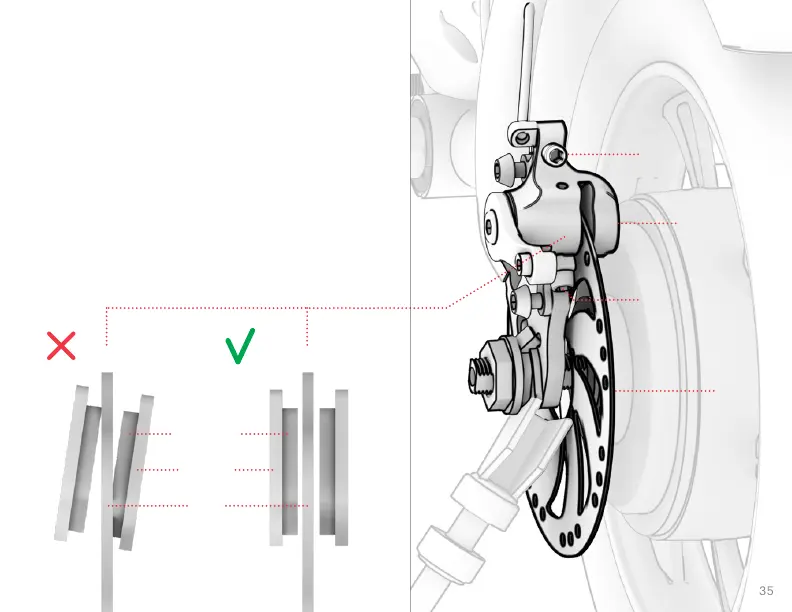

1. WHEN LOOKING AT THE CALIPER FROM THE BACK OF THE
WHEEL, LOCATE THE BOLT ABOVE AND THE BOLT BELOW
THE CALIPER. USE THE 5MM ALLEN KEY TO EACH BOLT BY
TURNING IT COUNTERCLOCKWISE FOR 4 5 ROTATIONS.
2. MOVE THE CALIPER INTO ALIGNMENT UNTIL THE
FOLLOWING CONDITIONS ARE MET:
• THE TOP OF THE PADS ARE ALIGNED WITH THE EDGE
OF THE DISC.
• NO PART OF EITHER PAD IS TOUCHING THE DISC.
• THE PADS ARE PARALLEL TO THE DISC.
3. WITH THE CALIPER IN THE DESIRED POSITION, FULLY
TIGHTEN ONE BOLT AND THEN THE OTHER BY TURNING
IT CLOCKWISE WITH THE ALLEN KEY.
4. CHECK THAT THE CALIPER IS SECURE AND
CONDUCT THE BRAKE SAFETY & FUNCTIONALITY
CHECK PAGE 34 AGAIN.
DISC
CALIPER ADJUSTMENT
BOLT
CALIPER ADJUSTMENT
BOLT
CALIPER
BRAKE PAD
CALIPER
DISC
