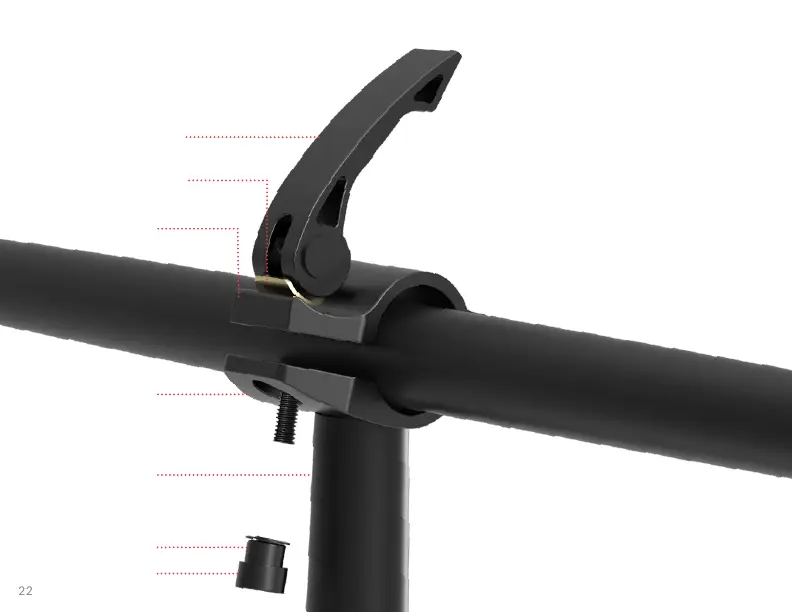

CLAMP TOP
CURVED WASHER
6. POSITION THE HANDLEBAR IN THE BASE OF
THE CLAMP SO THAT, WHEN SEATED, YOUR
RIGHT HAND WILL REST ON THE THROTTLE.
7. CENTER THE HANDLEBAR IN THE BASE AND
SLIDE THE TOP PART OF THE CLAMP BACK IN
FROM ONE OF THE SIDES SO THAT THE TWO
CLAMP HOLES ARE ALIGNED.
8. REINSERT THE CLAMP LATCH WITH CURVED
WASHER THROUGH THE CLAMP TOP.
9. SLIDE THE FLAT WASHER ONTO THE STEM OF
THE LATCH AND GENTLY TWIST ON THE NUT.
FLAT WASHER
NUT
CLAMP BOTTOM
CLAMP LATCH STSEM
CLAMP LATCH
