INDICATOR
Indicator (FIGURE 1) has several functions:
SIGNALLING:
– Signalling the ride duration
– Signalling the conditions and errors of the ICU
control unit
CONTROLLING:
– By BRIEFLY placing your key to the indicator you
will switch the ICU o and on
– By placing and LEAVING the key on the indica-
tor, you will switch on the function “REMOVAL OF
WATER AND FUEL FROM THE ENGINE”.
DESCRIPTION OF THE FUNCTION OF THE RIDE DURATION INDICATOR
1) Place the key to the indicator
2) To up the tank
3) Start the JetSurf
TM
by inserting the key in the control handle
4) When riding for the rst 20 minutes, the indicator ashes green, then it ashes purple (there is
approximately half tank of fuel)
To use the indicator function again, repeat the procedure from item 1.
SIGNALLING OF ICU CONDITIONS AND ERRORS, SWITCHING ICU OFF AND ON
These functions are described on two preceding pages.
REMOVAL OF WATER AND FUEL FROM THE ENGINE
A detailed description can be found on page 38, part A.

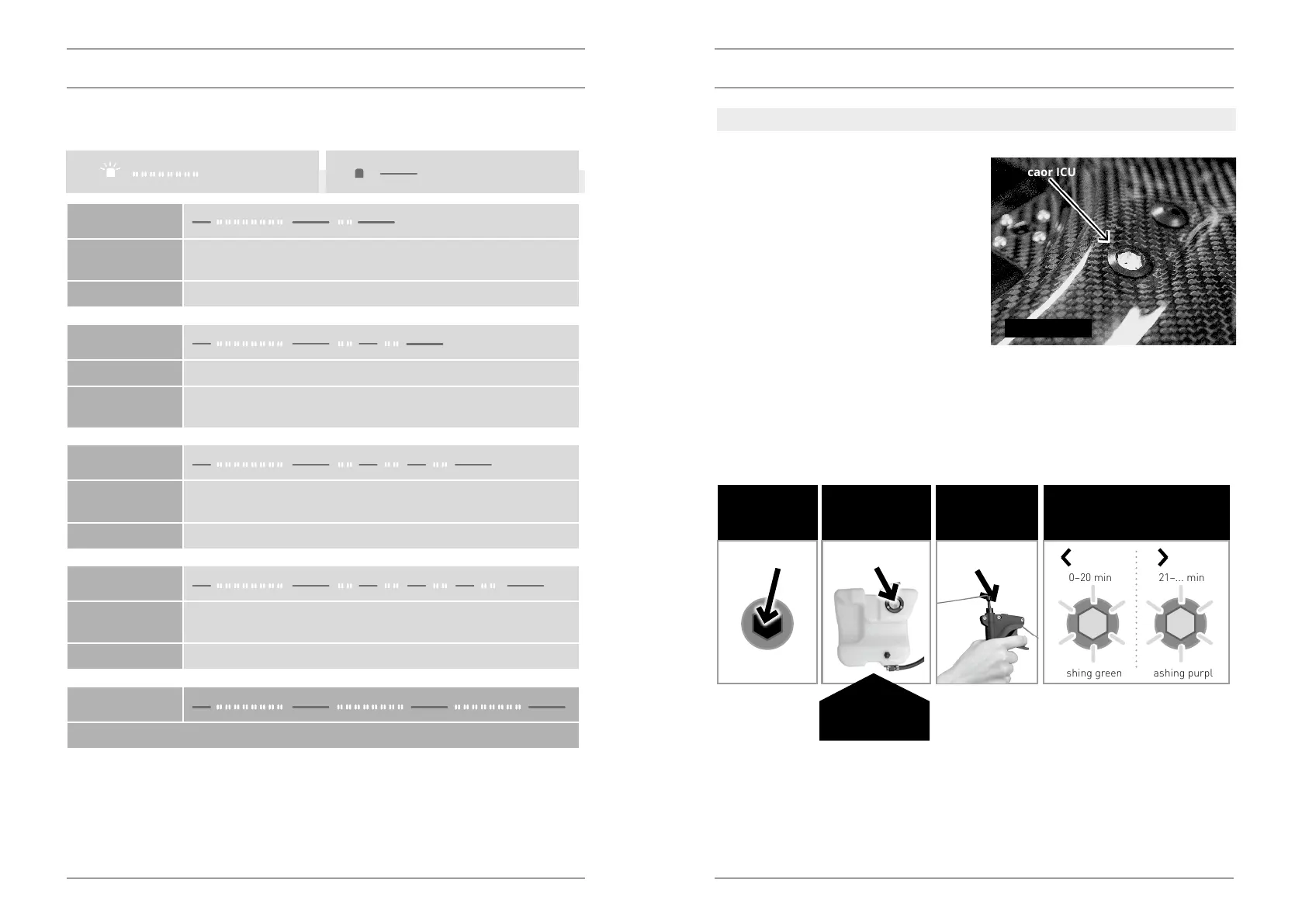

SIGNALLING OF IGNITION CONTROL UNIT (ICU) FAULTS
The LED is lit The LED is not lit
Course of signalling
Fault type/cause
When the engine shut-o key was inserted in the handle for the rst time, it stayed
in the handle for longer than 30 seconds.
How to repair it Pull the key out.
Course of signalling
Fault type/cause Low battery – it can be caused by a short circuit of the starter or at battery.
How to repair it
Charge the battery.
Starter replacement – if the batteries are charged and the starter turns slowly.
Course of signalling
Fault type/cause
Fault of electric bilge pump – a short circuit of the pump has been detected but the
ignition works normally after that.
How to repair it Check the conductor to the pump, clean the pump or replace it.
Course of signalling
Fault type/cause
Fault of excessive use of the starter – there have been 10 starts without the engine
getting started, this signalling will last 2 minutes.
How to repair it Wait for 2 minutes.
Course of signalling
When the ignition control unit (ICU) is switched o, it switches o automatically after 5 minutes of idleness.
DESCRIPTION DESCRIPTION
indikcaor ICU
FIGURE 1
shut-of key fuel shut-of key
20 min 20 min
1
Switch o
ICU
4
Riding
3
Switch on
ICU
2
Refuel fully
fuel tank
FULL TANK !!!
0–20 min 21–... min
flashing green flashing purple
