jfdigital HDM-01D - Page 8

- 6 -
3.2
3.2
3.2

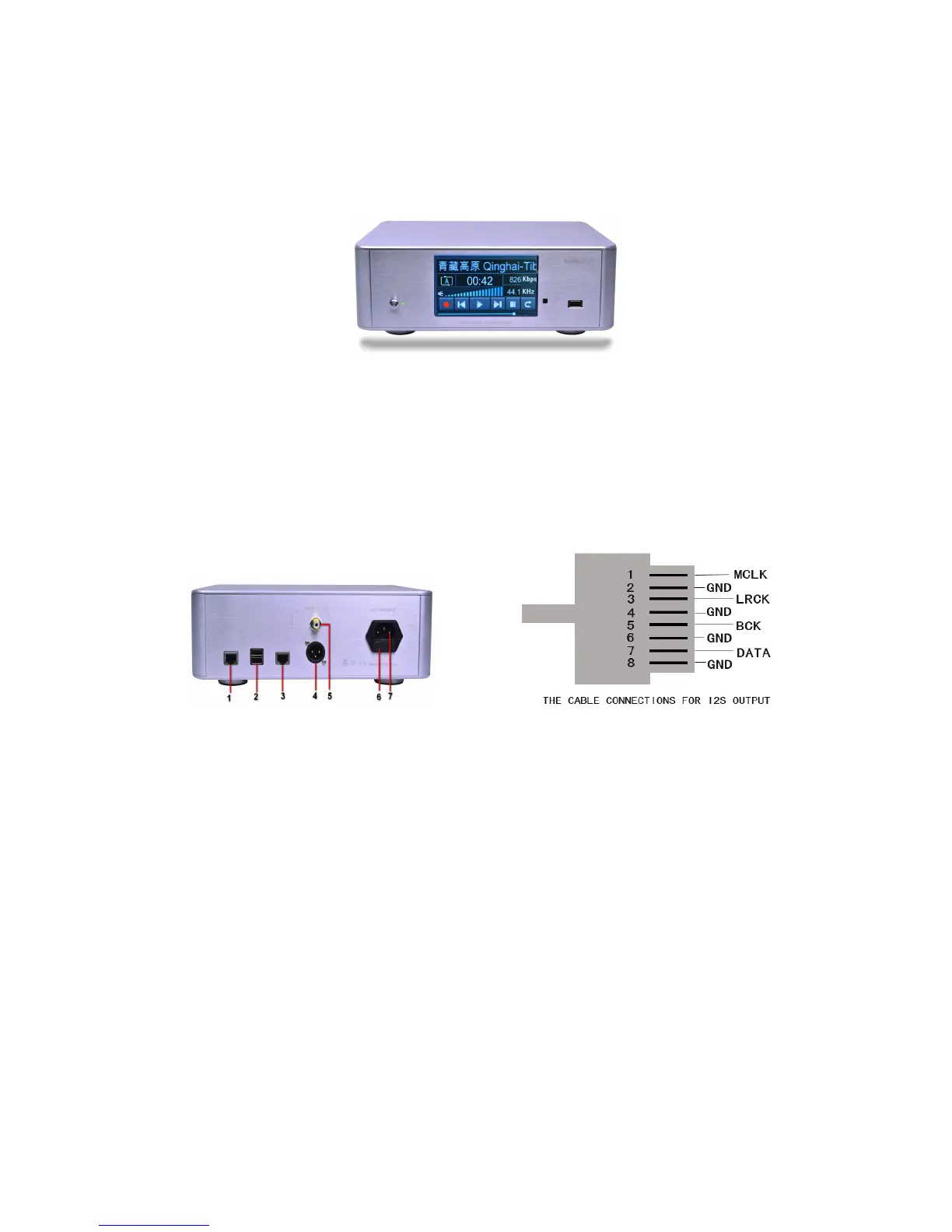

3.2 Product
Product
Product
Product Layout
Layout
Layout
Layout
3.2.
3.2.
3.2.
3.2. 1
1
1
1 Front
Front
Front
Front Panel
Panel
Panel
Panel HDM-01D
HDM-01D
HDM-01D
HDM-01D
1 . P ower button and power LED .
2. Machine display screen,touch display panel.
3. Receive w indow with infra-red remote control.
4. USB HOST port ， to connect with USB storage device such as USB flash
disk or mobile HDD.
3.2.
3.2.
3.2.
3.2. 2
2
2
2 Back
Back
Back
Back Panel
Panel
Panel
Panel HDM-01D
HDM-01D
HDM-01D
HDM-01D
1. RJ-45 LAN interface 4. Balanced Digital output AES jack
2. USB HOST port s ,to connect with
5. Digital output RCA jack
USB storage device such as 6. Power Fuse block(250V/1A)
USB flash disk or mobile HDD. 7. AC commercial-use power jack
3. I2S out put port
