jfdigital HDM-01D - Front Front Front Panel Panel Panel HDM-03; Hdm-03 S; Hdm-03

- 7 -
3.2.
3.2.
3.2.
3.2. 3
3
3
3 Front
Front
Front
Front Panel
Panel
Panel
Panel HDM-03S
HDM-03S
HDM-03S
HDM-03S

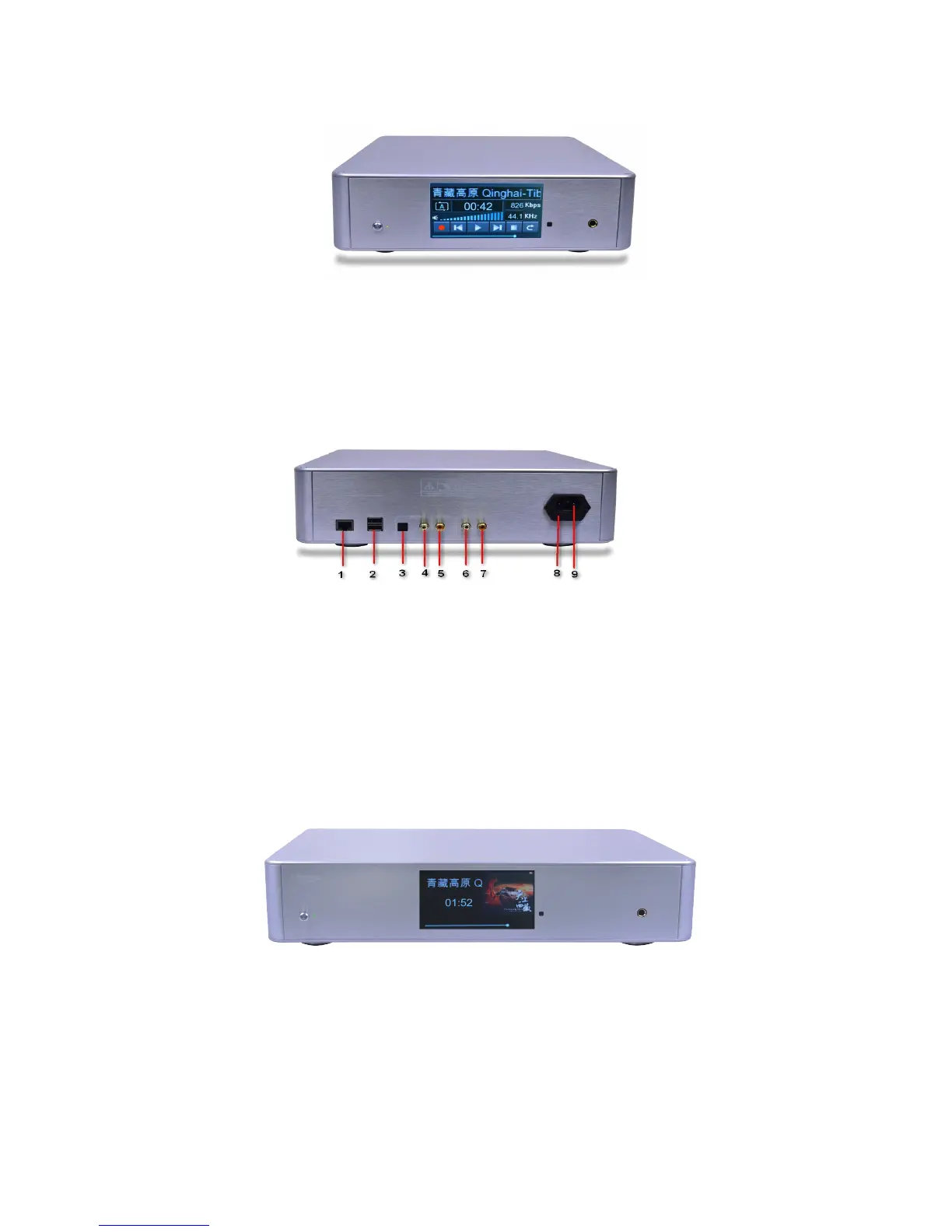

1. P ower button and power LED .
2. Machine display screen,touch display panel.
3. Receive Window with infra-red remote control.
4. 6.3mm earphone export,connect to the earphone of high impedance
above 50 ohmic.
3.2.4
3.2.4
3.2.4
3.2.4 Back
Back
Back
Back Panel
Panel
Panel
Panel HDM-03S
HDM-03S
HDM-03S
HDM-03S
1. RJ-45 LAN interface 5. Digital input RCA jack
2. USB HOST port s
，
to connect with
6. R-Channel analog output jack
USB storage device such as USB 7. L-Channel analog output jack
flash disk or mobile HDD. 8. Power Fuse block(250V/1A)
3. Digital input Optical jack 9. AC commercial-use power jack
4. Digital output RCA jack
3.2.5
3.2.5
3.2.5
3.2.5 Front
Front
Front
Front Panel
Panel
Panel
Panel HDM-03
HDM-03
HDM-03
HDM-03
1. P ower button and power LED .
2. Machine display screen,touch display panel.
3. Receive Window with infra-red remote control.
4. 6.3mm earphone export,connect to the earphone of high impedance above
50 ohmic.
