Jimi JC261 Series User Manual

Making connections simpler
05

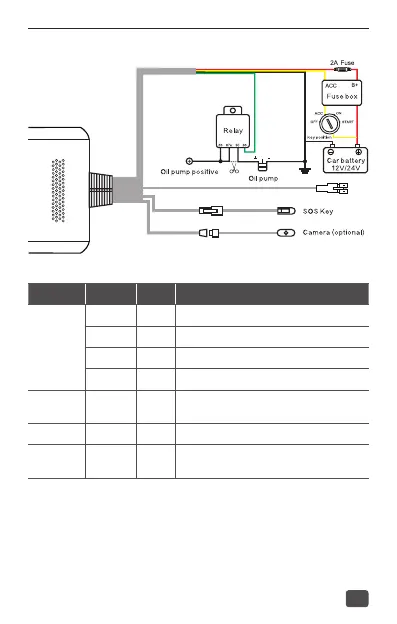

Cable De󽗉nition Color Usage
Power
B+ Red To battery positive (9-30V), power input
GND Black To battery negative, power input
ACC Yellow To ACC ON/Positive (9~30V), power input
Relay Green To relay for remote power and fuel cuto󽗈
TTL
(optional)
I/O /
To peripherals, such as oil sensor, card
reader, etc.
SOS SOS / To the external SOS key
Camera
(optional)
Remote
camera
/
Monitor the cabin
JC261P can not use this wire

TTL
