SECTION 5 - OPTIONAL EQUIPMENT
5-4 – JLG Lift – 3121189
spring clamps on the vertical rail at the opposite end of
the platform (1).
4. Next fold the extend handles down until they lock into
the spring clamps on the vertical rail (1), this will lock the
platform extension in place.
Retracting Platform
(Refer to Figure 5-2.)
1. To retract the platform grasp the extend handles now
located at the middle of the extended platform on the
vertical rail (1). Pull up on each handle to a horizontal
position to clear the handle spring clamps.
2. Retract the platform extension by standing on the rear
(mast) platform section and pulling the extend handles
(1) toward the mast (4), (you may need to pull the han-
dles halfway then turn and push them the rest of the way
to fully retract the platform extension).
3. When both extend handles line up with the handle
spring clamps (2) on the vertical rail at the rear of the
platform, fold the handles (1) down locking them into the
spring clamps (2).

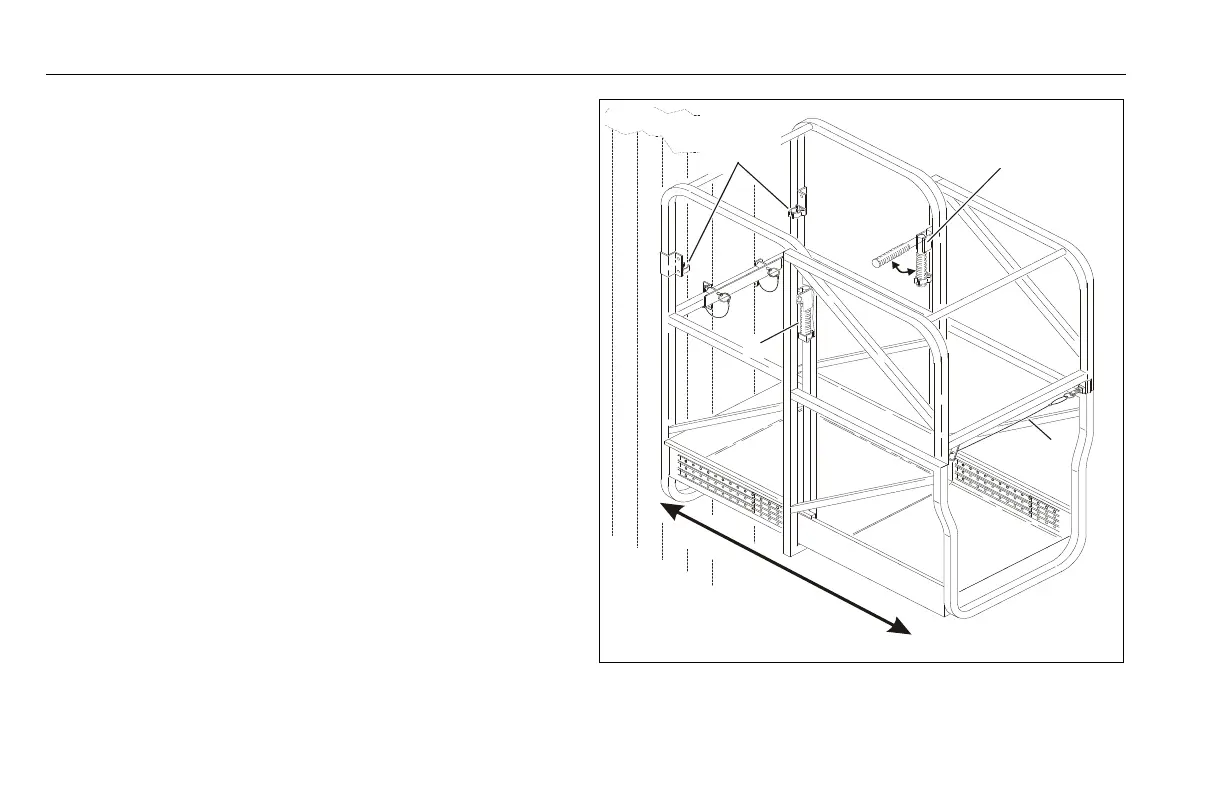

Figure 5-2. Extendible Platform.
