Johnson Controls ATC1510 User Manual

Mounting the Controller
This section describes how to mount the ATC.

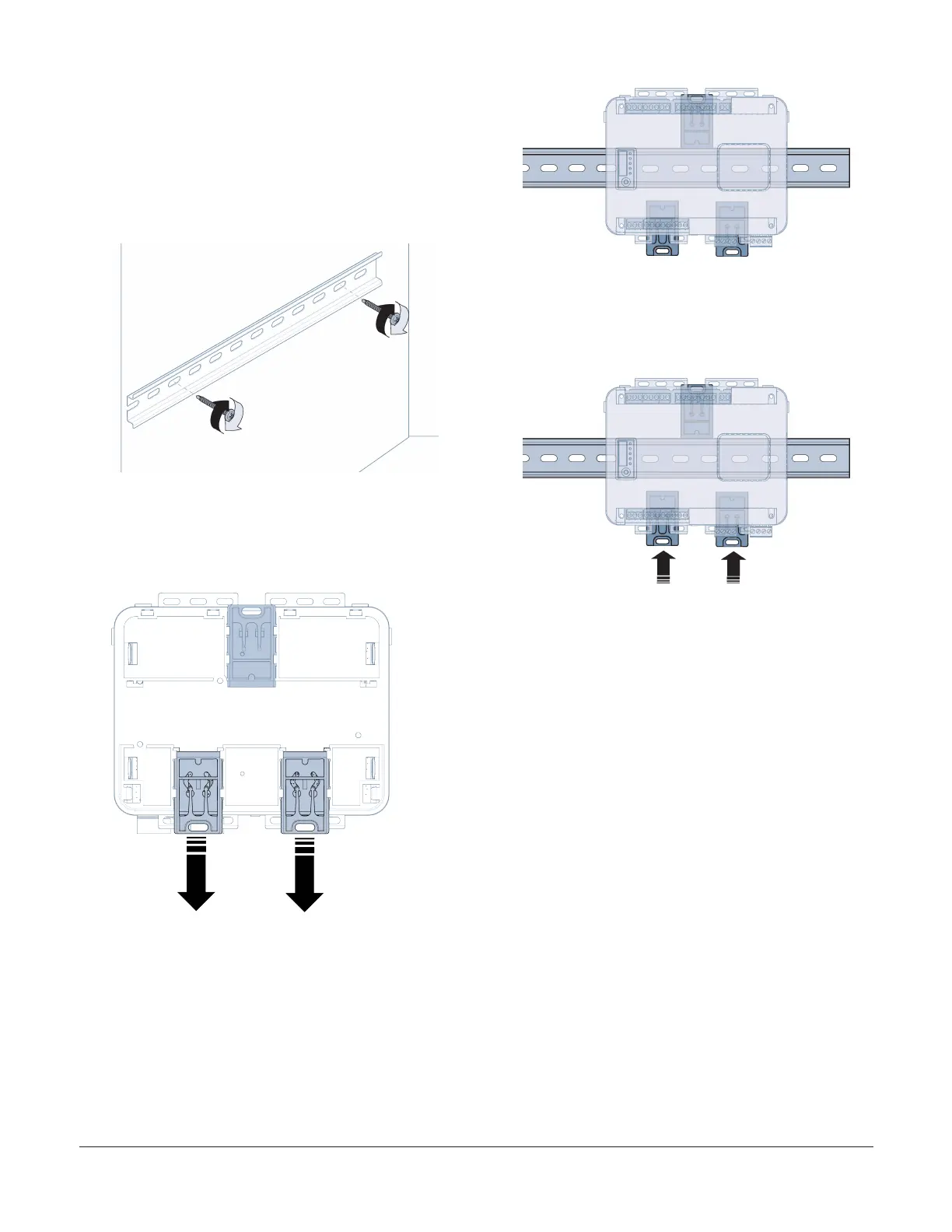

1. Horizontally mount a 20 cm (8 in.) section of 35
mm (1.3 in.) DIN rail.
2. On the back of the controller, extend the two
mounting clips as illustrated.
3. Position the controller so that the two extended
mounting clips are facing downwards, and place
the controller on the DIN rail.
4. Push the bottom mounting clips up to secure the
controller on the DIN rail.
ATC1510 Advanced Terminal Unit Controller Installation Guide2
