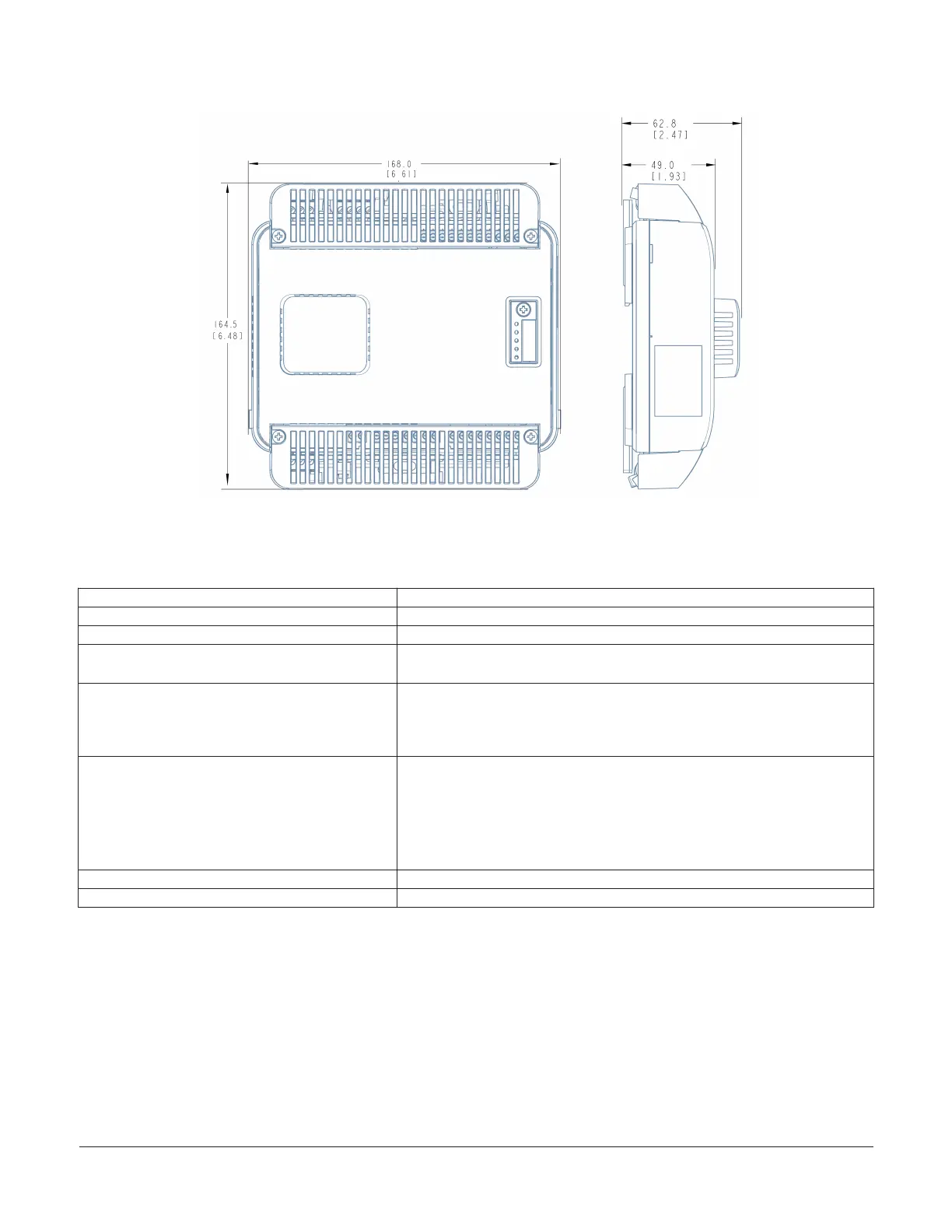

Figure 8: Controller with IP20 Cover Kit Dimensions, mm (in.)
Technical Specifications
Table 8: Advanced Terminal Unit Controller
Product Code Numbers LC-ATC1510-0 Advanced Terminal Controller, 15 point
Supply Voltage 240 VAC, 50/60 Hz (L1, L2)
Power Consumption 20 VA Max
Ambient Conditions
Operating: 0°C to 40°C (32°F to 104°F); 10% to 95% RH noncondensing
Storage: -40°C to 85°C (-40°F to 185°F); 5% to 95% RH noncondensing
Addressing
BACnet
®
MS/TP: Valid field controller device addresses 4–127 (Device addresses
0–3 and 128–255 are reserved and not valid field controller addresses.)
N2: Valid field controller device addresses 1 to 254 (Device address 255 is
reserved for the broadcast address and not a valid field controller address.)
Communications Bus (FC, SA, USB)
BACnet MS/TP and N2 through RS-485:
FC Bus between the supervisory controller and field controller
SA Bus between controller, network sensors and other sensor/actuator devices,
includes a 15 VDC, 210 mA power supply for bus devices
Same circuit as modules logic circuitry +15 VDC, 200 mA SELV, Limited Power
(<15 Watts), Class 2
Processor Renesas
®
RX631 32-bit microcontroller, 2 MB Flash, 128 KB RAM
External Memory 16 MB flash memory and 8 MB RAM
ATC1510 Advanced Terminal Unit Controller Installation Guide18
