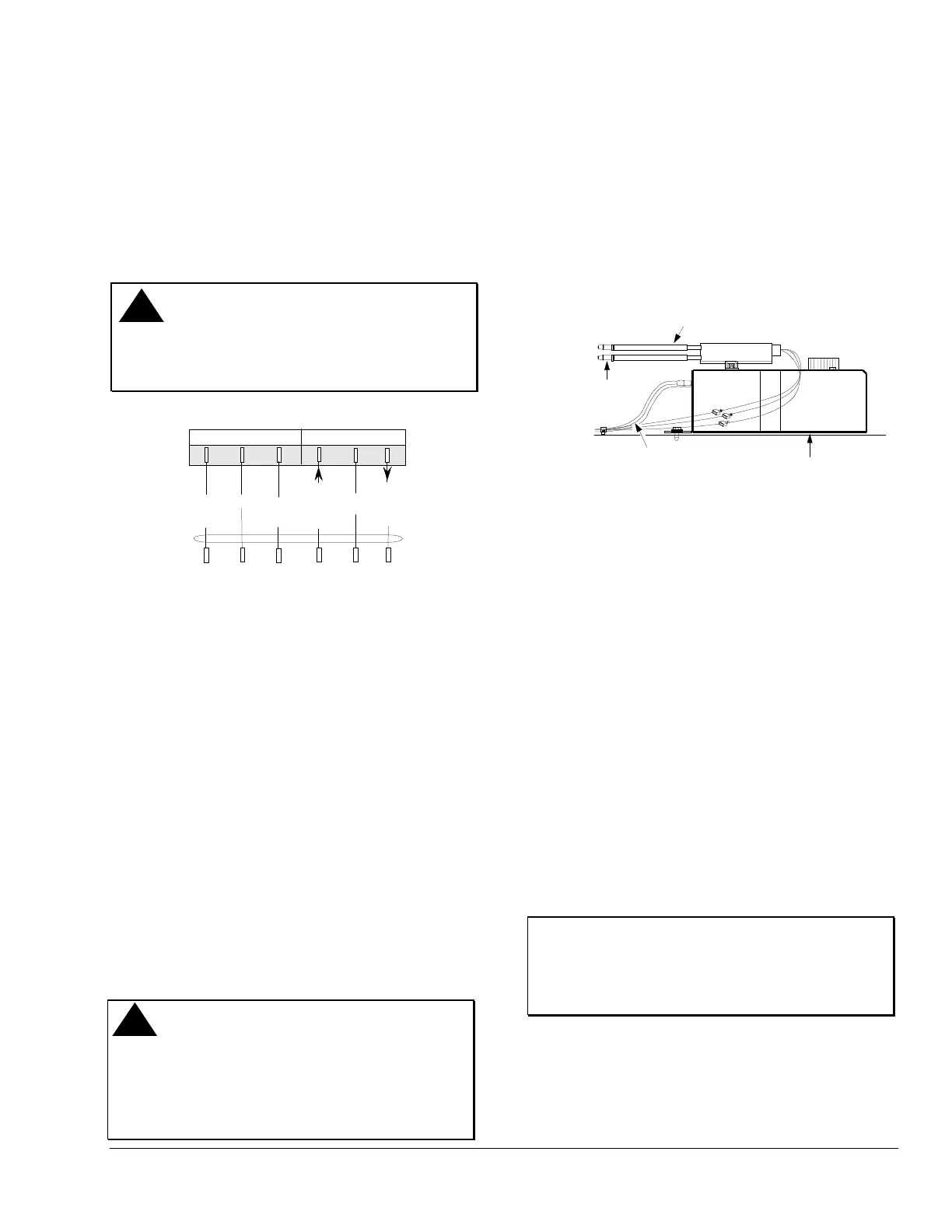

EDA-2040/ATP-2040 Electric Damper Actuator Installation Technical Bulletin 7
C
onnections
Electrical Wiring
The ATP-2040 requires a 24 VAC control signal and
is compatible with a variety of controllers. All wiring
must be in accordance with National Electrical Code
and applicable local code requirements.
!
CAUTION: Disconnect all power supplies
to the system before wiring to
avoid damage to equipment or
possible electrical shock.
CCW COM CW IN GND OUT
24
VAC
W hite/ W hite W hite/ Red Black Blue
Oran
g
e Brown
EDA-2040
DPT-2015
24
VAC
CBL-2000 Wiring Harness
0.5-4.5
VDC
(
+
)
14.5-17
VDC
(
+
)
Common
(
-
)
Figure 15: Wiring Diagram
A CBL-2000 Wiring Harness is packaged with the
ATP-2040 or can be ordered separately for the
EDA-2040.
Air Pressure (ATP-2040 only)
The pressure sensing probe provided with the VAV
box must be connected to the DPT-2015 using field
supplied 1/4 in. O.D. tubing as follows:
1. Locate the pressure sensing probe provided with
the VAV box and cut two lengths of tubing for
connection to the barbed ports on the
DPT-2015. (See Figure 16.)
2. Connect the tubing from the pressure sensing
probe to the corresponding high and low,
indicated as (-) LO, pressure ports on the
DPT-2015.
!
CAUTION: Equipment Damage Hazard.
Overpressure limit is 15 in.
W.C. Do not blow into ports
to test the operation as this
may damage the sensing
element.
Note: If the pressure ports are not pointing down,
route the tubing so a portion of it is lower
than the DPT-2015. This creates a trap that
prevents any condensation from entering the
sensor. Also, do not make any sharp bends
in the tubing. This could collapse the tube
and block the pressure path.
EDA-2040 Mounted
to VAV Box
DPT-2015-0
1/4 in. Barbed Ports
for Field Supplied
Tubin
g
CBL-2000 Cable Harness
for Connection to VAV
Controller
Note: Upper port
is
(
-
)
LO.
1/4 in. O.D. Tubin
g
Figure 16: Air Pressure Connectors
C
ommissioning
EDA-2040
After wiring is completed, apply power to the
controller and provide signals to the actuator to drive
it at least one complete cycle open and close.
DPT-2015
1. Perform the checkout procedure provided in the
controller instructions to ensure proper operation
of the transmitter.
2. When used with a Johnson Controls VAV Series
controller, the DPT-2015 must be set up and
zeroed using HVAC PRO for Windows. Refer
to the
Variable Air Volume Controller Technical
Bulletin
in the Controllers Technical Manuals
(FANs 636.3 or 1628.2)
for details.
IMPORTANT: Final commissioning should be
performed when the transmitter is
at normal operating temperatures
and mounted in its normal
operating position.
