13 FX Supervisory Controller Installation Instructions
FX-20/FX-60
LP-FXPM
(cover removed)
Dedicated 24 VAC transformer
Neither side of secondary tied
to earth ground.
Line voltage
(Mains)
24 VAC
OR
24 V D C
FIG:BrdLyt
24 V DC Pow er Supp ly
(polarity not critical)
Neither side tied to
earth ground.
Earth Ground

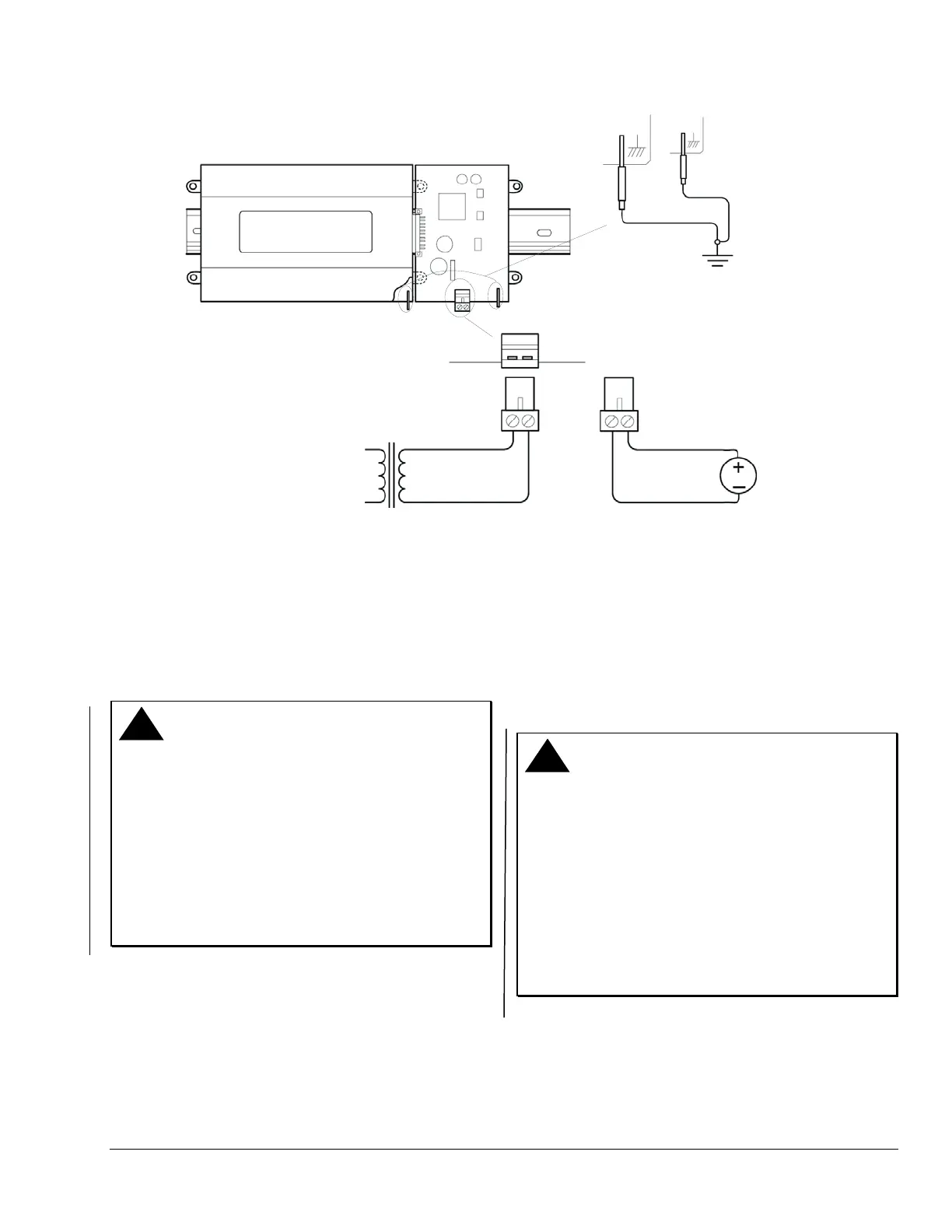

Figure 7: LP-FXPM Power Module Wiring Connections
Located at the bottom of the power module is a
2-position power connector and an earth ground spade
lug (see Figure 7). Connect the supplied earth ground
wire to a nearby earth ground point. Unplug the power
connector plug from the module and make
connections to it as shown in Figure 7.
!
CAUTION: Risk of Property Damage.
Do not apply power to the system before checking
all wiring connections. Short circuited or improperly
connected wires may result in permanent damage to
the equipment.
MISE EN GARDE: Risque dégâts matériels.
Ne pas mettre le système sous tension avant d'avoir
vérifié tous les raccords de câblage. Des fils formant
un court-circuit ou connectés de façon incorrecte
risquent d'endommager irrémédiablement
l'équipement.
Power consumption depends on installed accessories
and option cards, and may vary from:
 FX20/FX60 with power module alone: approximately
8.5 VA (AC) or 8.5 W (DC)
 FX20/FX60 with power module and 4 NDIO modules,
plus option cards: up to 20 VA (AC) or 20 W (DC)
LP-FXPM263-0 Line Voltage Power Module
Using the LP-FXPM263-0 module lets you power the
FX20/FX60 (and, if installed, the NDIO16 modules)
from AC line power, with a universal input range from
90-263 VAC. If installing NDIO16 modules, install the
power module as the last (end) module in the chain
(see Figure 5).
!
WARNING: Risk of Electric Shock.
Disconnect power supply before making electrical
connections. Contact with components carrying
hazardous voltage can cause electric shock and
may result in personal injury or death.
AVERTISSEMENT: Risque de décharge
électrique. Débrancher l'alimentation avant de
réaliser tout branchement électrique. Tout contact
avec des composants conducteurs de tensions
dangereuses risque d'entraîner une décharge
électrique et de provoquer des blessures graves,
voire mortelles.
Note: The 6-pin connector of the LP-FXPM263-0 is
not used with a FX20/FX60.
