FCP-NA-701, FCP-PA-701
24-11482-00006 Rev. —
4
Preset conguration proles
The FCP thermostat includes 20 preset conguration proles. You can use these proles to quickly congure essential settings, such as
system type, remote sensor, and pipe sensor.
The thermostat screen shows the preset conguration menu on the rst power up or after a factory reset. To select a conguration
prole, use the Up or Down buttons to scroll through the conguration proles, then press Mode to conrm your selection. Table 2 lists
the preset conguration proles.
Setup and adjustments

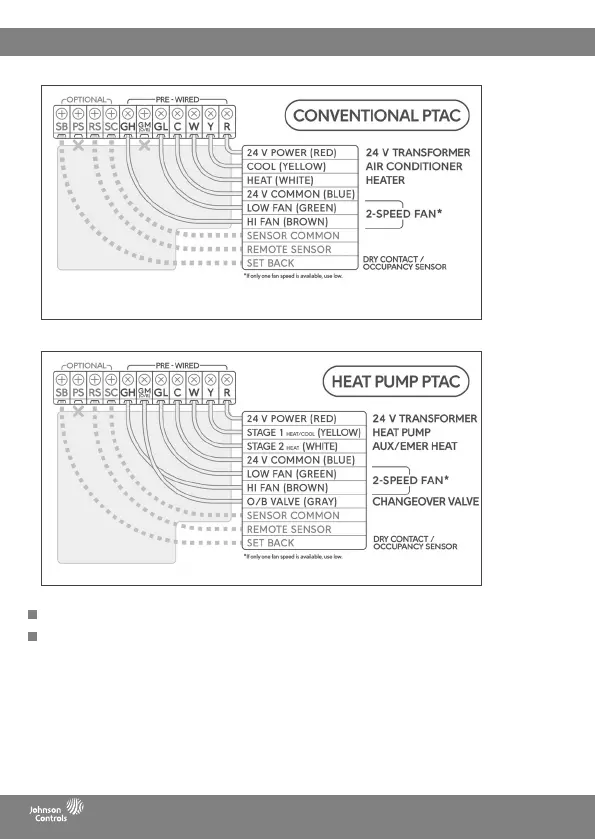

Figure 9: Conventional PTAC
Figure 10: Heat pump PTAC
