Johnson Controls GH-5000 User Manual

130 4280 010 E
Spare Parts, Replacement Actuators
Electro- Hydraulic Actuator
Gas Valve
Code Number * (Size)
Replacement
Actuator
Code Number *
Replacement
Terminal - Box
Code Number
Terminal - Box
Function
AH – 5100 – 01_0 130 3430 111 On-Off
AH – 5100 – 03_0 130 3430 131 On-Low-Off
AH – 5100 – 05_0 130 3430 151 Ignition-On-Low-Off
AH – 5109 – 04_0 130 3431 141 On-Low-Off+CPI **
AH – 5109 – 06_0 130 3431 161 On-Off+CPI **
GH – 51.. – 2._. (¾ inch / Rp ¾)
GH – 51.. – 3._. (1 inch / Rp 1)
GH – 51.. – 5._. (1½ inch / Rp 1½)
GH – 51.. – 1._. (1½ inch / DN 40)
AH – 5109 – 09_0 130 3431 191 On-Off+CPI ** +MR ***
AH – 5200 – 01_0 130 3430 211 On-Off
AH – 5200 – 03_0 130 3430 231 On-Low-Off
AH – 5200 – 05_0 130 3430 251 Ignition-On-Low-Off
AH – 5209 – 04_0 130 3431 241 On-Low-Off+CPI **
AH – 5209 – 06_0 130 3431 261 On-Off+CPI **
GH – 52.. – 6._. (2 inch / Rp 2)
GH – 52.. – 2._. (2 inch / DN 50)
GH – 56.. – 7._. (2½ inch / Rp 2½)
GH – 56.. – 3._. (2½ inch / DN 65)
GH – 56.. – 8._. (3 inch / Rp 3)
G
H
–
56
..
–
4. .
(3
in
c
h
/
DN
80)
AH – 5209 – 09_0 130 3431 291 On-Off+CPI ** +MR ***
AH – 5400 – 01_0 130 3430 411 On-Off
AH – 5400 – 03_0 130 3430 431 On-Low-Off
AH – 5400 – 05_0 130 3430 451 Ignition-On-Low-Off
AH – 5409 – 04_0 130 3431 441 On-Low-Off+CPI **
AH – 5409 – 06_0 130 3431 461 On-Off+CPI **
GH – 54.. – 5._. (4 inch / DN 100)
GH – 54.. – 6._. (5 inch / DN 125)
GH – 54.. – 7._. (6 inch / DN 150)
GH – 57.. – 5._. (4 inch / DN 100)
GH – 57.. – 6._. (5 inch / DN 125)
G
H
–
5
7..
–
7. .
(6
in
c
h
/
DN 1
50)
AH – 5409 – 09_0 130 3431 491 On-Off+CPI ** +MR ***
* Excluding Voltage, complete Code Number by inserting a 1 or 3 for the blank digit.
1 = 230 VAC (50/60 Hz) models and 3 = 120 VAC (50/60 Hz) models.
** CPI = Closed Position Indicator
*** MR = with switch for manual restart
Gasket II
Valve Cover
Filter
Valve Seat Plug
Gasket I
Flanged
Ring
Grub Screw
Extension
Piece

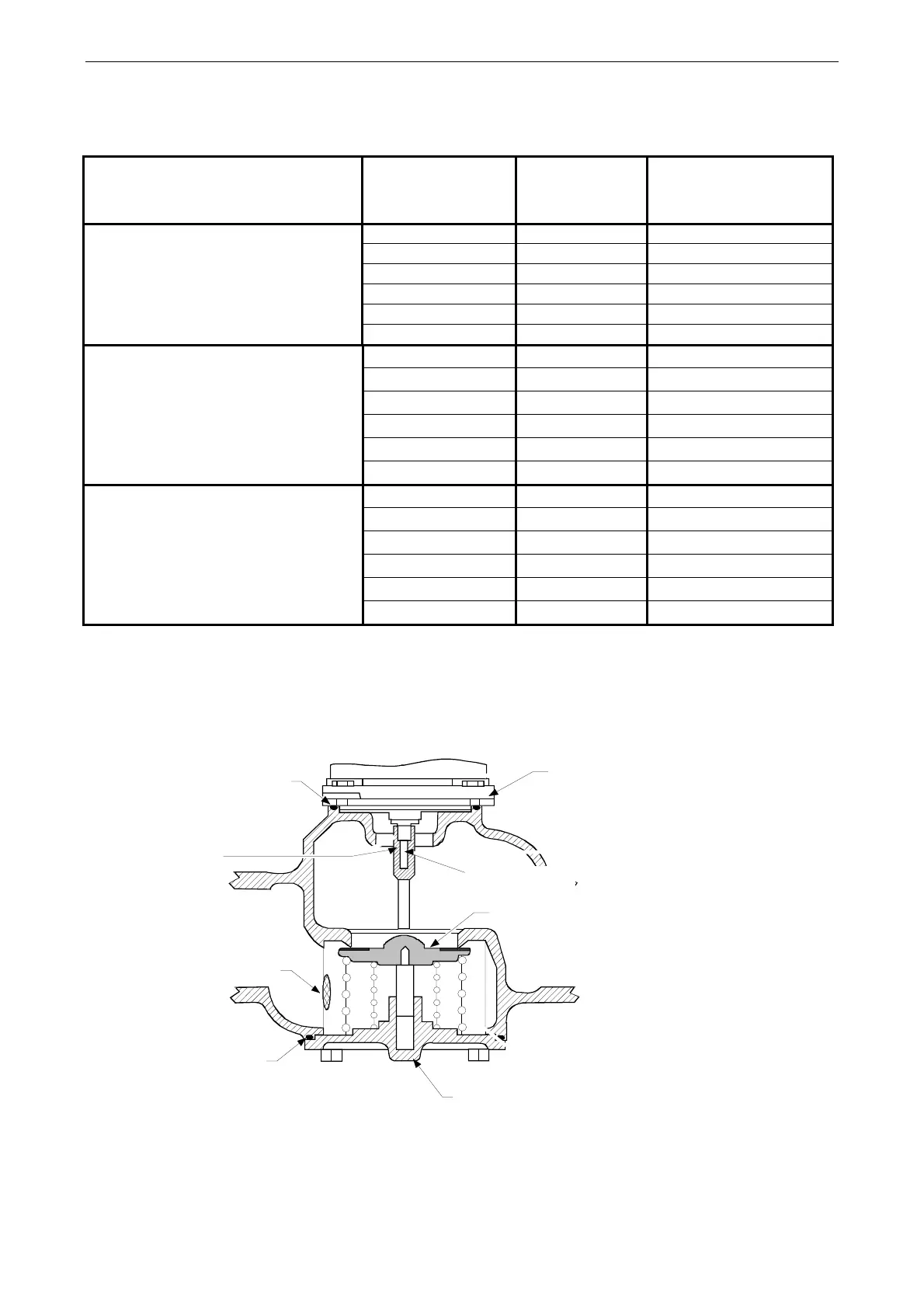

Figure 7: Detailed drawing, spare parts
