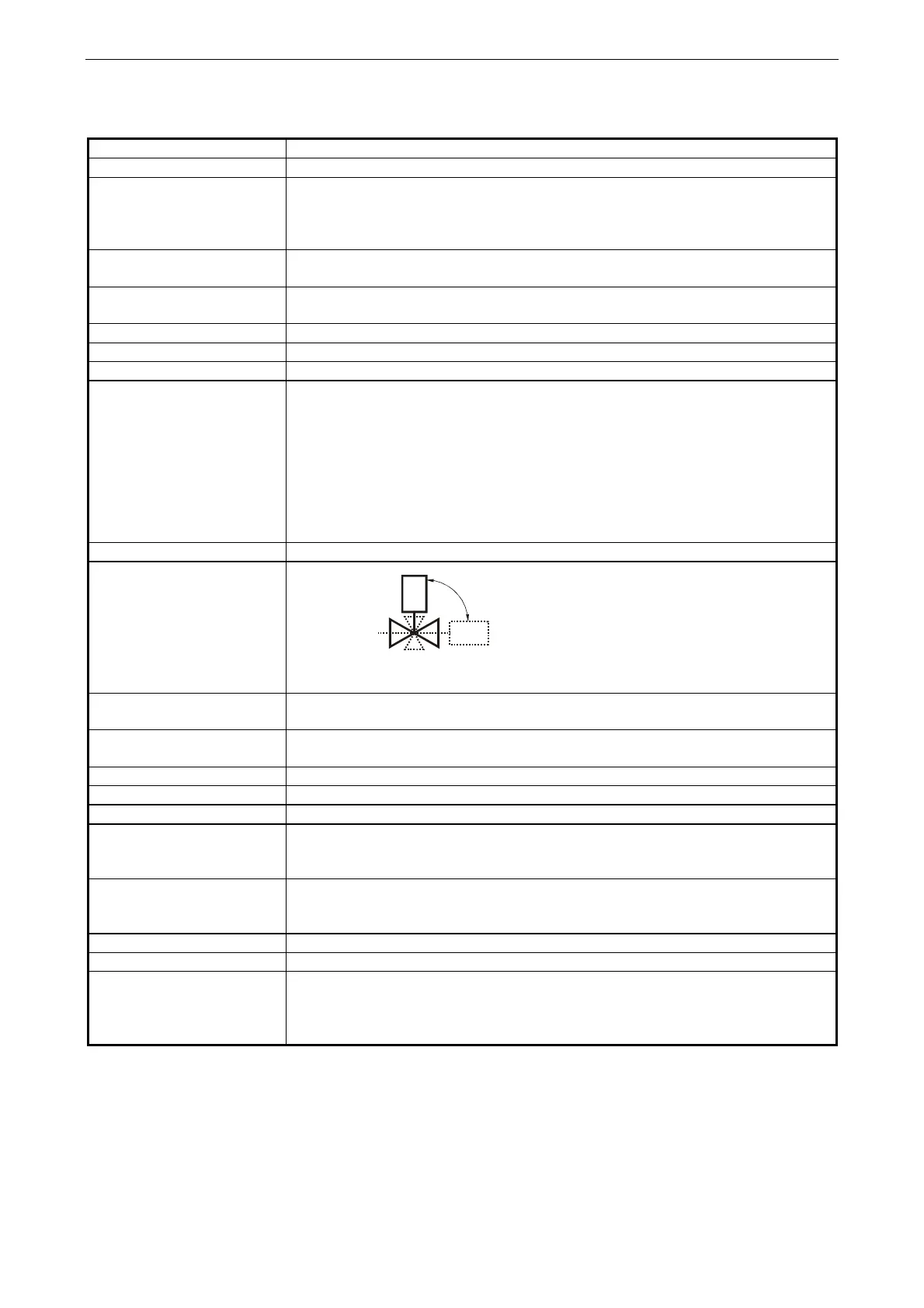

Specifications
Product
GH-5000 Electro-Hydraulic Actuator Valve
Media
Gas families to DVGW-Arbeitsblatt G 260/I. 1., 2. and 3. Gas family.
Max. operating pressure
Rp ¾ - 2 ½ & DN 40-65 1000 mbar
Rp 3 & DN 80-100 800 mbar
DN 125 650 mbar
DN 150 350 mbar
Permissible ambient
temperature
-10 to +60°C (14 to 140°F)
Valve sizes
Threaded connections Rp ¾, 1, 1 ½, 2, 2 ½, 3: ISO 7-1:1994
Flanges DN 40, 50, 65, 80, 100, 125, 150: ISO 7005 PN 16, DIN EN 1092-2
Valve torsion group
Group 2
Valve class
A
Pressure taps
Valve body: Rp 1/4 (ISO 7-1:1994)
Materials
Valve body
: die-cast aluminium EN AC-43400 or
EN AC-47100, DIN EN 1706
(Rp ¾ to 2 and DN 40-50)
cast iron EN-GJS-400-15, DIN EN 1563
(Rp 2½ to 3 and DN 65-80 and
valves GH-57.. DN100-150)
cast iron EN-GJL-250, DIN EN 1561
(valves GH-54.. DN100-150)
Seals, diaphragm: NBR
Filter
Standard Strainer: 1 mm (0.04 in). mesh (steel)
Mounting position
Limited horizontal and vertical
90° max. from
verticaln
ATTENTION: See also Valve position label!
Operating voltages
120 V +6% / -10% 50/60 Hz
230 V +6% / -10% 50/60 Hz
Power consumption
200 W on opening action
15 W in opened state
Compression fitting
EN 50262
Enclosure
IP 54 (NEMA 1)
Operating time rating
100% ED
Duty cycles
3 min
-1
(Rp ¾ - 1½, DN 40)
2 min
-1
(Rp 2-3, DN 50-80)
1 min
-1
(DN 100-150)
Opening time
Rp ¾ - 1½, DN 40: < 6,5 s
Rp 2-3, DN 50-80: < 8 s
DN100-150: < 13 s
Closing time
< 1 s
Agency Listing
EC-Type Approval
Specification Standards
Pressure Equipment (97/23/EC)
Appliances burning gaseous fuels (90/396/EC): EN 161
Electromagnetic compatibility (89/336/EC)
Low voltage equipment (73/23/EC)
The performance specifications are nominal and conform to acceptable industry standards. For application at
conditions beyond these specifications, consult the local Johnson Controls office. Johnson Controls, Inc. shall not be
liable for damage resulting from misapplication or misuse of its products.
We reserve the right to make technical changes without warning.
Johnson Controls SA/NV - Leuvensesteenweg 248D - B-1800 Vilvoorde - +32(2) 709 40 00 - www.johnsoncontrols.be
