FORM 145.05-EG2 (618)
12
JOHNSON CONTROLS

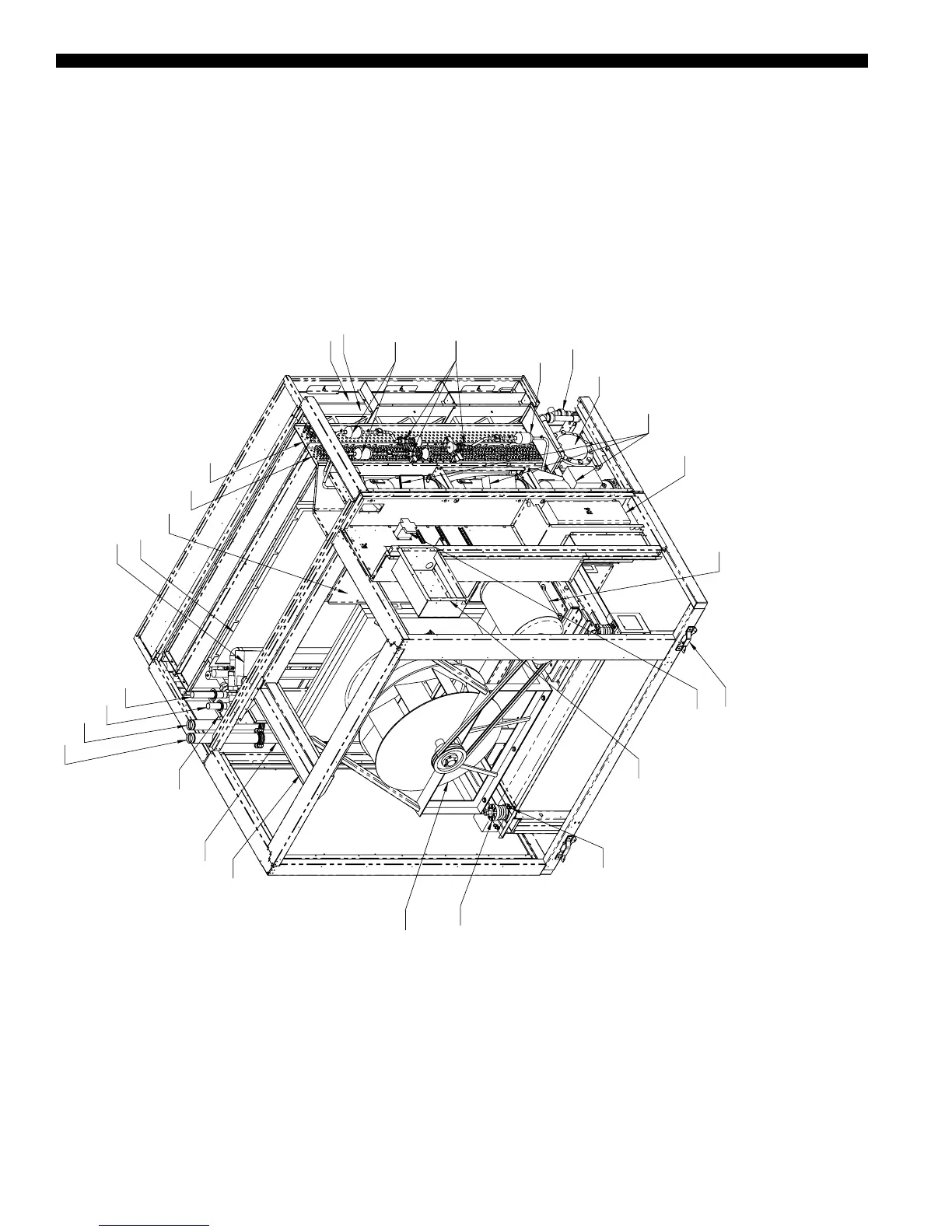

Features and Options (Cont’d)
*OPTIONAL
**OPTIONAL HOT WATER OR
ELECTRIC HEA
T
INTERNAL FAN ISOLATIO
N
SEISMIC ISOLATION*
AIR SAFE-OFF
ELECTRIC HEATER FRAME**
HOT WATER IN**
HOT WATER OUT**
CONDENSER WATER IN
CONDENSER WATER OUT
HOT WATER VALVE**
HOT WATER COIL**
LIFTING LUGS (4)
FAN INLET & COIL CLEANING ACCESS DOOR
EVAPORATOR COIL
WATER ECONOMY COIL*
FILTER DRIER
SHELL & TUBE CONDENSERS
STANDARD AIR FILTERS
THERMOSTATIC EXPANSION VALVES
HIGH EFFICIENCY FILTERS*
FILTER DRIERS
CONDENSATE DRAIN TRAP
ELECTRICAL CONTROLS
VARIABLE FREQUENCY DRIVE*
ELECTRIC HEAT CONTROLS**
FAN MOTOR & FRAME
PLENUM FAN
COMPRESSORS
CONDENSER WATER VALVES
