Johnson Controls L-Series - Water Pressure Drop

FORM 145.05-EG2 (618)
JOHNSON CONTROLS
65

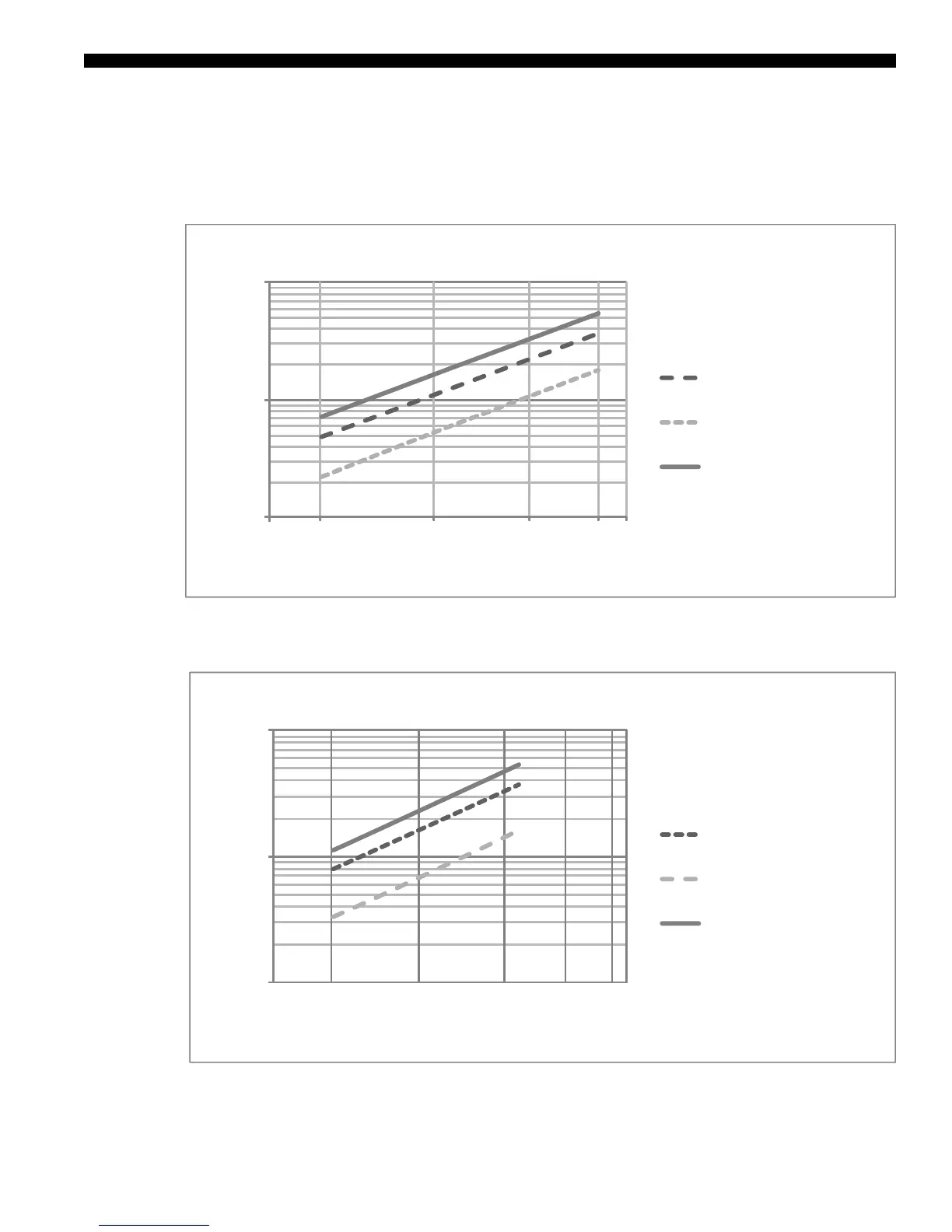

Water Pressure Drop
CONDENSER WATER PRESSURE DROPS (INCHES W.C.)
1
10
100
40 50 160
Water Pressure Drop (in w.c.)
Water Flow (GPM)
LSWU025-040 Water Pressure Drop
Condenser Water PD
Water Economizer PD (when
acve)
Condenser + Water Econ PD
1
10
100
75 100 200
Water Pressure Drop (in w.c.)
Water Flow (GPM)
LSWU050-060 Water Pressure Drop
Condenser Water PD
Water Economizer PD (when
acve)
Condenser + Water Econ PD
