CONDENSER WATER PRESSURE DROPS (INCHES W.C.)
1.00
10.00
100.00
120 320
Water Pressure Drop (in w.c.)
Water Flow (GPM)

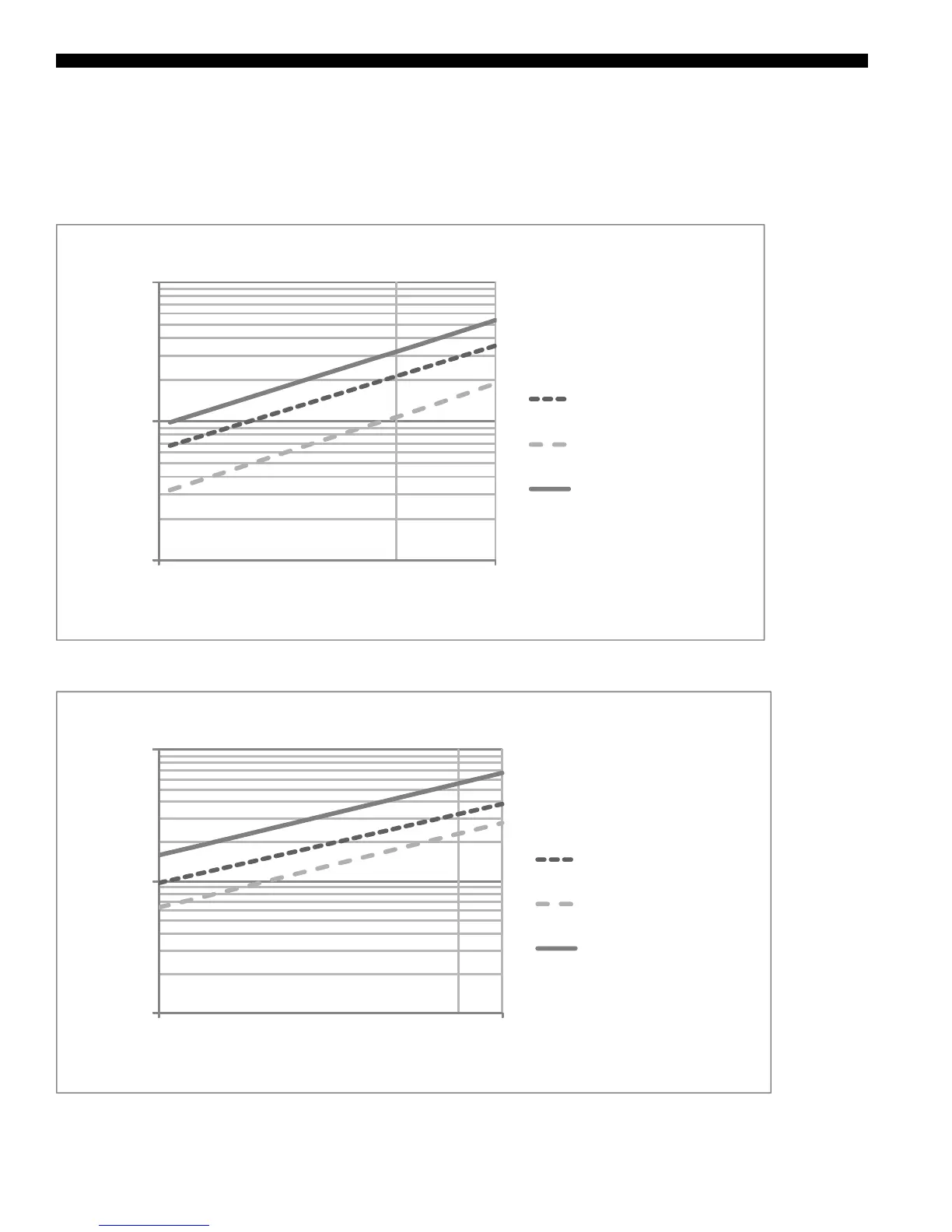

LSWU070-080 Water Pressure Drop
Condenser Water PD
Water Economizer PD (when
acve)
Condenser + Water Econ PD
1.00
10.00
100.00
190 420
Water Pressure Drop (in w.c.)
Water Flow (GPM)
LSWU095-105 Water Pressure Drop
Condenser Water PD
Water Economizer PD (when
acve)
Condenser + Water Econ PD
Water Pressure Drop (Cont’d)
