Johnson Controls L-Series User Manual

FORM 145.05-EG2 (618)
JOHNSON CONTROLS
37

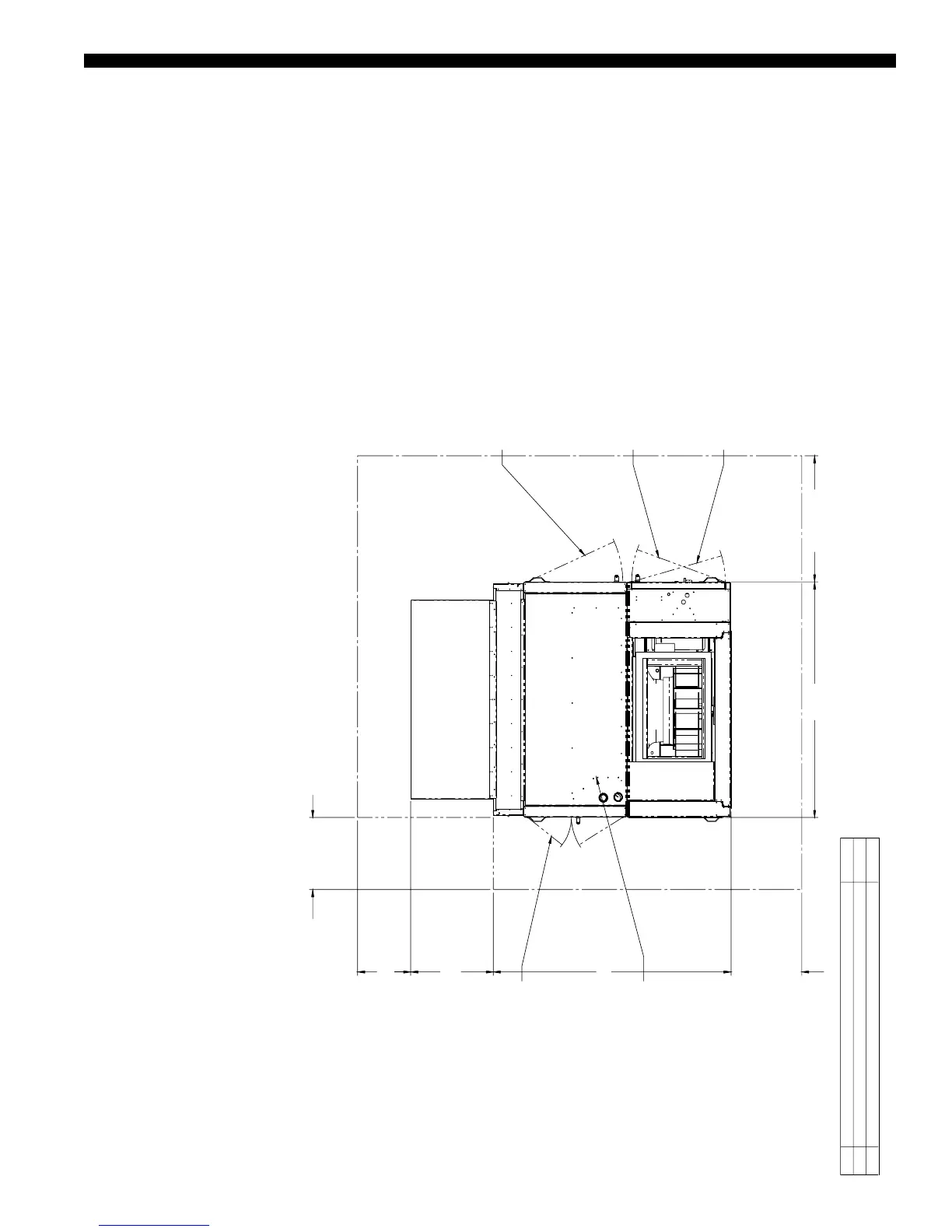

SOUND ATTENUATING PLENUM SERVICE CLEARANCE
LSWU025–040 MODELS
REAR
SOUND ATTENTUATING
PLENUM
FILTER SECTION
COIL SECTION
FAN SECTION
FRONT
LEFT
24” CLEARANCE REQUIRED ON
STANDARD UNITS; 3” CLEARANCE
REQUIRED ON UNITS WITH RIGHT
AND REAR ACCESS ONLY OPTION
18” CLEARANCE
28”
“A”
42”
CLEARANCE
78.37”
OPTIONAL WHEN CLEARANCE IS
AVAILABLE - REMOVABLE DOORS
WITH HINGES, ONE DOOR HANDLE,
AND ONE TOOL-OPERATED LATCH
REMOVABLE INTERNAL PANEL IS
PROVIDED FOR ACCESS TO WATER
VALVES WHEN NO LEFTSIDE
CLEARANCE IS REQUIRED
24” CLEARANCE REQUIRED ON
STANDARD UNITS; 3” CLEARANCE
REQUIRED ON UNITS WITH RIGHT
AND REAR ACCESS ONLY OPTION
REMOVABLE DOORS WITH HINGES, ONE DOOR HANDLE, AND TOOL- OPERATED LATCH
ENTRY DOOR (UNDER) ST
ANDARD 32” WIDE
X 44” HIGH NOMINAL WITH ONE DOOR HANDLE AND TOOL-OPERATED LATCH
ELECTRICAL PANEL DOOR (OVER), NONREMOVABLE DOORS WITH HINGES, ONE DOOR HANDLE, AND TOOL-OPERATED LATCH
FILTER OPTIONS
NO.
1 2
4” FILTER
“A”
76.43 80.684” PRE-FILTER + 4” HIGH EFFICIENCY FILTER
