Air Pressure Drops (Cont’d)

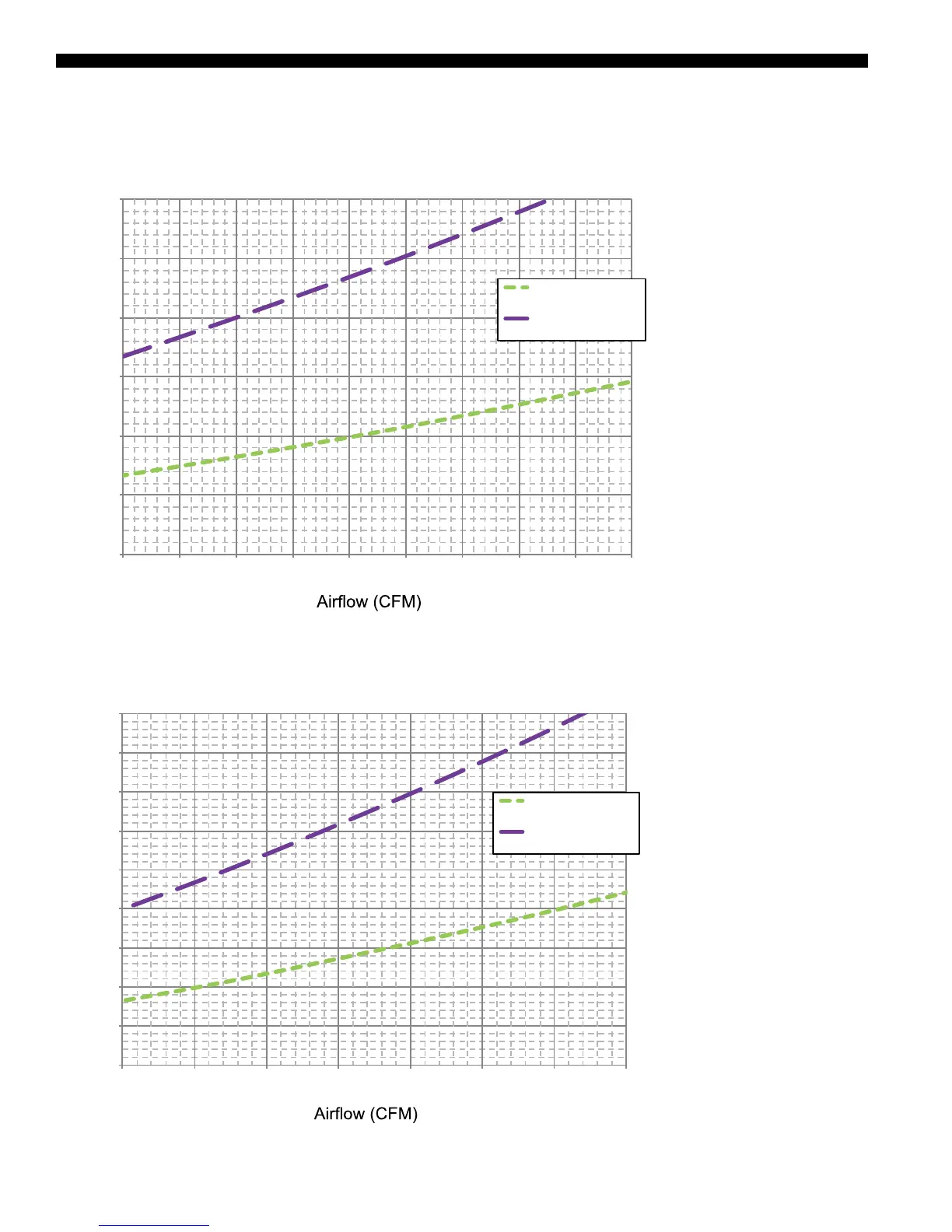

LSWU025 Air Pressure Drops Across Clean Filters
0.000
0.050
0.100
0.150
0.200
0.250
0.300
6,000 6,500 7,0007,500 8,000 8,5009,000 9,50010,00010,500
4" (MERV8)
4" +4"(MERV 13 +
MERV 8)
Air Pressure Drop (inch w.c.)
LSWU032 Air Pressure Drops Across Clean Filters
0.000
0.050
0.100
0.150
0.200
0.250
0.300
0.350
0.400
0.450
7,0008,000 9,00010,00011,00012,00013,00014,000
4" (MERV8)
4" +4"(MERV 13 +
MERV 8)
Air Pressure Drop (inch w.c.)
