Air Pressure Drops (Cont’d)

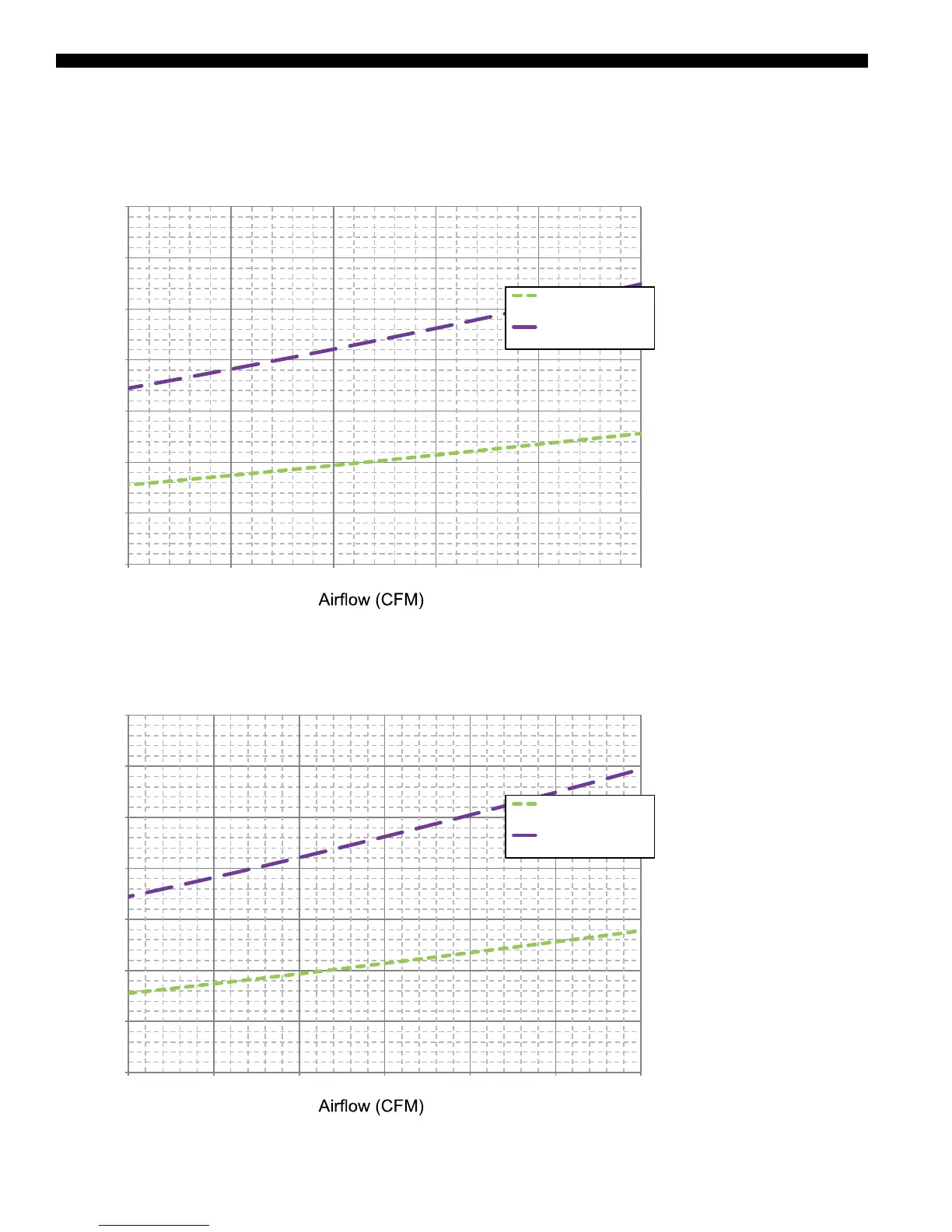

LSWU095 Air Pressure Drops Across Clean Filters
0.000
0.100
0.200
0.300
0.400
0.500
0.600
0.700
24,000 26,000 28,000 30,000 32,000 34,000
4" (MERV8)
4" +4"(MERV 13 +
MERV 8)
Air Pressure Drop (inch w.c.)
LSWU105 Air Pressure Drops Across Clean Filters
0.000
0.100
0.200
0.300
0.400
0.500
0.600
0.700
24,000 26,000 28,000 30,000 32,00034,00
03
6,000
4" (MERV8)
4" +4"(MERV 13 +
MERV 8)
Air Pressure Drop (inch w.c.)
