8 TEC1100 Series Thermostat Technical Bulletin

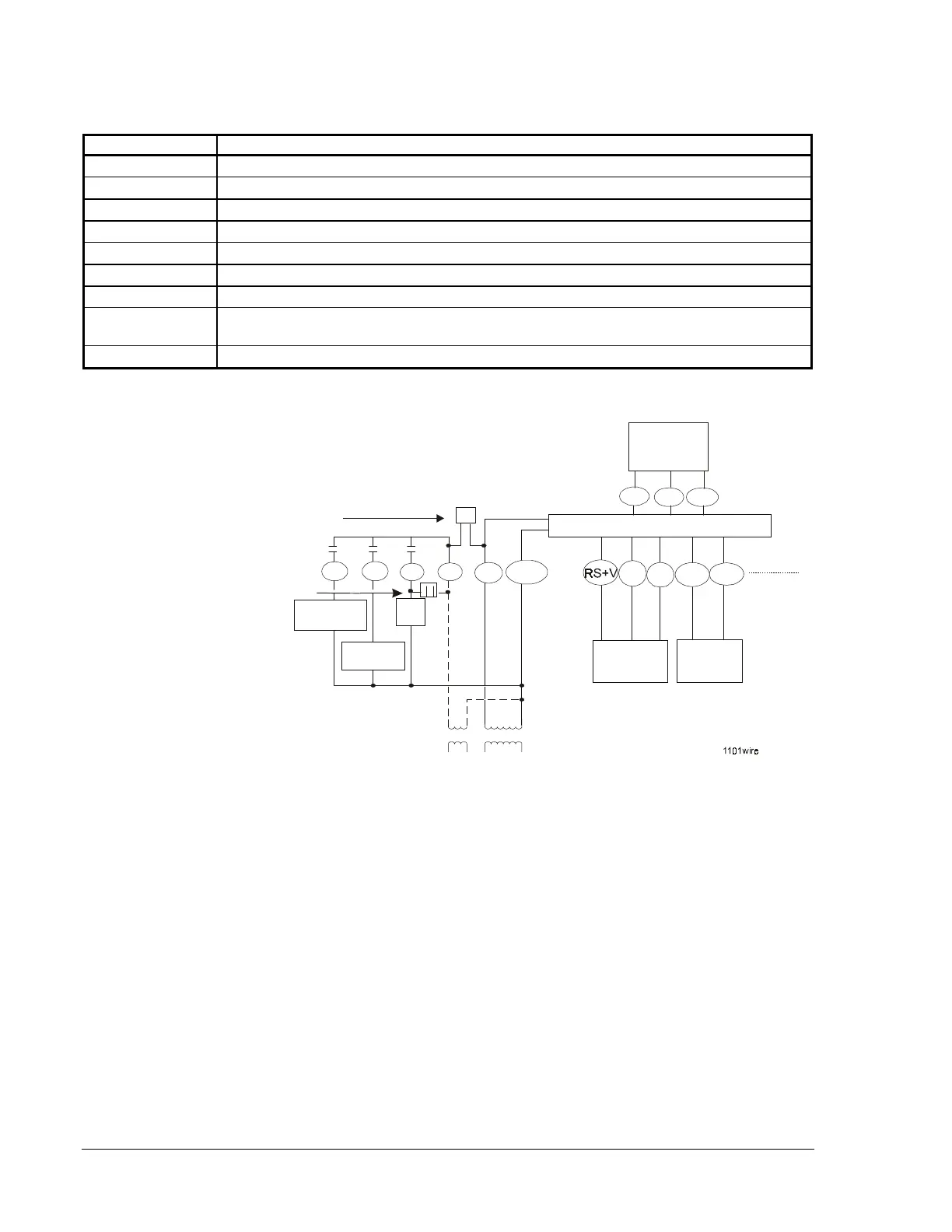

Table 6: TEC1101 Single-Stage Output Terminal Designations
Terminal Function
W1
Energizes on call for heating.
Y1
Energizes on call for cooling.
G Energizes fan on call for heating or cooling or by pressing the Fan button.
R
Provides independent switching voltage.
24V
Provides 24 VAC from equipment transformer.
24V(c)
Provides 24 VAC (common) from equipment transformer.
CLK1, CLK2
Connects remote clock/timer for alternate setpoints.
RS2, RS1, RS+V
Connects outdoor air temperature or indoor remote sensors; refer to instructions included
with sensors.
N2+, N2-, REF
Metasys N2 Bus connections
If the transformer (T2) is to power all of the loads, the yellow
pin jumper must be inserted (factory position), which connects
R to 24 V. The jumper is located on the electronics board above
the relays. If a separate 24 V transformer (T1) is to be used,
it must be connected between R and 24 V(c), and the jumper
should not be connected between R and 24 V.
Metasys
CPN, FAC,
or NCM
N2+
N2- REF
Electronics
Rs2
Rs1
CLK1
CLK2
Remote
Sensor
(if used)
Remote
Clock/Timer
(if used)
Jumper
T1 T2
First Stage
Cooling
First Stage
Heat
Fan
W1
Y1
G
R
24 V
24 V(c)
Thermostat
Equipment
Optional Plenum
Temperature Sensor
Figure 4: TEC1101 Single-Stage Wiring Schematic
