PEAK® OEM 18 240 Volt SMART Equipment Controller Installation Instructions
15
Terminal Wiring Guidelines, Functions, Ratings, and Requirements
Input and Output Wiring Guidelines
Table 3 and Table 4 provide information and guidelines about the functions, ratings, and requirements for the
controller input and output terminal guidelines for determining proper wire sizes and cable lengths.
In addition to the wiring guidelines in Table 3 and Table 4, observe these guidelines when wiring controller inputs
and outputs:
• Run all low-voltage wiring and cables separate from high-voltage wiring.
• All input and output cables, regardless of wire size or number of wires, should consist of stranded, insulated,
and twisted copper wires.
• Shielded cable is not required for input or output cables.
• Shielded cable is recommended for input and output cables that are exposed to high electromagnetic or radio
frequency noise.
• Inputs/outputs with cables less than 30 m (100 ft) typically do not require an offset in the software setup. Cable
runs over 30 m (100 ft) may require an offset in the input/output software setup.
24 VAC Triac
Output
CO
240 VAC Relay
Output
RO

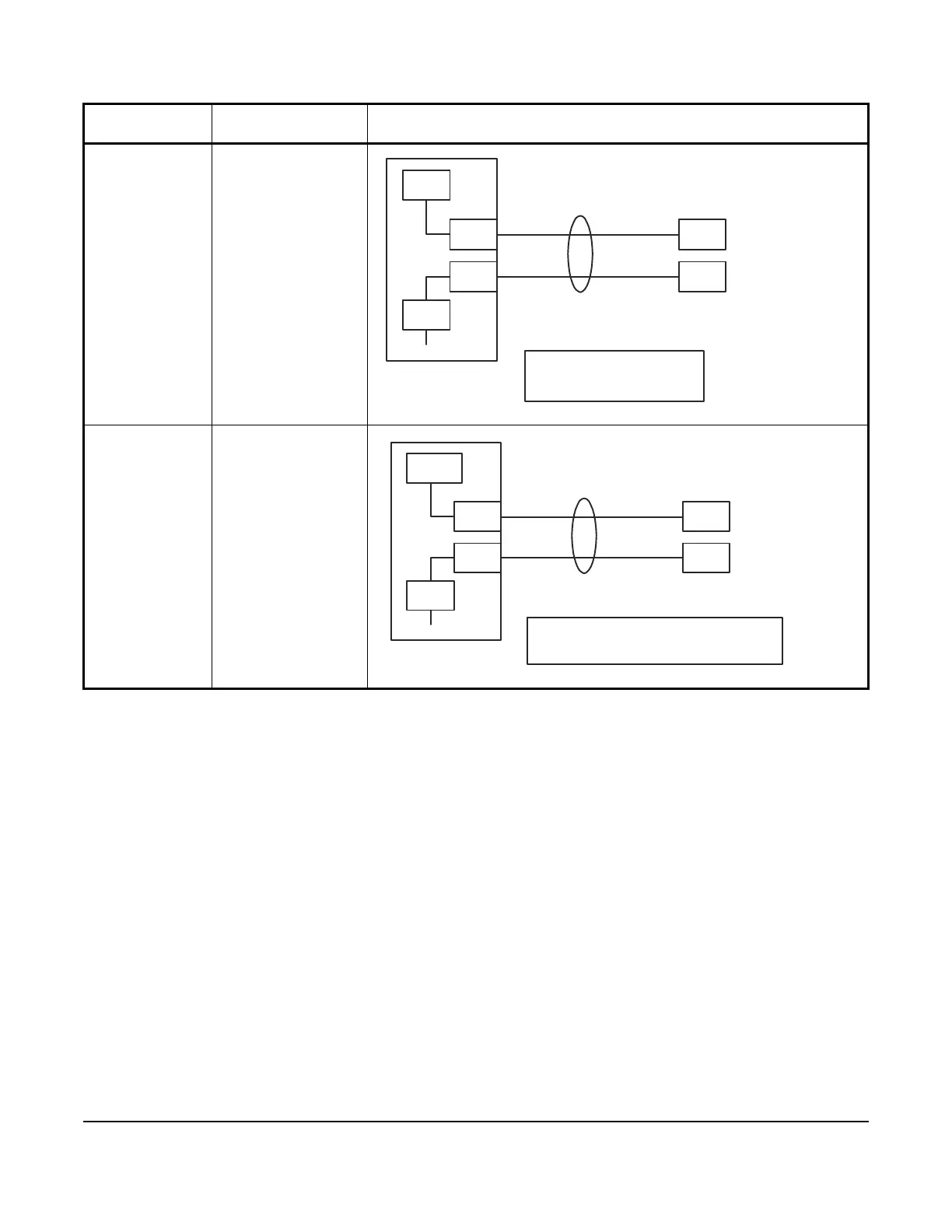

Table 2: Termination Details (Part 5 of 5)
Type of Field
Device
Type of Input/Output Termination Diagrams
OCOMn
Controller
Field Devices
Note : Rated load of 0.5
resistive Amps (max)
COM
Controller
Note : Rated load per Table, refer
Binary Output (Relays)
COM
To Next Page
