VFD68 Variable Frequency Drives (575 VAC)
16
Note: Use UL-Listed, copper stranded wire with insulation rated at 75°C (167°F) for wiring the high-voltage
supply to the drive (R/L1, S/L2, T/L3) and wiring the high-voltage drive output (U, V, W) to the motor.
5. Connect earth ground wiring to the earth ground terminals on the VFD68 Drive and on the motor.
6. Replace the high-voltage wiring cover.
Note: When replacing the high-voltage cover, carefully space and position the leads through the vents or
wire slots.

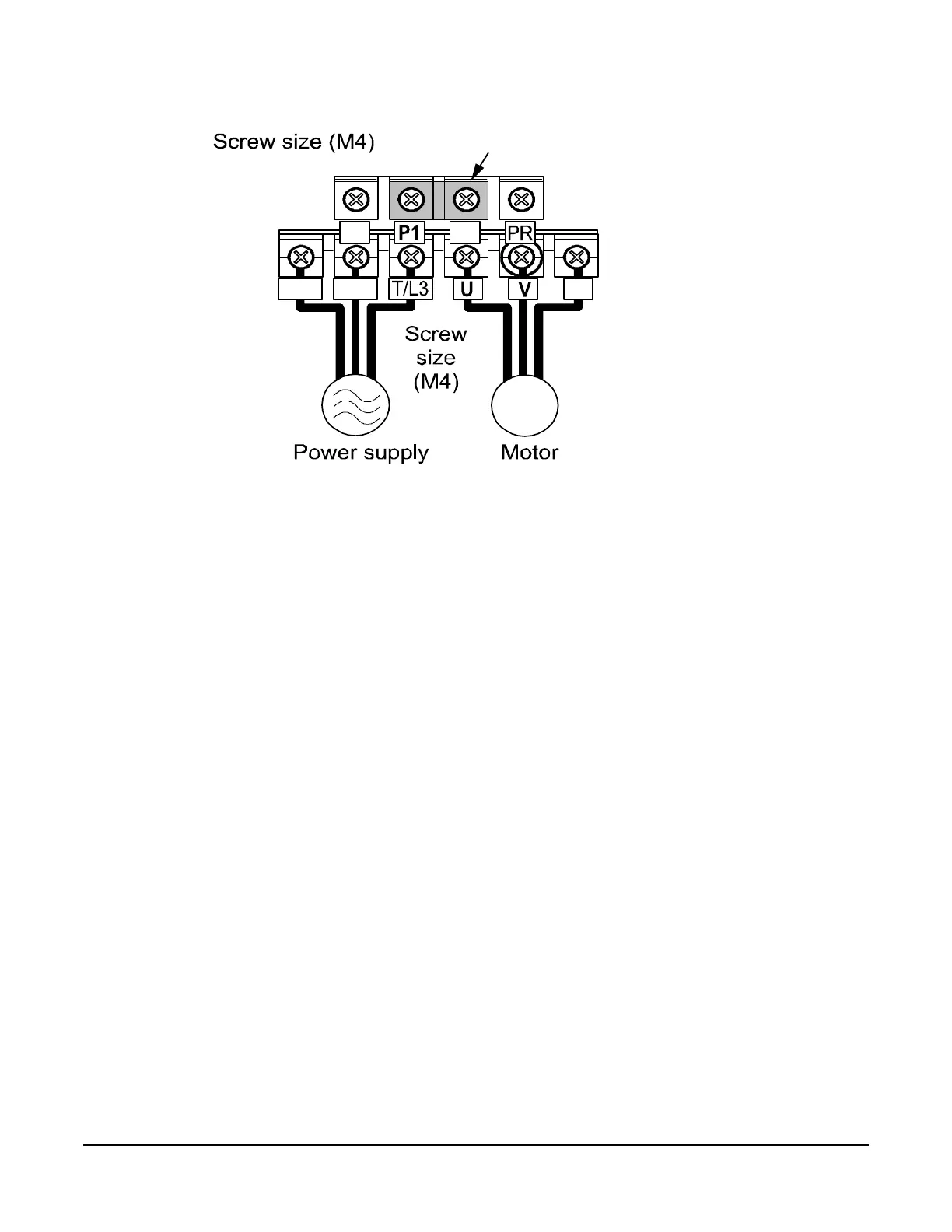

Figure 10: High-Voltage Terminal Block Wiring
Jumper
IM
N/-
P/+
R/L 1
S/L2
W
