Johnson Controls PENN VFD68 User Manual

VFD68 Variable Frequency Drives (575 VAC)
7
.
Dimensions
Table 4: Dimensions for VFD68Dxx Drives, mm (in.)
VFD Model H H1 W W1 D
VFD68DFM 150 (5-15/16) 138 (5-7/16) 140 (5-1/2) 128 (5-1/16) 136 (5-3/8)
VFD68DGM
VFD68DHM
VFD68DJN 220 (8-11/16) 208 (8-3/16) 148 (5-13/16)
VFD68DKN
VFD68DLN

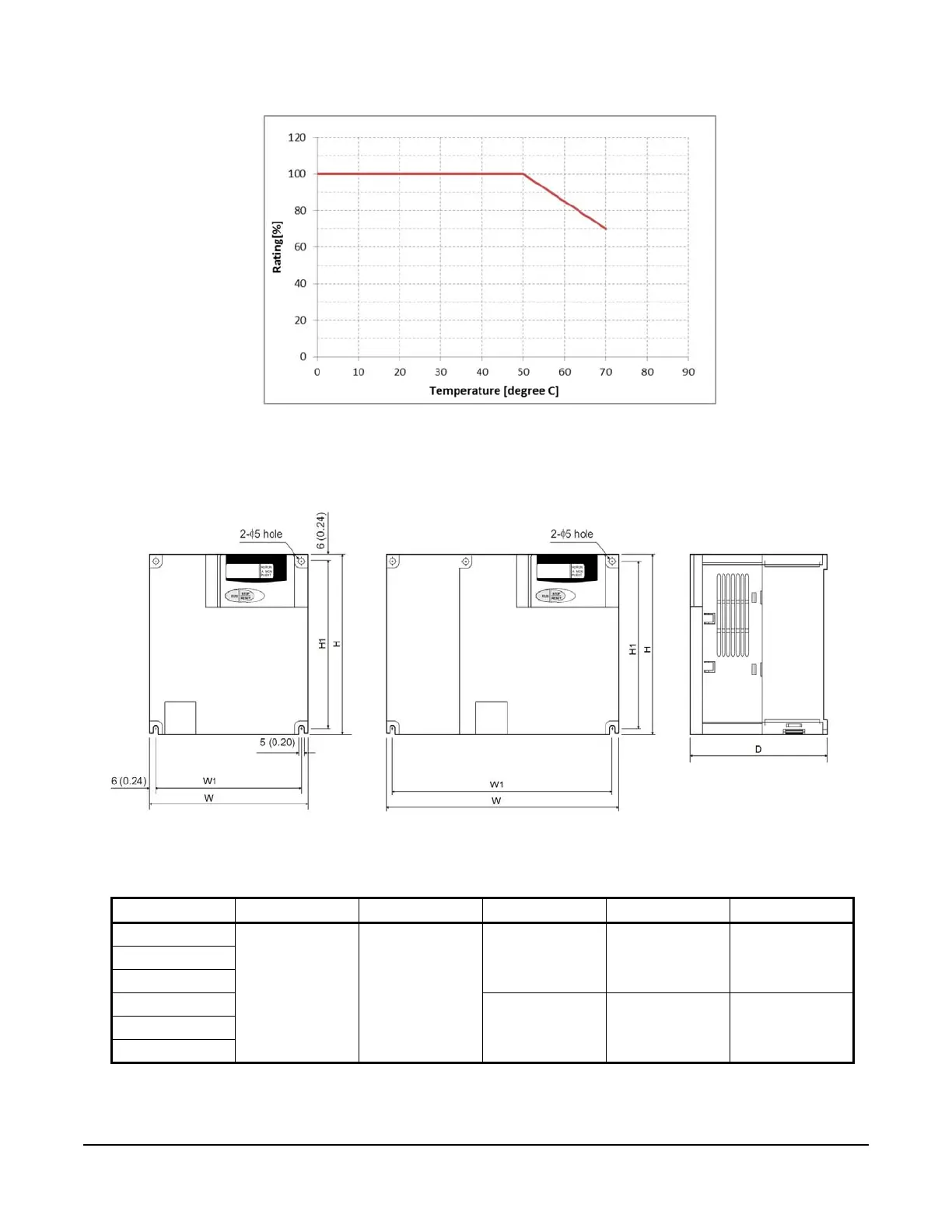

Figure 2: VFD68Dxx Maximum Current Output Derating above 50°C

Figure 3: Dimensions for VFD68Dxx Drives, mm (in.)
