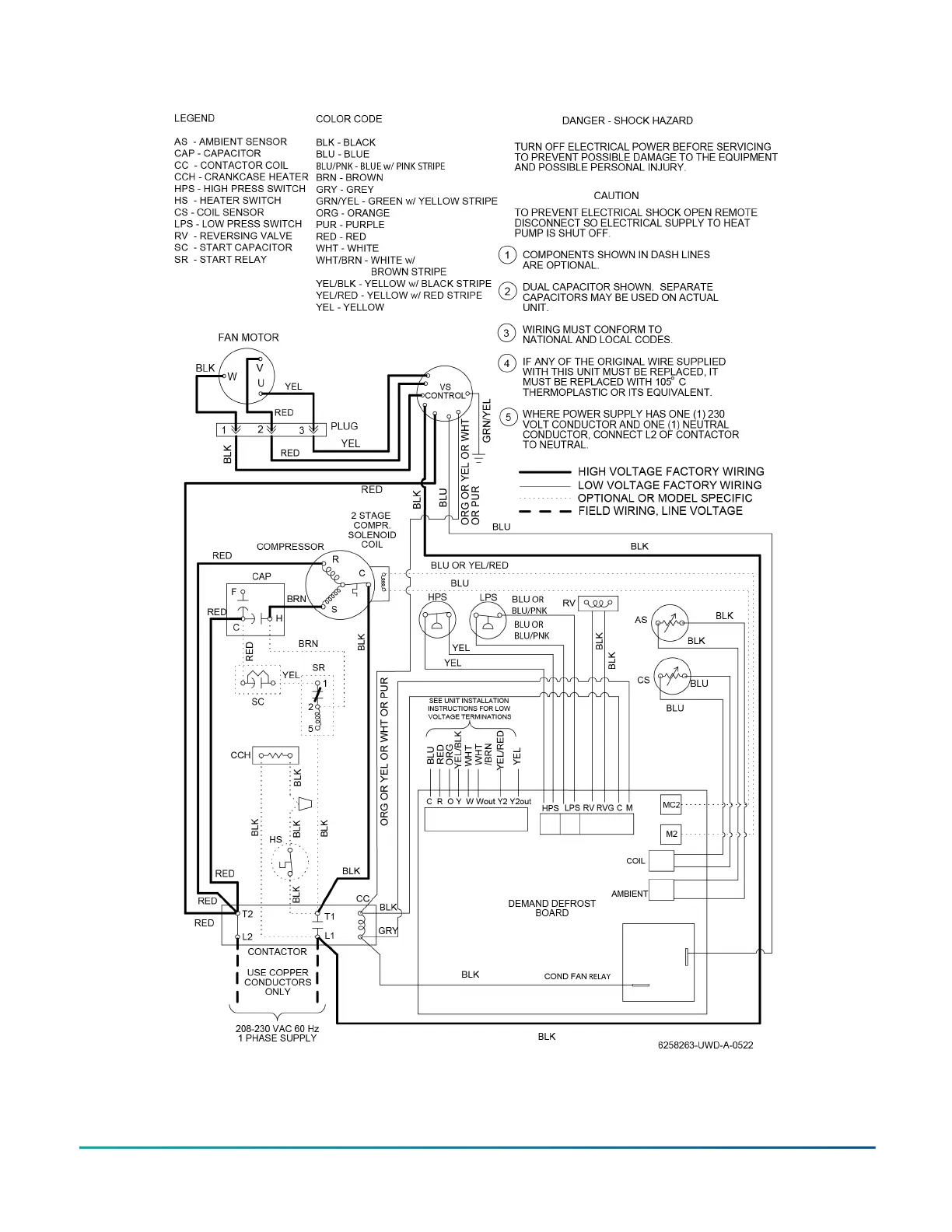

Figure 24: Wiring diagram - single-phase - 208/230V ECM fan motor
Installation Manual: R-410A Outdoor Split-System Heat Pump - YH2F, THF2, RHP150 Series 43
Johnson Controls Ducted Systems
