Physical and connection data
Compressor port locations

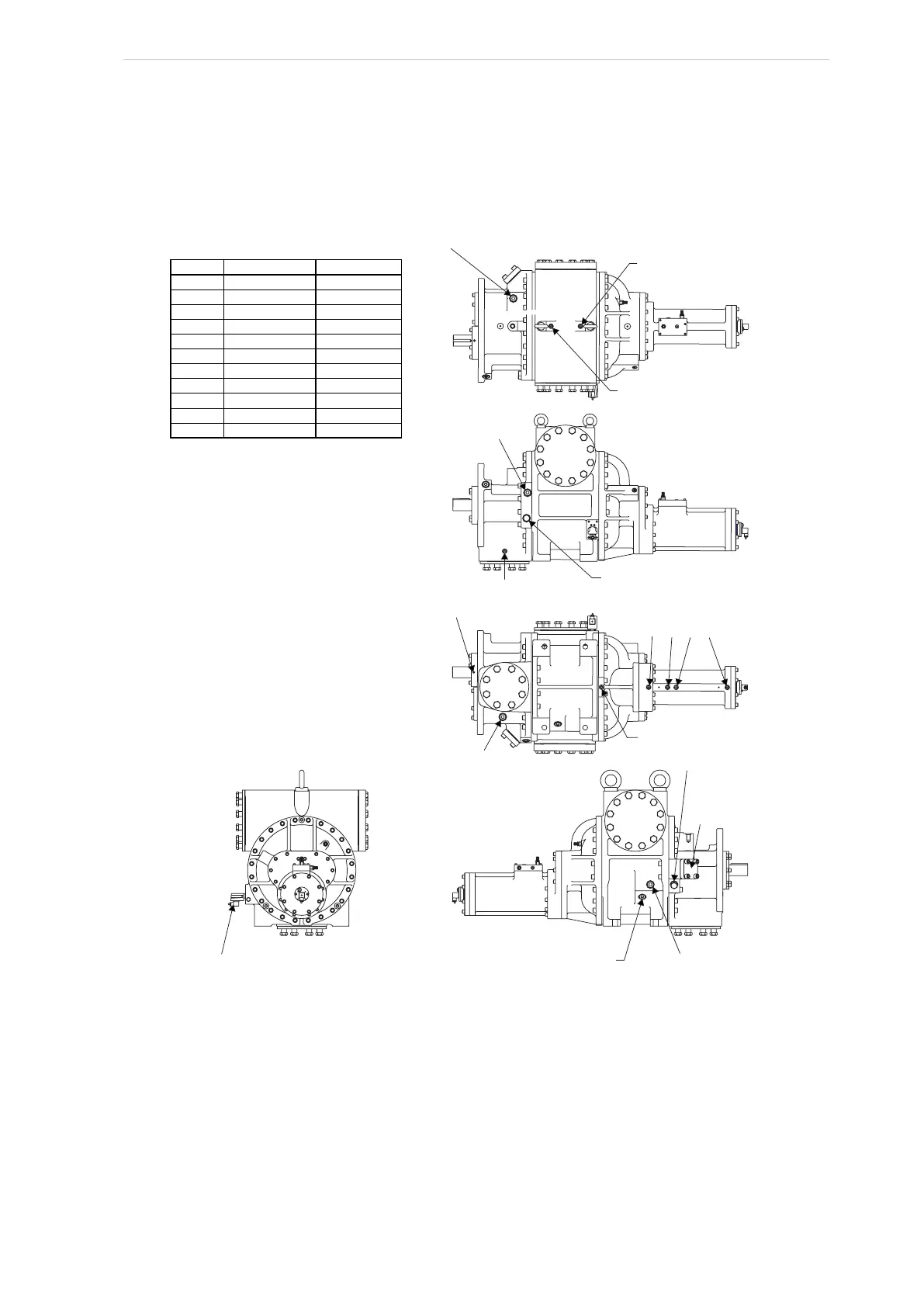

Fig. 58: Compressor port locations, SAB 193 S, L
SC-6: DISCHARGE PRESSURE
SC-7: SEAL WEAPAGE
SL-2: HIGH Vi LIQUID INJECTION
SC-13:
OIL DR
AIN - CYCLINDER
SC-9: INLET HOUSING
OIL DR
AIN
SL-1: LOW Vi
LIQUID INJEC
TION
SV-1: VAPOR
INJEC
TION
SC-8: CLOSED
THREAD DR
AIN
SE-1: ELECTRICAL CONNECTOR
SC-8: CLOSED THREAD DRAIN
SB-3: COMPRESSOR
OIL SUPPL
Y
SC-14: LIQUID
INJEC
TION BLEED
SC-5: INLET
PRESSURE
SD-1: COALESCER BLEED
SM-1: MAIN OIL INJECTION
COMPRESSOR PORT LOCATIONS - SAB 193 S, L (SGC 1913 AND 1918)
PORTTHREAD SIZEO-RING
SB-3
1¹⁄₁₆-12 UN-2B
980A0012K66
SC-59/16-18 UNF-2B980A0012K60
SC-69/16-18 UNF-2B980A0012K60
SC-8
1¹⁄₁₆-12 UN-2B
980A0012K66
SC-99/16-18 UNF-2B980A0012K60
SC-139/16-18 UNF-2B980A0012K60
SC-149/16-18 UNF-2B980A0012K60
SD-1
1¹⁄₁₆-12 UN-2B
980A0012K66
SL-1
1¹⁄₁₆-12 UN-2B
980A0012K66
SL-2
1¹⁄₁₆-12 UN-2B
980A0012K66
SM-1
1¹⁄₁₆-12 UN-2B
980A0012K66
