Physical and connection data
Fig. 59

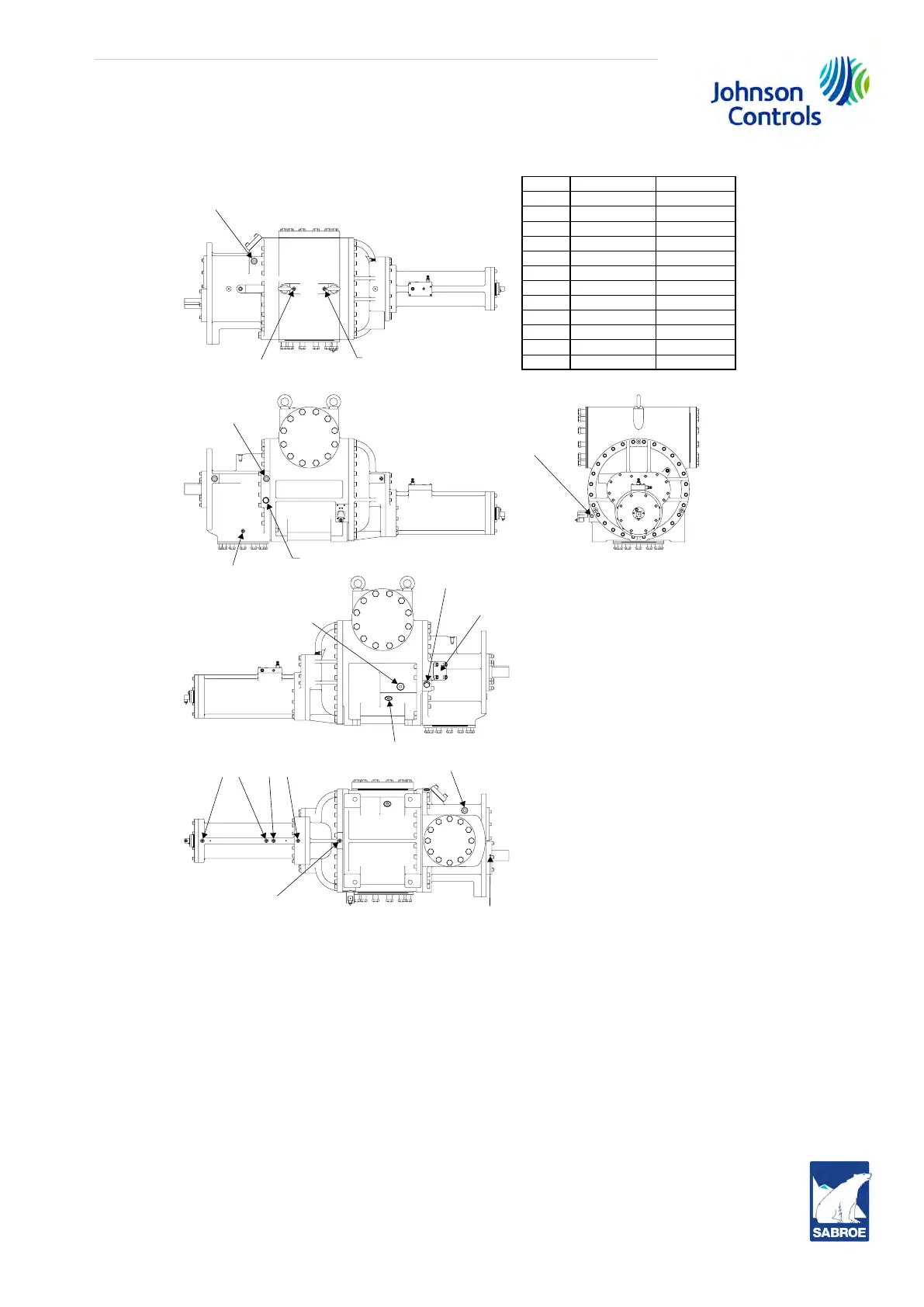

COMPRESSOR PORT LOCATIONS - SAB 233 S, L, E (SGC 2113, 2317 AND 2321)
SD-1: COALESCER BLEED
SC-14: LIQUID INJECTION BLEED
SC-5: INLET PRESSURE
SE-1: ELECTRICAL
C
ONNECTOR
SB-3: COMPRESSOR
OIL SUPPL
Y
SL-2: HIGH Vi LIQUID INJECTION
SC-6: DISCHARGE PRESSURE
SL-1: LOW Vi LIQUID INJECTION
SV-1: VAPOR INJECTION
SC-8: CLOSED THREAD DRAIN
SM-1: MAIN OIL INJECTION
SC-13:
OIL DR
AIN - CYCLINDER
SC-11: CLOSED THREAD DRAIN
SC-9: INLET HOUSING DRAIN
SC-7: SEAL WEAPAGE
PORTTHREAD SIZEO-RING
SB-3
1¹⁄₁₆-12 UN-2B
980A0012K66
SC-59/16-18 UNF-2B980A0012K60
SC-69/16-18 UNF-2B980A0012K60
SC-8
1¹⁄₁₆-12 UN-2B
980A0012K66
SC-99/16-18 UNF-2B980A0012K60
SC-11
1⁵⁄₁₆-12 UN-2B
980A0012K69
SC-139/16-18 UNF-2B980A0012K60
SC-149/16-18 UNF-2B980A0012K60
SD-1
1¹⁄₁₆-12 UN-2B
980A0012K66
SL-1
1¹⁄₁₆-12 UN-2B
980A0012K66
SL-2
1¹⁄₁₆-12 UN-2B
980A0012K66
SM-1
1⁵⁄₁₆-12 UN-2B
980A0012K69
