Johnson Controls T9800-TF21-1JS0 User Manual

T9800
P/N 24-11448-00009 Rev. A Issue Date: 11 2020
T9800-TF20-1JS0

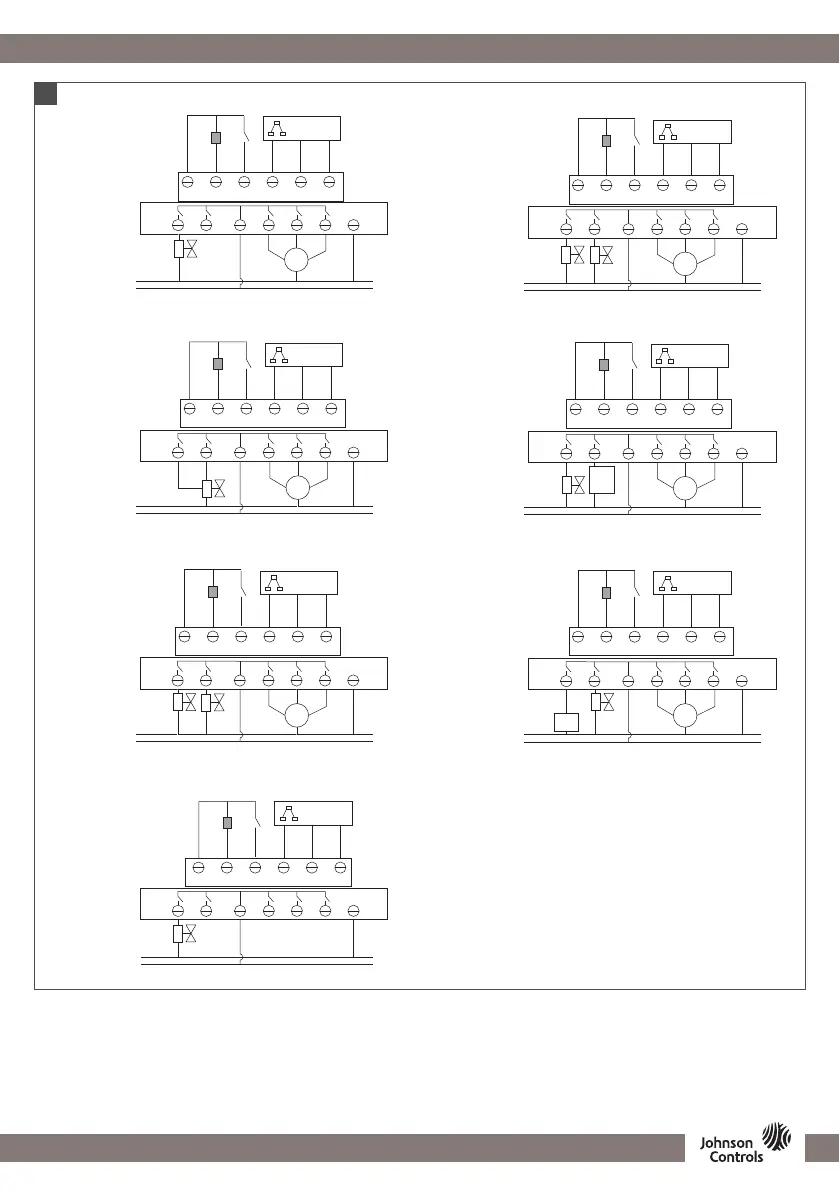

GND
FC BUS
NTC OCC
L
N
L
B ACOM
N
100-240 VAC 50/60Hz
V1
LowHi Med
FAN
2-pipe FCU (relay)
2管制开关阀
Cool/
Heat
V2
L
N
L
N
100-240 VAC 50/60Hz
V2
COOL HEAT
GND
FC BUS
NTC OCC
B ACOM
V1
LowHi Med
FAN
4-pipe FCU (relay)
4管制开关阀
L
N
L
N
100-240 VAC 50/60Hz
ON OFF
GND
FC BUS
NTC OCC
B ACOM
V2
V1
LowHi Med
FAN
2-pipe, 3 wire (relay)
2管制3线开关阀
L
N
L
N
100-240 VAC 50/60Hz
TiO2
ESP
GND
FC BUS
NTC OCC
B ACOM
V2
V1
LowHi Med
FAN
2-pipe FCU (relay)
with TiO2/ESP
2管制开关阀+TiO2/ESP
Cool/
Heat
L
N
L
N
100-240 VAC 50/60Hz
FLOOR
HEAT
GND
FC BUS
NTC OCC
B ACOM
V2
V1
LowHi Med
FAN
2-pipe FCU (relay)
with floor heating
2管制开关阀+地暖
Cool/
Heat
L
N
L
N
100-240 VAC 50/60Hz
RV = REVERSING VALVE CMP = COMPRESSOR
CMP
RV
GND
FC BUS
NTC OCC
B ACOM
V2
V1
LowHi Med
FAN
Water source heat pump
水源热泵
NTC OCC COM
L
N
L
B AGND
N
100-240 VAC 50/60Hz
HEAT
FC BUS
Floor heating/Boiler
地暖/锅炉
V2
V1
English 中文
