Johnson Controls TM9V*MP User Manual

701379-UIM-C-0712
20 Johnson Controls Unitary Products

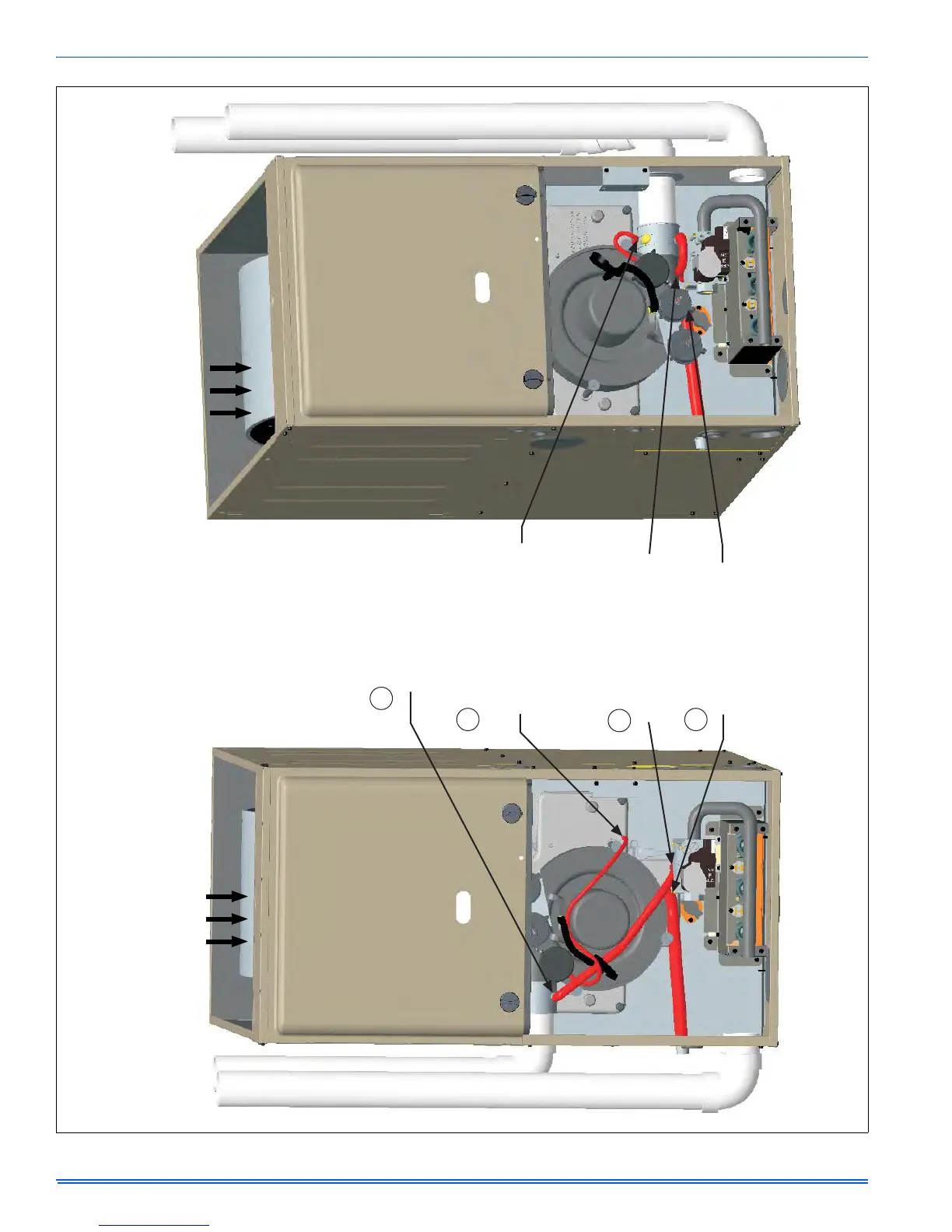

FIGURE 25: Downflow Configuration
AIRFLOW
AIRFLOW
Move rain
gutter hose
to this position.
DOWNFLOW - INDUCER ROTATED
FOR LEFT SIDE VENTING
DOWNFLOW - INDUCER ROTATED
FOR RIGHT SIDE VENTING
Move pressure switch
hose to this position. NOTE: May require
the longer hose that
is provided with
wider cabinets.
Move condensate drain hose to this position (may exit either side of the
cabinet).
Move rain gutter
hose to this position.
When drain hose routing changes are required, be sure to cap all un-used openings.
If rerouting hoses - excess length should be cut off so that no sagging loops will collect and hold condensate, which will cause the furnace to not operate.
1
2
4
3
