Johnson Controls TM9V*MP User Manual

701379-UIM-C-0712
22 Johnson Controls Unitary Products

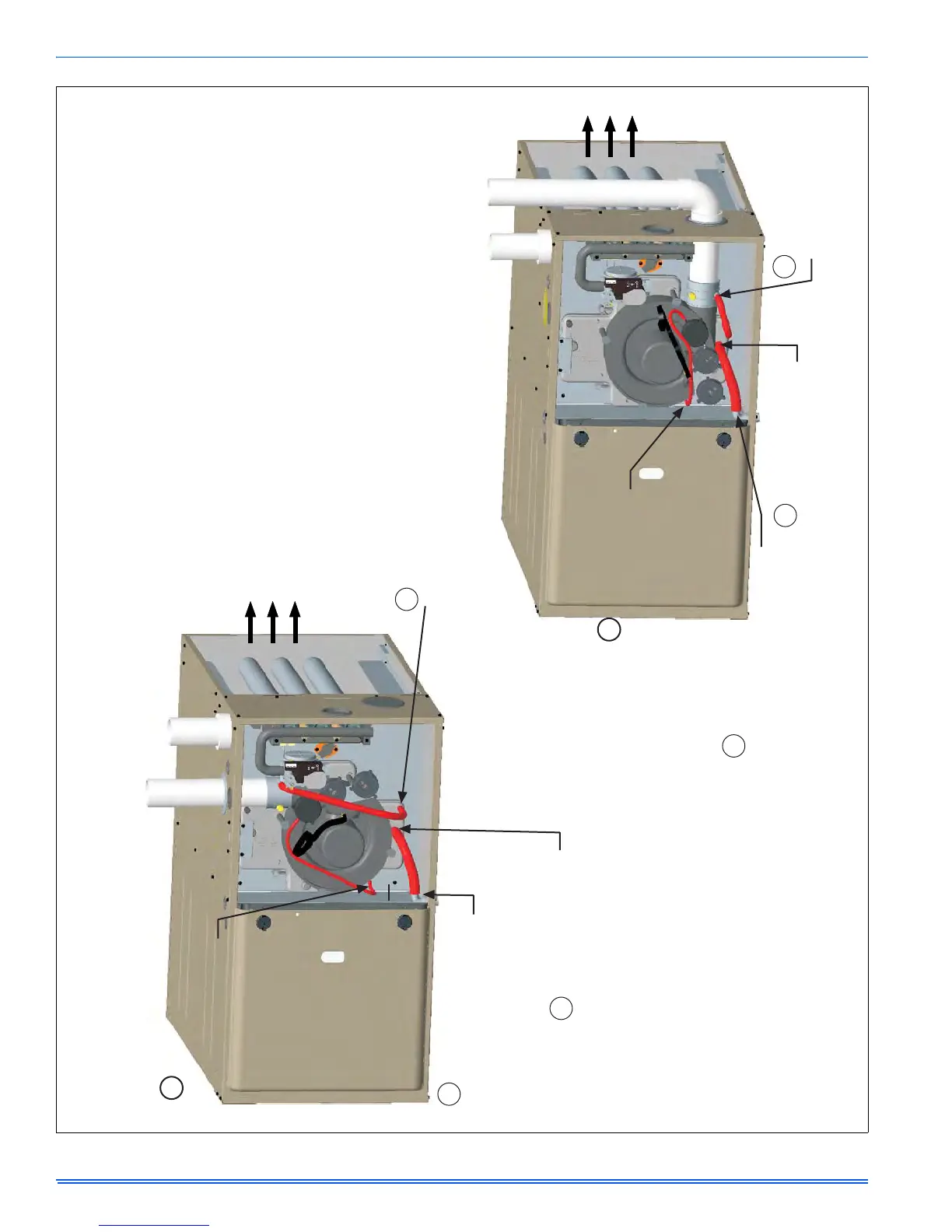

FIGURE 27: Horizontal Right Configuration
AIRFLOW
HORIZONTAL - RIGHT
INDUCER ROTATED
HORIZONTAL - RIGHT
INDUCER AS RECEIVED
Move rain gutter
hose to this position.
Move pressure
switch hose to
this position.
Change condensate drain connection to
the 90° fitting
provided.
Move condensate
drain hose to
this position.
Move rain gutter hose to this position
Change condensate drain
connection to the 90°
fitting provided
Move condensate
drain hose to this position
AIRFLOW
Move pressure switch hose to
this position.
When drain hose routing changes are required, be sure to cap all un-used openings.
If rerouting hoses - excess length should be cut off so that no sagging loops will collect and hold condensate, which will cause the furnace to not operate.
2
3
4
1
1
2
3
4
