Johnson Controls tyco iSTAR Edge G2 User Manual

11
Wet Wiring for a MagLock

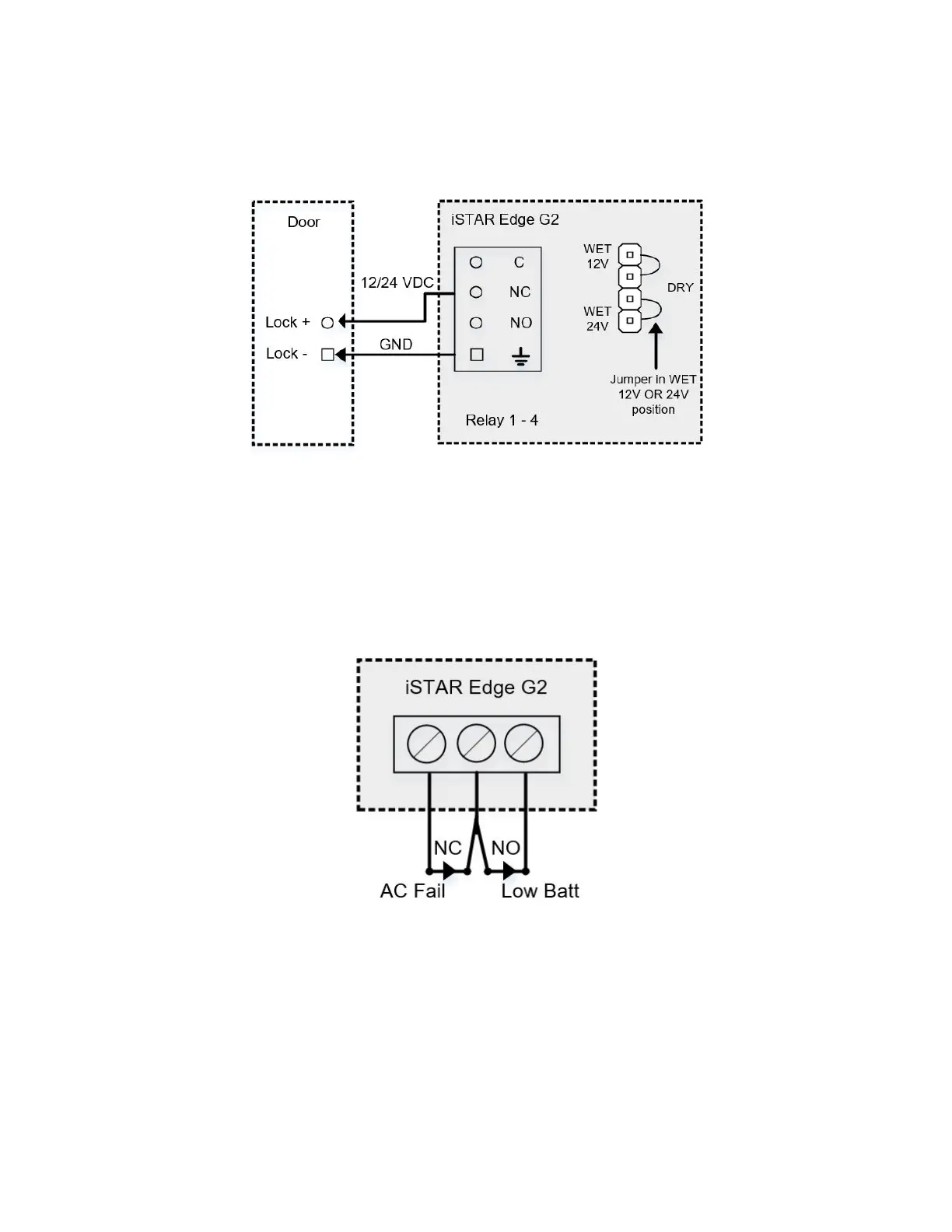

Figure 5:Wet Relay Wiring for MagLock
Figure 5 shows wet wiring for a magnetic lock.
■ GND and NC pins are used for energized magnetic locks.
■ The jumper is in the Wet position.
Wiring for AC Fail / Low Batteries
Figure 6:AC Fail/ Low Battery wiring
Figure 6 shows wiring for AC fail / low battery condition.
■ NC connections share a common GND connection.

Johnson Controls tyco iSTAR Edge G2 Specifications

General

Brand	Johnson Controls
Model	tyco iSTAR Edge G2
Category	Controller
Language	English
